Description

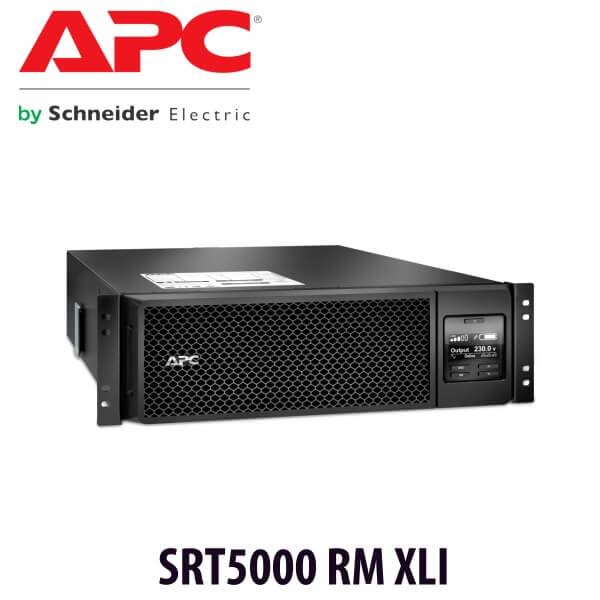

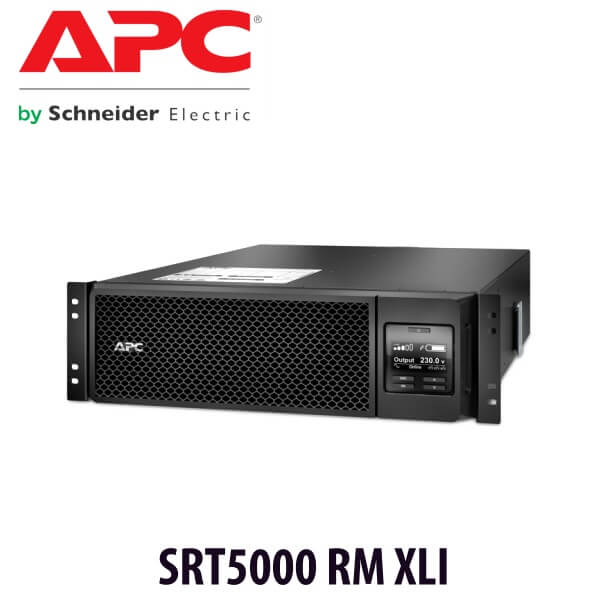

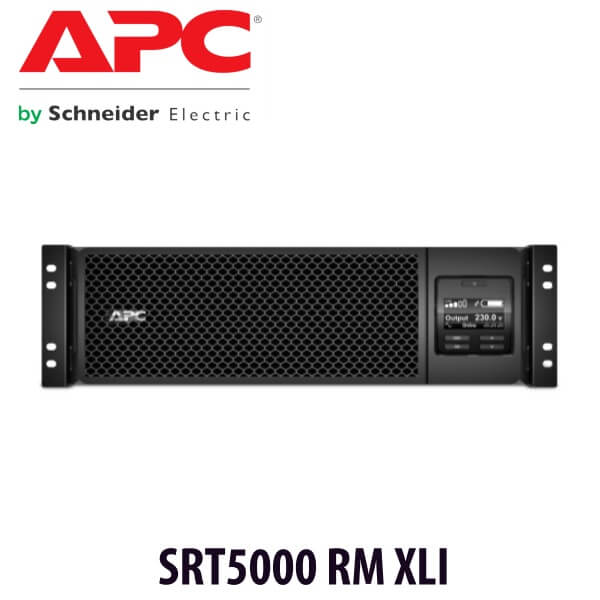

APC SRT5000 RM XLI Smart-UPS Kenya

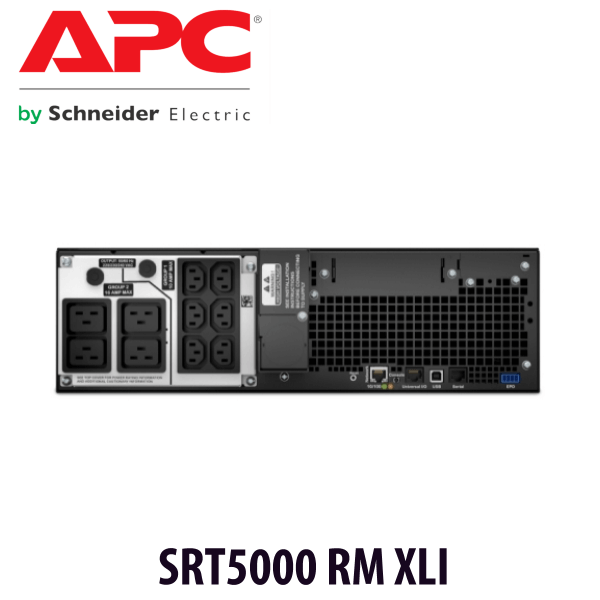

APC SRT5000 RM XLI Smart-UPS Kenya is rackmount w/kit, 6x IEC 60320 C13 & 2x IEC Jumpers & 4x IEC 60320 C19 outlets. It is a high density, double-conversion on-line power protection with scalable runtime. Providing low operating and maintenance costs with proven reliability and intelligent battery management. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

APC SRT5000 RM XLI Smart-UPS Kenya provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Avoids costly power problems by keeping your IT equipment and data protected and available. APC SRT5000 RM XLI boasts of network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events. APC SRT5000 RM XLI Smart-UPS is remote/network accessibility. Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Key Features

Battery failure notification

APC SRT5000 RM XLI Smart-UPS Kenya provides early-warning fault analysis on batteries enabling timely preventive maintenance

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Battery failure notification

APC SRT5000 RM XLI Smart-UPS Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Rack/Tower convertible

APC SRT5000 RM XLI Smart-UPS protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

APC SRT5000 RM XLI Smart-UPS ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Automatic restart of loads after UPS shutdown

APC SRT5000 RM XLI Smart-UPS automatically starts up the connected equipment upon the return of utility power.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Intelligent battery management

APC SRT5000 RM XLI Smart-UPS maximizes battery performance, life, and reliability through intelligent, precision charging.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

APC SRT5000 RM XLI Smart-UPS Kenya provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Cold-start capable

APC SRT5000 RM XLI Smart-UPS provides temporary battery power when the utility power is out.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Predictive failure notification.

APC SRT5000 RM XLI Smart-UPS Kenya provides early-warning fault analysis ensuring proactive component replacement.

Automatic self-test

APC SRT5000 RM XLI Smart-UPS automatically provides periodic battery self-test ensures early detection of a battery that needs to be replaced.

Technical Specifications

Output

Max Configurable Power (Watts) : 4.5kWatts / 5.0kVA
Output Voltage Distortion : Less than 2 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220 V, 240 V
Load Crest Factor : 3: 1
Topology : Double conversion online
Waveform type : Sine wave
Bypass : Internal bypass (automatic and manual)

Input

Input frequency : 40 – 70 Hz Auto-sensing
Input voltage range for main operations : 100 – 275 Adjustable (half load) V
Other Input Voltages : 220 V, 240 V

Batteries & Runtime

Battery type : Lead-acid battery
Included Battery Modules : 2
Typical recharge time : 1.5hour(s)
Nominal Battery Voltage : 192 V
Expected Battery Life (years) : 3 – 5
RBC Quantity : 1
Battery Charge Power (Watts) : 560 Watts
Extendable Run Time : 1

Communications & Management

Interface Port(s) : RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) : Yes
Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

Surge energy rating : 480Joules

Physical

Maximum Height : 432MM, 43.2CM
Maximum Width : 130MM, 13.0CM
Maximum Depth : 719MM, 71.94CM
Net Weight : 54.43KG
Shipping Weight : 63.6KG
Shipping Height : 330MM, 33.0CM
Shipping Width : 610MM, 61.0CM
Shipping Depth : 960MM, 96.0CM
Color : Black
Units per Pallet : 6.0

Environmental

Operating Temperature : 0 – 40 °C
Operating Relative Humidity : 0 – 95 (Non-condensing) %
Operating Elevation : 0 – 3048meters
Storage Temperature : -15 – 45 °C
Storage Relative Humidity : 0 – 95 (Non-condensing) %
Storage Elevation : 0 – 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 931.0BTU/hr
Protection Class : IP20

Conformance

Approvals : CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
