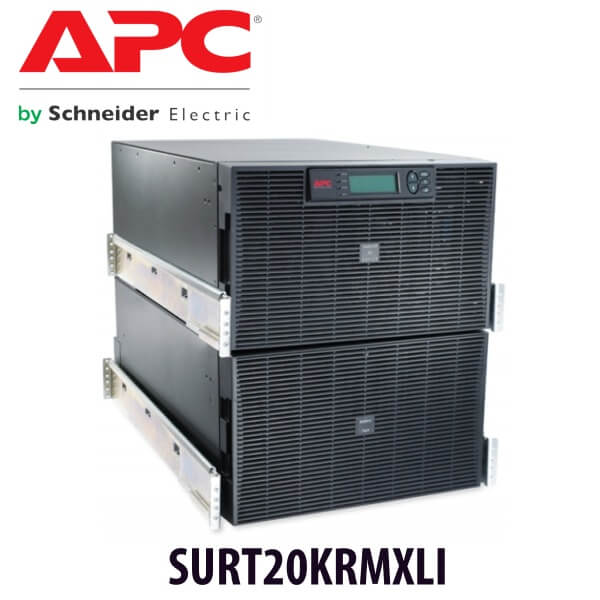

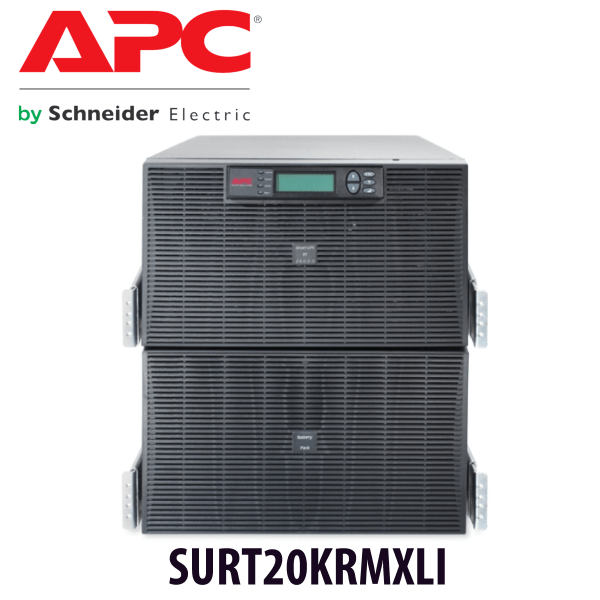

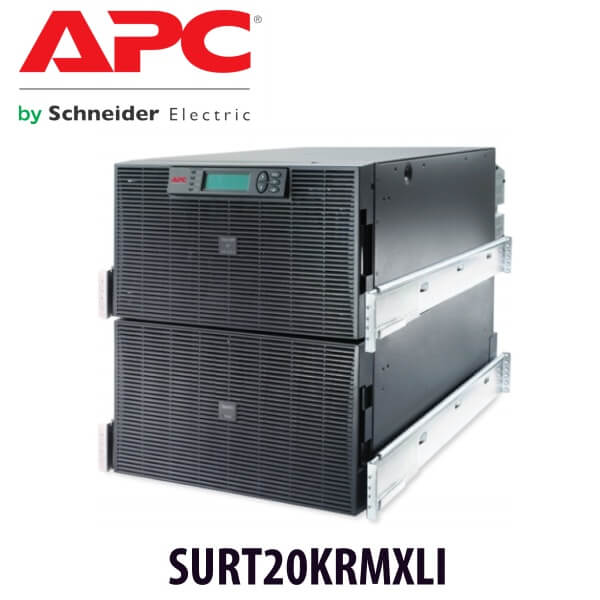

APC SURT20KRMXLI Kenya

APC SURT20KRMXLI Smart-UPS Kenya provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. It is safety agency tested and approved

Add to quote

Description

APC SURT20KRMXLI Smart-UPS Kenya

APC SURT20KRMXLI Smart-UPS Kenya provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Avoids costly power problems by keeping your IT equipment and data protected and available. Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.

The APC SURT20KRMXLI Smart-UPS Kenya is intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. APC SURT20KRMXLI Smart-UPS Kenya network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Key Features

Dual mains input

APC SURT20KRMXLI Smart-UPS increases availability by allowing the UPS to be connected to two separate power sources.

LCD display

APC SURT20KRMXLI Smart-UPS has Alpha-Numeric Display which displays system parameters and alarms.

Manageable external batteries

Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

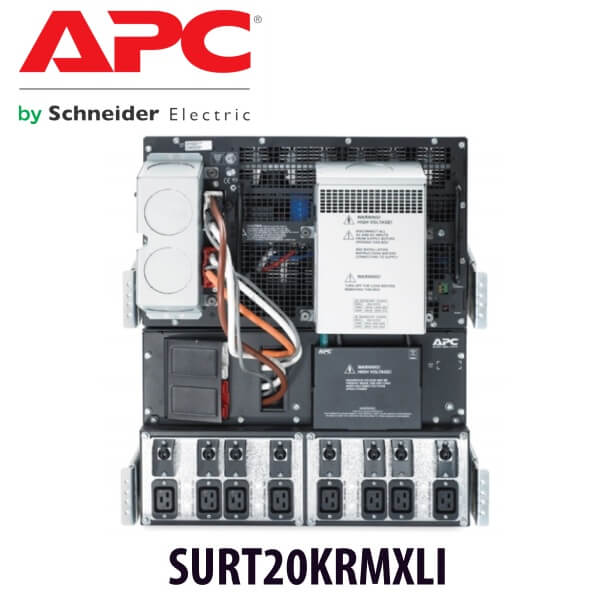

Removable input/output wiring tray

Allows quick and easy installation and maintenance of the UPS.

Single or three-phase input wireable

APC SURT20KRMXLI Smart-UPS provides flexibility for the UPS to be installed using either single or three-phase input wiring.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Cold-start capable

APC SURT20KRMXLI Smart-UPS provides temporary battery power when the utility power is out.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning

APC SURT20KRMXLI Smart-UPS protects connected loads from surges, spikes, lightning, and other power disturbances.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Technical Specifications

Output

Max Configurable Power (Watts) : 16.0kWatts / 20.0kVA
Output Voltage Note : Configurable for 400 or 415 V 3 Phase nominal output voltage
Output Voltage Distortion : Less than 5 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains
Other Output Voltages : 220 V, 240 V
Load Crest Factor : 3: 1
Topology : Double conversion online
Waveform type : Sine wave
Overload Operation : 60 seconds at 125% and 30 seconds at 150%
Bypass : Built-in static bypass, Internal bypass (automatic and manual), Optional external bypass
