Description

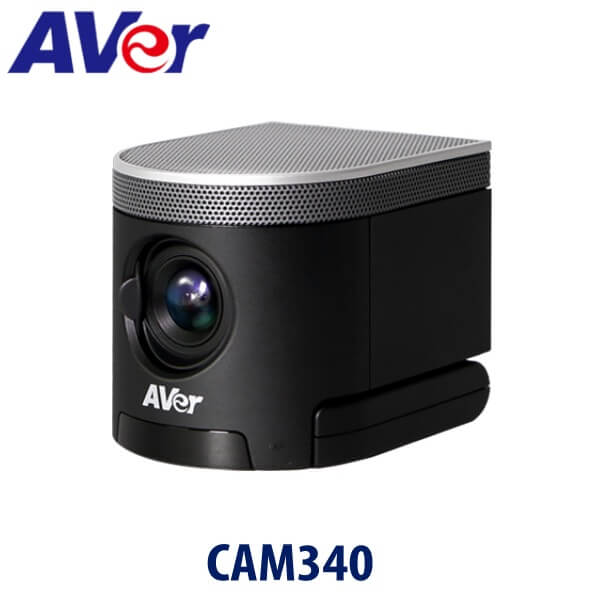

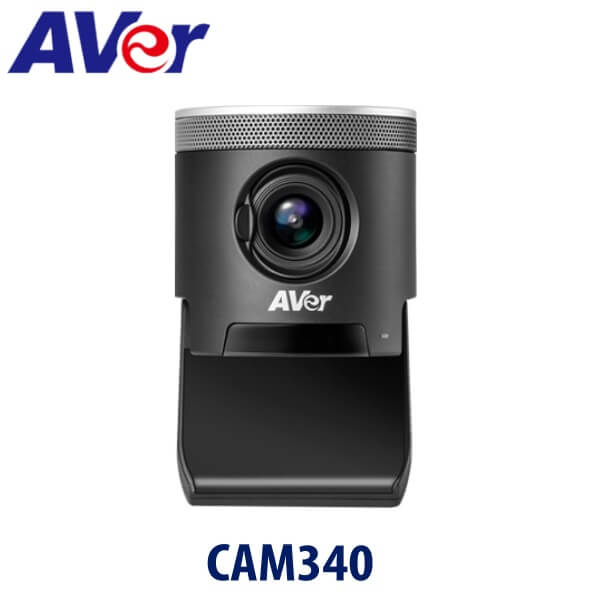

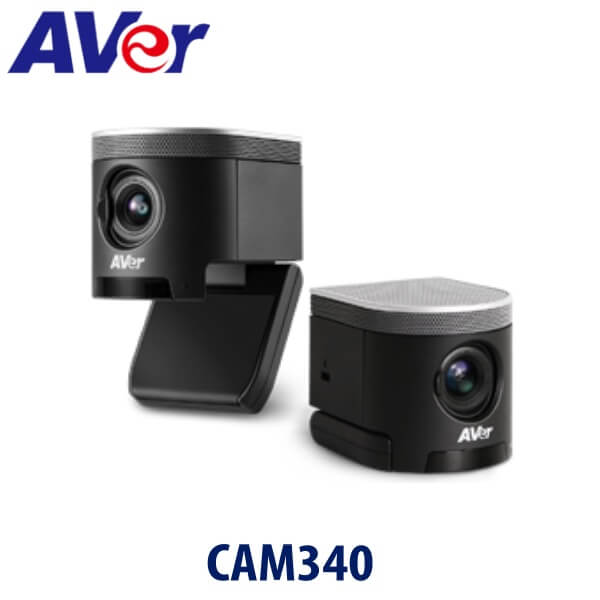

Aver CAM340 Kenya

The Aver CAM340 USB Kenya is an affordable, professional-grade USB conference system optimized to deliver a next generation video communication experience. It is compatible with all of your favorite applications connecting to virtually any desktop or laptop, via a single USB cable. The CAM340 USB 3.0 Ultra HD 4K Huddle Room Camera is designed for huddles and small conference rooms. It records up to 4K UHD video at 25 fps using a 3.37mm lens with an aperture of f/2.8. Aver CAM340 USB Kenya supports a diagonal field of view of 94°, a horizontal field of view of 85°, and a vertical field of view of 55°. It has a minimum working distance of 31.5″ and is compatible with applications connecting to any desktop or laptop, via a single USB cable. It features a unidirectional microphone with a frequency response of 100 to 12 kHz. A USB Type-C port, a DC jack for power adapter, and a 3.5mm audio jack for line output are featured as well. This camera includes a 6′ USB Type-C to Type-A cable, a USB Type-A to Type-C adapter, and a power adapter for USB 2.0.

Key Features

• Cutting Edge 4K Ultra HD
  • The CAM340 boasts of Sony™ high quality sensor and multi-lens glass that allow you have the sharpest video you can find. The features ensure image processing engine allows for natural, vividly colored details to be displayed even under challenging lighting conditions and very low latency. The CAM340 uses high quality sensors and multi-lens glass to produce the sharpest and most accurate color ever.
• Fit Everyone/94°wide viewing angle
  • Aver CAM340 USB camera ensures the whole meeting room is framed perfect leaving no details. CAM340 boasts of the widest possible field of view with zero distortion. Perfect for the growing huddle room environments where attendees are closer to the lens but sit on the edge or outside of normal cameras field of view. You can therefore, obtain ultra-wide field of view video conferencing in your meeting room with a performance-quality multi-glass lens with deep focus at a staggering 94° super high resolution allowing everyone at the table and whiteboard to be in perfect focus all at the same time, with minimal distortion.
• Amazing Zoom Pan, Tilt, and Zoom Like 4X Optical Zoom Camera
  • The Aver CAM340 USB Kenya is packed with an ultra 4Kto allow zoom in up to 4x* as it if were a traditional optical camera. Missing no details you can zoom in and move around , no moving part, no quality lost likes typical digital zoom because this is 4K. Just similar to 4x optical zoom performance when outputs 960×540. When cropping beyond sensor pixels, digital zoom applied. Pan and tilt only available when zoom in. 4K or 60 fps don’t support ePTZ.
• High Quality
  • No matter if you are in low or bright light, natural or fluorescent, or have multiple types of lighting AVer’s CAM340 white balance and exposure will provide you with accurate color to its fullest.
• Easy Plug-and-Play For Any App
  • Aver CAM340 USB Kenya is easy to set up. This conference communication system is compatible with all of your favorite applications connecting you to virtually any desktop or laptop, via a single USB cable. Also it is easy to install hence no installation costs, no power cable is needed as the USB.0 port provide an option for charging your camera and no extra mounting is required. Have the freedom to use the tools of your trade and as long as you have a USB3.0 port which is widely compatible.
• In-built microphone
  • Aver CAM340 USB is equipped with high quality uni-directional microphone built-in on top of the camera with a frequency response of 100 to 12 kHz. The microphone can easily pick up your conversation in your huddle room environments while at the same time suppressing noise behind the TV to allow quality clear audios.

Technical Specifications

• Package contents

  • USB3.0 4K camera
  • Power adapter (for USB 2.0 usage)
  • USB3.0 type-C to type-A (6ft) cable
  • USB3.0 type-A to type-C adapter
  • Quick guide

• Camera

  • Sensor: 1/2.5″ Sony Exmor R™ 4K CMOS sensor
  • Frame rate: 4K 25fps; 1080p, 720p, 960×540, 848×480, 640×480, 640×360, 424×240, 320×240, 320×180 at 60, 30, 15 fps
  • Lens iris, focus, zoom: fixed
  • AE, white balance: auto, manual override by PTZApp
  • Lens focal length: 3.37 mm +/- 5%
  • Lens F#: 2.8
  • Field of view: diagonal 94°, horizontal 85°, vertical 55°
  • S/N ratio: > 50dB
  • Minimal illumination: 1.4 lx (50 IRE, F2.8, shutter 1/30)
  • 2D noise reduction
  • Back light compensation
  • Minimum working distance: 80cm

• Zoom, pan and tilt movement

  • Zoom: up to 4X leveraging 4K sensor (not available in 4K or 60 fps)
  • Pan and tilt: when zoom in leveraging 4K sensor

• Microphone

  • 1 uni-directional microphones
  • Frequency response: 100~12K Hz
  • Sensitivity: -37dB

• Connectors

  • USB type-C connector
  • DC jack for power adapter (for USB2.0 connection)
  • 3.5mm audio jack for line output
  • Reset button

• Video format

  • YUV and MJPEG

• USB

  • 2.0, 3.0, type-C
  • UVC (USB Video Class) 1.1
  • UAC (USB Audio Class) 1.0

• Control

  • UVC
  • PTZApp
  • Optional IR remote control (compatible with CAM520/VC520 remote control)

• Security and mount

  • Built-in TV mount (above TV, up to 46mm deep)
  • Kensington slot
  • 1/4″ tripod mounting screw
