Description

Aver CAM520 Pro2 Kenya

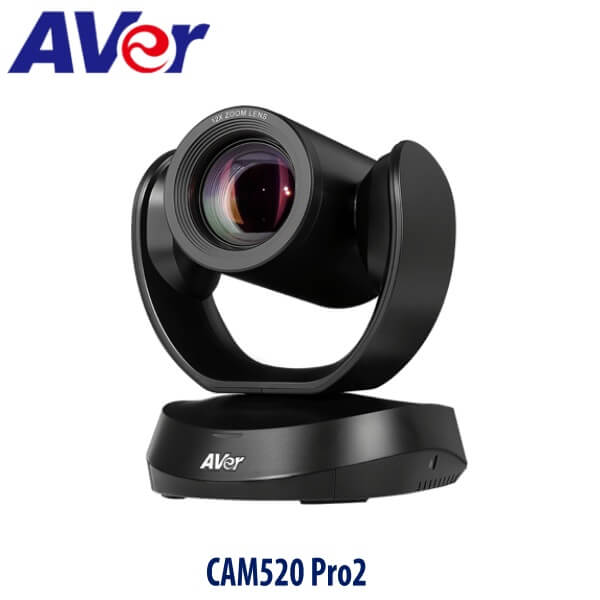

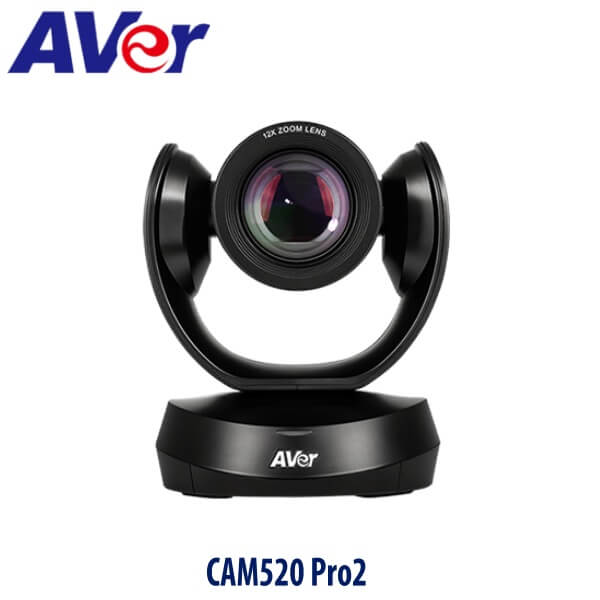

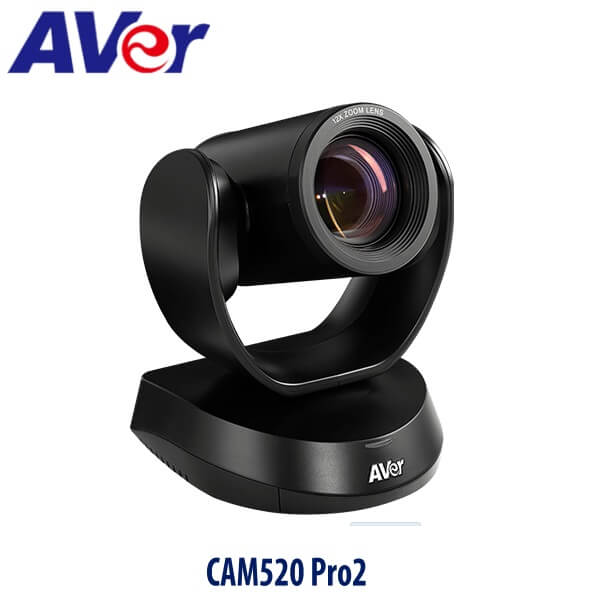

The AVer CAM520 Pro2 Kenya is an industry-leading conferencing camera designed for medium to large conference rooms. The AVer CAM520 Pro2 features high-quality sensors, multi-lens glass, an 84.5° angle of view, autofocus, and backlight compensation, as well as mirror, flip, auto-exposure, and 12x optical zoom (18x combined optical and digital zoom) to clearly capture documents and faces. Making meetings a breeze with agile features like 18X total zoom. Take your video conferencing experience to the next level with innovative features including improved AVer SmartFrame, Sony True WDR, IP video streaming, and a PoE+ port. AVer CAM520 Pro2 Kenya is easy to use with a plug-and-play operation, it quickly connects virtually to any Windows, Mac, or Chromebook desktop or laptop computer via a single USB cable, so you can get started right away as you also stream to a variety of internet services using its LAN port. It captures up to 1080p60 video using its 2MP 1/2.8″ Sony Exmor sensor. The CAM520 Pro2 Kenya can be powered by either the included power supply or via PoE+ on a supported network. Place it on top of the table or permanently mounted on a wall using the included bracket. A standard 1/4″-20 threaded screw hole allows you to mount the camera on a tripod or bracket. There is a Kensington slot to lock the unit and prevent its unauthorized removal from your conference room.

Key Features

• Intelligently present every detail
  • AVer CAM520 Pro2 Kenya present in ultimate clarity for an engaging and natural meeting experience. This Aver offer effortless presentations with no remote by utilizing SmartFrame which automatically shifts the camera’s focus and follows the presenter throughout each saved zone. Stream and record vibrant videos in full HD 1080p video at 60fps via USB 3.1 streaming or RTSP/RTMP H.264 broadcasting.
• Enterprise-grade video with 18X zoom (12X optical + 6X digital)
  • AVer CAM520 Pro2 Kenya capture even the smallest details with 18X total zoom (12X optical), so no details are missed. It is Optimized for professional-quality video calls, and brings brilliantly sharp, detailed video to any collaboration space. Zoom in on whiteboard content, documents, or people at an 84° FOV up to 60 feet away without any distortion.
• Improved SmartFrame technology
  • AVer CAM520 Pro2 Kenya boasts of a SmartFrame technology which automatically shifts the camera’s focus and follows the presenter throughout each saved zone. Next-generation facial and body detection ensures that everyone is visible on the screen up to 10 meters away, even with masks on.
• Enhanced camera management
  • AVer CAM520 Pro2 Kenya has enhanced management features, you’ll never have to walk to the other side of campus to operate the camera Manage your devices with PoE+ connectivity for power, USB virtualization, and web-based management.
• Custom control integrations
  • The CAM520 Pro2 offers built-in advanced integration capabilities, perfect for a controlled environment to allow users to connect the CAM520 Pro2 via RS232 or Visca over IP to joystick controllers and control systems. The CAM520 is compatible with all your favorite communication apps, including Teams, Skype, BlueJeans, Cisco WebEx, Google Hangouts, and more, and with all cloud services that support RTSP/RTMP streaming.

Specifications

• Camera

  • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • Innovative Preset Framing: Follow presenter based on preset areas
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Field of view(D/H/V):84.5°/76°/48°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot
  • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

• Motorized Pan & Tilt Movement

  • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan/tilt movement

• Video Format

  • YUV, YUY2, MJPEG, NV12
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• Connectivity

  • 12V/2A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
  • USB 3.1 type-B connector
  • IP (RJ45)

• USB

  • 3.1 Gen1 Type B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1

• Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug and play
  • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
  • PTZApp 2
