Description

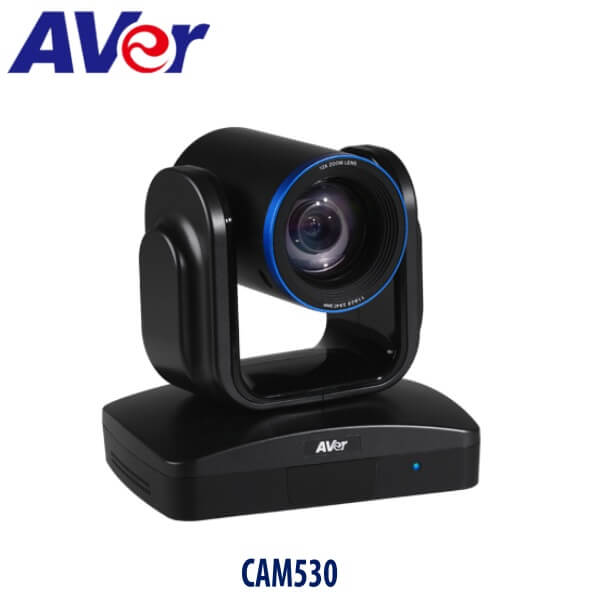

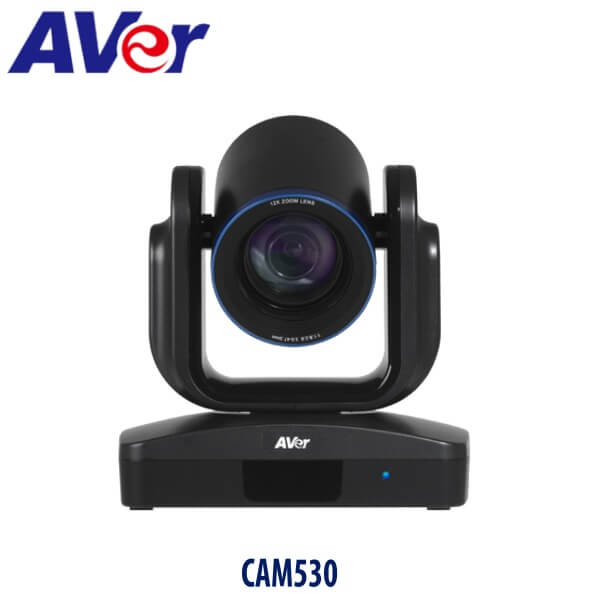

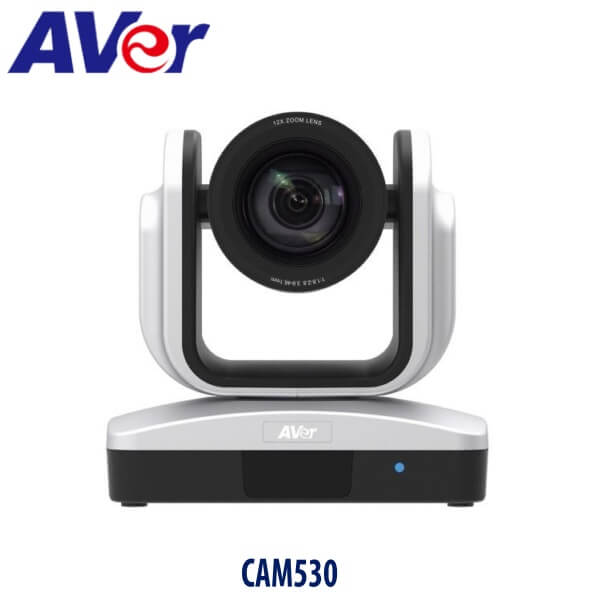

Aver CAM530 Camera Kenya

Aver CAM530 Camera Kenya is a USB Plug-and-Play, HDMI, and Professional Unified Communications Camera for All Kinds of Businesses. The AVer Cam520 is designed to meet the unified communications and collaboration needs of a variety of businesses. The Aver CAM530 is widely compatible and ideal for numerous applications and integration with other equipment, their full HD 1080p 60fps capability, 12X optical zoom, USB and HDMI connections ensure high-quality real-time communication whether in conference rooms or industrial environments. Moreover, Aver CAM530 provides a USB connection of both a USB and HDMI connection, perfect for software- or cloud-based video collaboration and other applications requiring high quality video. The AVer CAM530 18X PTZ Camera is designed to meet the collaboration needs of a variety of organizations.

Key Features

• Full HD 1080p 60fps Resolution
  • Aver CAM530 Camera Kenya is equipped with full 1080p High Definition allowing you to enjoy the highest resolution available for your video conferencing and video collaboration calls. This Full HD 1080p 60fps has never felt more lifelike such that even in poor lighting you can enjoy detailed, crystal-clear views of people and objects at the far site, and motion blur is nonexistent.
• True 12X Optical Zoom PTZ Camera
  • Aver CAM530 Camera is equipped with one of the fastest and smoothest true 12X optical zoom 72.5° wide angle camera available, multi-element, multi-coating auto-focus optics, and 12X true optical zoom delivers rapid and smooth pan, tilt and zoom-in performance to capture the smallest details with absolute clarity at every focal length.
• Up to 10 Camera Presets
  • The Aver CAM530 USB camera allows you to customize your meetings by storing up to 100 PTZ presets by RS232 VUSCA or UVC. These 10 Camera preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room.
• Simply Plug and Play
  • Aver CAM530 is simple to install, simply plug the Cam530’s USB connector into a desktop or laptop, and you’re ready to get started With no need for device drivers, the camera is able to provide top-quality video images at any time.
• HDMI and USB simultaneous output
  • With advanced integration capabilities built into the CAM530 camera, including an RS232 cable and VISCA support, the system can easily be integrated into a controlled environment allowing users to operate and manage the CAM530 through an AV control panel. View simultaneously your USB video recording or steaming with HDMI output

Specifications

• Package contents

  • Camera
  • Remote control
  • 5m Micro USB 2.0 Type-B to Type-A cable
  • Power supply
  • Quick-start guide
  • Tabletop/wall/ceiling mount
  • 6.35mm tripod mounting screw
  • Velcro
  • 3m HDMI cable
  • RS232 adapter

• Camera

  • Full HD 1080p 60fps
  • Pan: ±130°; 0.45° step
  • Tilt: +90°/-25°; 0.25° step
  • Field of view (H): 72.5° (wide) ~ 6.3° (tele)
  • Sensor: 1/2.8 low lux CMOS 2M pixel
  • Resolution: full HD 1080p (1920×1080), HD 720p (1280×720), PAL (1024×576), VGA (640×480), QVGA (320×240), QQVGA (160×120) at 60fps, 30fps and 15fps
  • Scan: progressive
  • Zoom: 18X total zoom (12X optical zoom)
  • Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Auto Iris
  • S/N ratio: >50dB
  • Minimum illumination: 1 lx (50 IRE, F1.6, shutter 1/30)
  • 2D and 3D denoise
  • Backlight compensation
  • Flip, mirror
  • Minimum working distance: 1.5 meter
  • Include table/wall/ceiling mount
  • Kensington slot

• Remote control

  • IR (Infrared)
  • 10 camera presets (100 presets via VISCA)

• System requirements*

  • Windows^® 7/ 8/8.1/10
  • Mac OS^® X 10.7 or higher
  • Google Chromebook version 29.0.1547.70, Platform 4319.79.0

• Hardware requirements*

  • 2.4 GHz Intel^® Core 2 Duo processor
  • 2 GB RAM or more
  • USB 2.0 port

• Power supply

  • AC 100V ~ 240V
  • Consumption: EIAJ 12, 4A

• Environmental data

  • Physical characteristics: 0~40°C
  • Operation humidity: 20%~80%
  • Storage temperature: -20~60°C
  • Storage humidity: 20%~80%

• Physical characteristics

  • Package dimensions: 370 x 252 x 275mm
  • Package weight: 4.16kg/9.17lbs
  • Camera: 180 x 140 x 182mm/1.5kg
  • Remote control: 200 x 50 x 20mm/0.091kg

• Compliance and tools

  • • YUV, MJPEG, H.264 SVC, AVC (high and base profile)
    • Multi-stream capable
    • USB 2.0
    • UVC (USB Video Class) 1.1 with H.264 extension
    • VISCA via RS232*
    • HDMI 1.3
    • DIP Switch
    • Downloadable diagnostic tool, field firmware upgrade tool, App for advanced features and settings

• PTZAp

  • Free download on Windows® and Mac® computers
  • Compatible with Skype^TM Plugin for answering and hanging up via remote control
  • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

• Warranty

  • 3-year: camera
  • 1-year: accessories

• Compatible applications

  • Skype^™, Skype for Business, V-CUBE, Google Hangouts^™, FaceTime, Cisco^® Webex^®, GoToMeeting, Adobe Connect, BlueJeans, Zoom, Vidyo, Fuze, WebRTC, CyberLink U Meeting^®
