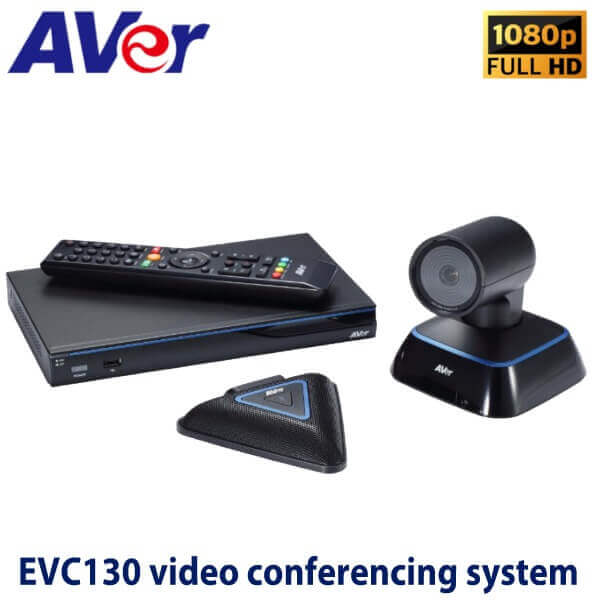

Aver evc130 full HD video conferencing system Nairobi Kenya
The wide-angled Full HD video conferencing camera combines excellent image qualities with rich immersive audio to deliver an out of the world communication experience in small and medium-scale organizations. The AVer EVC130 Full HD Video Conferencing system onboards real-time video conferencing and content sharing, making it the real communication solution for any user. It comes with a wide field of view (88°) and a Full HD resolution, resulting in crisp and clear images. Its excellent compatibility with all major legacy video conferencing brands, including Polycom, Tandberg, and Lifesize, and with cloud services through their H.323 bridges gives you an easy content sharing experience. Aver evc130 full HD video conferencing system comes with VC130 eCam and it has 4X digital zoom.
Aver Evc130 Full Hd Video Conferencing System Kenya
Aver evc130 full HD video conferencing system Features :
THE CONVENIENT HELPeR™ TECHNOLOGY
The High Efficiency Lost Pack Recovery(HELPeR) technology enables you to easily achieve excellent videos when streaming live on your AVer EVC130 Full HD Video Conferencing System, even under the worst and slowest network conditions.
ADVANCED NOISE REDUCTION
AVer has developed its Noise Proof Technology to eliminate background noise and provides noise-free services even in a busy environment. The AVer EVC130 Full HD video conferencing system automatically mutes its microphone when no human voice is detected, and intelligently reduces background noise to a minimum when you are speaking.
CONNECT UP TO 4 – MICROPHONES VIA DAISY CHAIN
The high – performing AVer EVC130 Full HD video conferencing system is equipped with an all-new microphone array and codec which carry out important functions of audio processing such as advanced noise reduction, automatic gain control and echo cancellation, producing crisp and clear sounds.
IMPRESSIVE 10 CAMERA PRESETS
The AVer EVC130 Full HD video conferencing system allows the user to simply program its presets on the remote control ahead of time, and during meetings, they can shift the camera from a wide view of the room to a close-up of an object with just the press button.
4K RESOLUTION
The AVer EVC130 Full HD Video Conferencing System has a cutting edge lense that delivers 4K output and an Ultra High Definition resolution of 1080p at 30 frames per second. Thanks to the onboarded Sony sensor, the device incorporates auto white balance, auto exposure, and autofocus to offer amazing image clarity, wonderful performance, and ease of use.
ARTIFICIAL INTELLIGENCE
AVer’s Artificial Intelligence algorithm enables the AVer EVC130 Full HD Video Conferencing System to detect, focus on, and capture human and moving objects in the conference room. It is so accurate that you are guaranteed sharp subject focus and framing, ensuring that your main targets remain tracked throughout the presentation.
SMART FRAME CAPTURE
The Aver EVC130 Full HD video conferencing system’s SmartFrame technology gives an edge in that it is able to automatically frame and include every participant in the room regardless of their distance from the lens, thanks to its facial recognition algorithm. Its wide 88° field of view allows for 7 – 12 people or more in the room, and the PTZ camera provides flexible motorized ±100° pan and ±12° tilt movement. This ensures a single click transition in moments when the meeting receives new participants or releases some to leave a fewer number.
4× DIGITAL POWER
The AVer EVC130 Full HD Video Conferencing enjoys an impressive zooming power of up to 4× digital zoom. This makes it easy for the user to perform functions like highlighting content and changing shooting angles at random, achieved even when the user is panning or tilting. Now you can boast of amazing PTZ performance with crystal clear video output minus pixilation and motion blur, even when subjects are zoomed in up close.
EASY SETUP
The AVer EVC130 Full HD Video Conferencing System is specifically designed to give users a quick installation as well as an easy operation. The unit plugs effortlessly into other office peripherals and systems, thanks to its Plug – and – Play feature, to give you an unmatched video conferencing luxury. The user is also able to mount the AVer EVC130 Full HD Video Conferencing Camera on different platforms, depending on their preference and choice, from an LCD screen, to a tabletop, while enjoying the flexibility of an adjustable clip.
HANDY INTEGRATION & REMOTE ACCESS TOOLS
You can easily access your AVer EVC130 Full HD video conferencing system remotely and troubleshoot problems using the brilliant AVer’s web-based management tool known as WebTool, and advanced network technology called Wake – On – LAN(WOL), Telnet, Network Test, and HELPeRTM, making the EVC130 Full HD video conferencing system suitable for integration while using LAN or the internet.
MULTIPLE LANGUAGE USER INTERFACE
The Aver EVC130 Full HD Video Conferencing System is built in a very user – friendly manner, supporting the use of 22 different languages including English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, and Vietnamese.
MAXIMUM SECURITY
The AVer EVC130 Full HD Video Conferencing System comes with password protection for system settings and remote system management. Its embedded AES(Advanced Encryption Standard) function (128 – bit) secures your contents, ensuring they are not accessed without your authorization.
Why the AVer EVC130 Full HD video conferencing system?
- Wide compatibility with all major legacy video conferencing brands, including Polycom, Tandberg, and Lifesize, and with cloud services through their H.323 bridges
- Simply pick up the remote and dial into your meeting immediately
- Perfectly suited for small meeting rooms, the EVC130’s 88° FOV ensures everyone in attendance is in focus and onscreen
- Achieve video excellence through smooth audio and video streaming even under the most erratic network conditions with AVer’s High-Efficiency Lost Pack Recovery (HELPeR™) technology
- Secure conferencing since data doesn’t need to go through 3rd party cloud server
- Built-in recording at no extra charge
- Extremely cost-effective
Aver evc130 full HD video conferencing system Specifications :
| Communications | ● H.323, SIP and SIP TLS standards
● 64Kbps~4Mbps ● RJ45 network LAN (10/100/1000) ● Manual bandwidth settings |
| Camera | ● Support for single camera*
● EVC130 eCam Focus: ● fixed focus pan/tilt camera ● 2-megapixel CMOS sensor ● 4X digital zoom ● ±100° pan; ±25° tilt ● Field of view (H): 77° ● Field of view (V): 45° ● Field of view (Diagonal): 88° |
| People video resolutions | ● HD1080p (1920 x 1080), up to 60fps
● HD720p (1280 x 720) ● 480p (848 x 480) ● 4CIF (704 x 576) ● CIF (352 x 288) ● SIF (352 x 240) ● All resolutions at 30fps |
| Content Video resolutions | ● Supported Resolutions:
● WSXGA (1440 x 900) ● HD (1360 x 768) ● SXGA (1280 x 1024) ● SXGA (1280 x 960) ● WXGA (1280 x 800) ● XGA (1024 x 768) ● SVGA (800 x 600) ● VGA (640 x 480) ● Output Resolutions: ● HD720p (1280 x 720) up to 30fps |
| Video standards | ● H.264, H.264 HP, H.264 SVC, H.263 , H.263, H.261
● H.239 dual video streams ● BFCP content sharing |
| Video features | ● 3D denoise |
| Video inputs | ● EVC eCam camera
● VGA |
| Video outputs | ● HDMI × 2
● VGA |
| Audio Standards | ● G.711, G.722, G.722.1, G.728, G722.1C licensed from Polycom® |
| Audio features | ● Automatic gain control (AGC)
● Advanced noise reduction ● Acoustic echo cancellation (AEC) |
| Audio inputs | ● Microphone pickup range of 6m, daisy chain up to 4
● HDMI ● Line-in (3.5 mm) |
| Audio outputs | ● HDMI
● Line-out (3.5 mm) |
| Other supported standards | ● H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
● RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP |
| User Interface | ● Single/dual monitor layout styles
● User-friendly OSD (22 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) ● Display/edit site name |
| Network | ● 10/100/1000Mbps
● NAT/firewall traversal (H.460) ● High Efficiency Lost Packet Recovery (HELPeR™) ● API support via Telnet ● Wake-on-LAN (WOL) support ● IPv4 and IPv6 support ● Network test |
| Security | ● AES (Advanced Encryption Standard) function (128-bit)
● Password protection for system settings ● Password protection for remote system management |
| Web Management Tool | ● Remote management
● Live monitoring ● Firmware update ● Phonebook download/upload/edit ● Restore system settings ● Export call history |
| Value – added features | ● Meeting recording
○ In meeting and offline recording ○ Save directly to USB flash drive ○ Supports screen re-layout during playback ○ Playback and file conversion via VCPlayer software (.mov and .mp4 format) ● EZMeetup software/App ○ 30-day for free trial ○ Connect with H.264 video codec ○ Receive resolution up to full HD 1080p at 30fps ○ Transmit resolution up to full HD 1080p at 30fps ○ Support content sharing, capture and recording ● EZDraw App ○ Import .JPG, .PNG, .GIF and .BMP files ○ Export .PNG files ○ A maximum of 10 devices can be connected ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual monitor support and SnapShot ● Speed dialing via hot keys (10 sets) ● Camera presets (100 positions) ● Firmware update via USB flash drive ● Screensaver and auto power off mode ● 2nd camera control from EVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p) ● Group calling ● Supports SIP voice calls ● Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera 2nd camera 2 Different contents) ● ScreenShare software (Wirelessly share content) ● VCLink software (Control and Sharing in smartphone) ● VCAssist software (Intelligent Meeting Assistant) ● Dual camera and dual content image by Side-by-Side or Picture-in-Picture ● iSCSI storage device settings ● Built-in SIP server(Up to 100 Registrations, 50 Pair calling) ● Support AVer Register Server (ARS) ● Meeting ID method and High-Res mode |
| Power Supply | ● AC 100V ~240V, 50/60Hz
● Consumption: EIAJ 12V, 6.25A |
| Environmental data | ● Operation temperature: 0 ~40°C
● Operation humidity: 20% ~80% ● Storage temperature: -20 ~60°C ● Storage humidity: 20% ~80% |
| Physical Characteristics | ● Package dimensions: 292 x 344 x 472mm
● Package weight: 8.1kg ● Main system (codec): 260 x 158.7 x 33mm ● eCam Focus camera: 137.7 x 122.3 x 130 mm ● EVC microphone array: 131.9 x 118.6 x 25.5mm |
| Optional accessories | ● Additional microphone
● eCam camera mount ● Replacement eCam Focus camera |
PACKAGE CONTENTS
- Main system unit (codec)
- EVC eCam camera
- EVC microphone array
- IR remote control with batteries
- Power supply (12V/5A)
- VGA cable (3M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable (1.5M)
- Warranty card
- Quick guide
