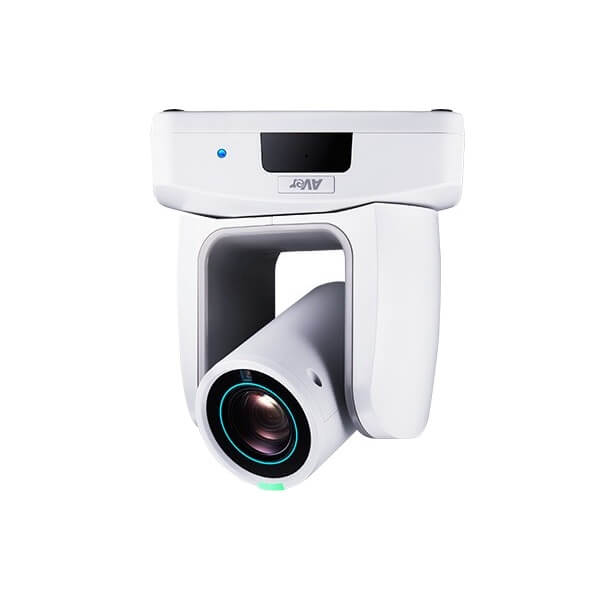

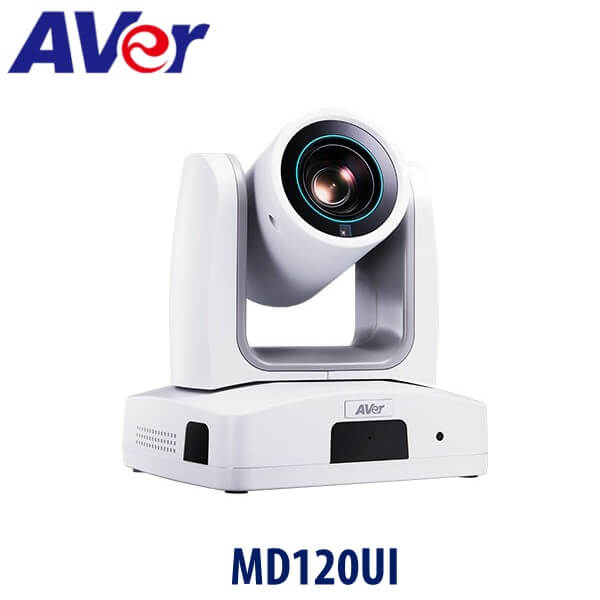

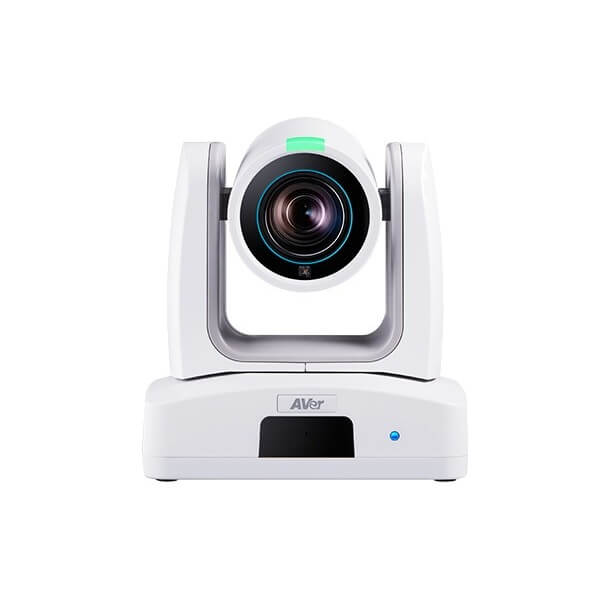

AVer MD120UI Medical Grade PTZ Camera Kenya
The AVer MD120UI Kenya stands out as the inaugural PTZ camera crafted exclusively for patient monitoring on a global scale. Fueled by cutting-edge AI advancements, overseeing patients is now effortlessly manageable, empowering healthcare professionals to maintain unwavering vigilance and responsiveness to patient requirements. Boasting 20X optical zoom, 4K imaging prowess, and an IR night view feature, it delivers impeccably clear visual surveillance of patients, ensuring round-the-clock monitoring without any visual gaps.
Specifications
Camera
- Image Sensor
- 1/2.8′ CMOS
- Effective Picture Elements
- 8 Megapixels
- Output Resolutions
- Resolutions: 4K / 1080p / 720p
- Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
- Minimum Illumination
- 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
- S/N Ratio
- ≥ 50 dB
- Gain
- Auto, Manual
- TV Lines
- 1000 (Center / Wide)
- Shutter Speed
- 1/1s to 1/10,000s
- Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance
- Auto / Manual
- Optical Zoom
- 20X
- Digital Zoom
- 1X
- Total Zoom
- 20X
- Viewing Angles
- DFOV: 69.2° (Wide) to 4.1° (Tele)
- HFOV: 62.3° (Wide) to 3.6° (Tele)
- VFOV: 37.7° (Wide) to 2.1° (Tele)
- Focal Length
- f = 4.5 mm (Wide) to 90 mm (Tele)
- Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance
- 0.1 m (Wide) , 1.2 m (Tele)
- Pan / Tilt Angles
- Pan: ±170°, Tilt: +90° / -30°
- Pan / Tilt Speed (Manual)
- Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
- Preset Speed
- Pan: 200° / sec, Tilt: 200° / sec
- Preset Positions
- 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces
- RS-232 / RS-422 / Ethernet
- Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP), CGI (IP)
- Image Processing
- Mirror / Flip / Freeze / WDR / BLC
- Power Frequencies
- 50 Hz, 60 Hz
AI Function
- Mode
- Eye Tracking
Privacy
- Protection Mode
- Privacy Mode, Privacy Indicator
General
- Power Requirement
- 12V
- Power Consumption
- 24W
- PoE
- PoE+ (IEEE802.3at)
- Dimensions
- 180(W) x 145(D) x 183.5(H) mm
- Net Weight
- 1.7 ± 0.1 kg
- Housing Material
- Anti-UV
- Application
- Indoor
- IR Night Vision
- Yes
- Security
- Kensington Slot
- IR Remote Control
- Yes
- Operating
- Temperature: 0 °C to +40 °C
- Humidity: 20% to 80%
- Storage Conditions
- Temperature: -20 °C to +60 °C
- Humidity: 20% to 95%
Audio
- Channels
- 2ch Stereo
- Codec
- AAC-LC (48K)
- Built-in Microphone
- 1 (Omni-Directional)
Interface
- Video Outputs
- HDMI, IP, USB
- Audio Outputs
- HDMI, IP, USB
- Audio Inputs
- N/A
IP Streaming
- Resolution
- 4K 60fps
- Network Video Compress Formats
- H.264, H.265, MJPEG
- Maximum Frame Rate
- 4K 60fps
- Bit-Rate Control Modes
- VBR, CBR
- Range of Bit-Rate
- 512Kbps to 64Mbps
- Network Interface
- 10 / 100 / 1000 Base-T
- Multi-Stream Capability
- 2 (RTSP / Web page), 4K 60fps Max.
- Network Protocols
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
USB
- Connector
- USB 3.0 (Type-B)
- Video Formats
- MJPEG
- Maximum Video
- 2160p
- USB Video Class (UVC)
- UVC 1.1
- USB Audio Class (UAC)
- UAC 1.0
Web UI
- Live Video Preview
- Yes
- Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image
- Exposure, White Balance, Picture
- Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
- IP Search and Configuration Tool
- Support Windows® 7 or later
- PTZ Management
AVer ViewCare- Support Windows® 7 or later
- PTZ Control Panel
- Supports iOS & iPadOS® 11 or later
- Camera Setting Tool
- Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
- Camera
- 3 Years
- Accessories
- 1 Year
- Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
- Optional Accessories
- AVer CL01 PTZ Camera Controller, L-Type Wall Mount
