Description

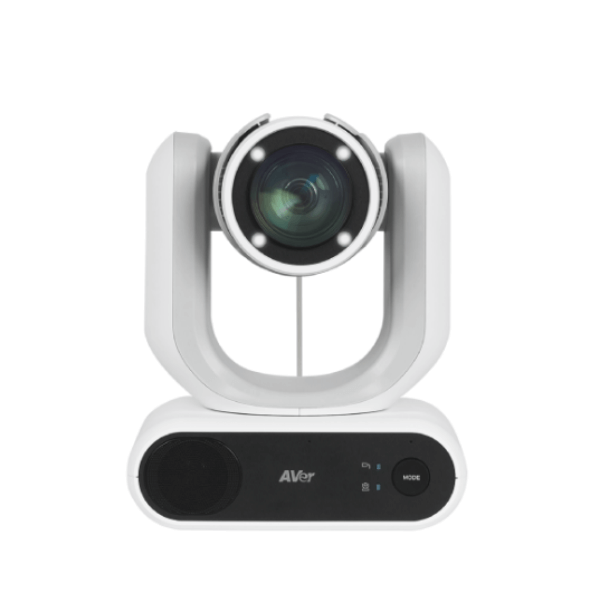

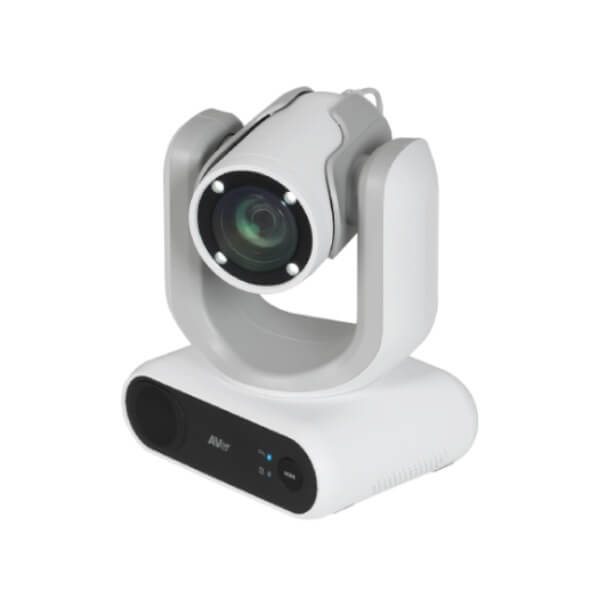

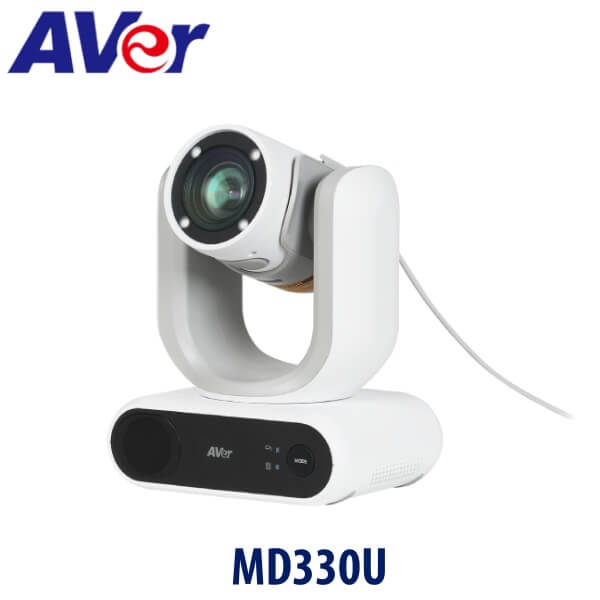

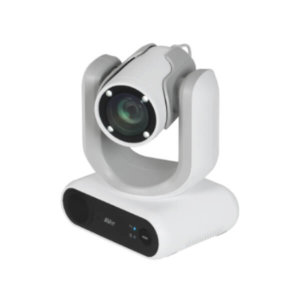

AVer MD330U Medical Grade PTZ Camera Kenya

AVer MD330U Kenya is Medical Grade PTZ Camera specially designed and medically certified for Telemedicine with the IEC 60601 Medical Certification. Designed to provide precise diagnosis, this Medical Grade PTZ Camera is equipped with 30X optical zoom lens with 4K output resolution delivering superb image quality. The removable camera head design is a true revolution in telemedicine as it enables doctor not only to make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest. In addition, AI Noise Reduction offers a face-to-face communication experience for patients and doctors. A first in the industry, the removable camera head makes 360-degree angle close-up shooting and snapshots possible.

Features

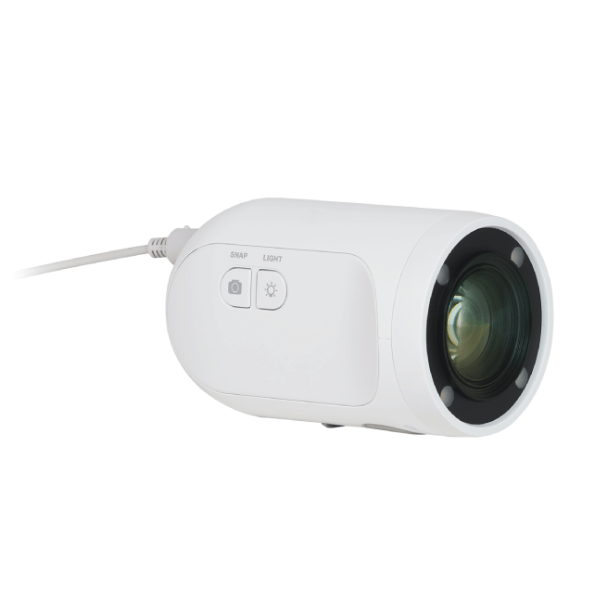

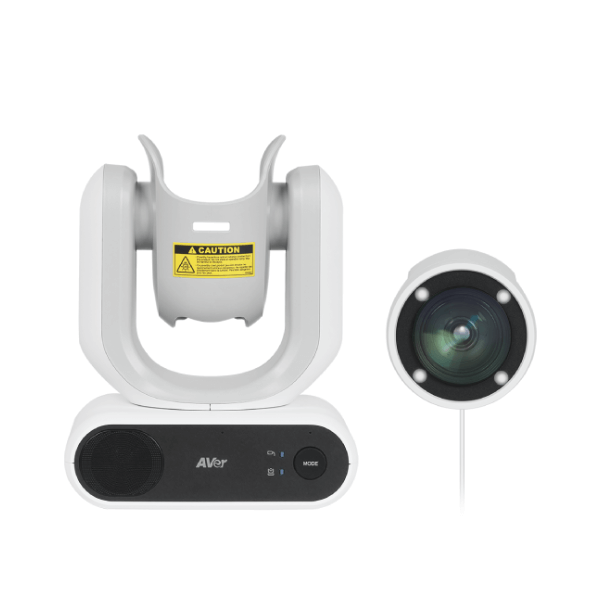

Detachable Mode

The AVer MD330U Kenya is conveniently designed with removable camera head design is a true revolution in telemedicine allowing the doctor can not only make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest.

30X Optical Zoom, High Resolution & Wide Pan-Tilt Angles

The AVer MD330U Kenya packs 30X optical zoom lens picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.

Outstanding 4K Resolution

The AVer MD330U Kenya delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

AI Acoustics

With an integrated speakerphone and microphone, AVer MD330U Kenya is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.

Medical Grade Certification

The IEC 60601 medical certification not only ensures stability and safety of the AVer MD330U Kenya, but also guarantees the compatibility of other medical grade devices with the MD330U.

Specifications

Camera

• Image Sensor
  • 1/2.8″ 4K Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30 (IP / UVC), 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 7 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual
• Optical Zoom
  • 30X
• Viewing Angles
  • DFOV : 75.5° (Wide) to 3.1° (Tele)
  • HFOV : 68.0° (Wide) to 2.7° (Tele)
  • VFOV : 41.7° (Wide) to 1.5° (Tele)
• Focal Length
  • f = 4.3 mm (Wide) to 129 mm (Tele)
• Aperture (Iris)
  • F = 1.6 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 01 m (Wide), 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°, Tilt : +90° / -35°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec, Tilt : 200° / sec
• Preset Positions
  • 10 (IR), 256 (RS-232 / IP)
• Camera Control – Protocols
  • VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
• Image Processing
  • Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Audio

• Embedded Speaker
  • Yes
• Microphone
  • Yes, Array Microphone
• AI Noise Reduction
  • Yes

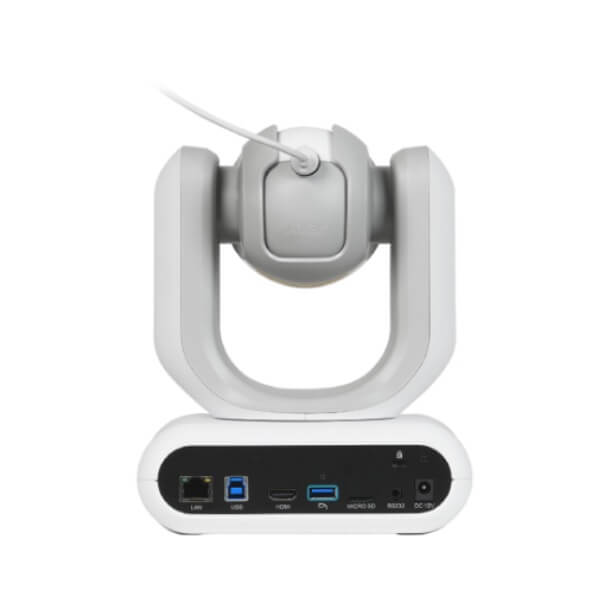

Interface

• Video Outputs
  • HDMI, IP, USB
• Audio Outputs
  • HDMI, IP, USB

General

• Power Requirement
  • AC 100 – 240V to DC 12V/3.34A
• Power Consumption
  • 36W
• Dimensions (W x H x D)
  • 0 x 203.0 x 124.0 mm
• Net Weight
  • 95 kg
• Application
  • Indoor
• Tally Lamp
  • N/A
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +35 °C
  • Humidity : 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C
  • Humidity : 20% to 95%

IP Streaming

• Resolution
  • 4K 30fps
• Network Video Compress Formats
  • 264, H.265
• Maximum Frame Rate
  • 4K 30fps
• Network Interface
  • 10 / 100 / 1000 Base-T
• Multi-Stream Capability
  • 2 (RTSP / Web Page), 4K 30fps (max.)
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

USB

• Connector
  • USB 3.0
• Video Format
  • MJPEG, YUY2
• Audio Format
  • PCM
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Software Tools

• IP Search and Configuration Tool
  • Support Windows 7 or later

• Package Contents
  • Camera, Remote Control, Power Adapter, Power Cord, Screws (x2), USB Cable, Quick Start Guide
