Aver PTC310HW Kenya

The Aver PTC310HW Kenya features AI Auto Tracking PTZ Camera that makes powerful and reliable Pro AV capability available to everyone. PTC310HW features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing.

Add to quote

Description

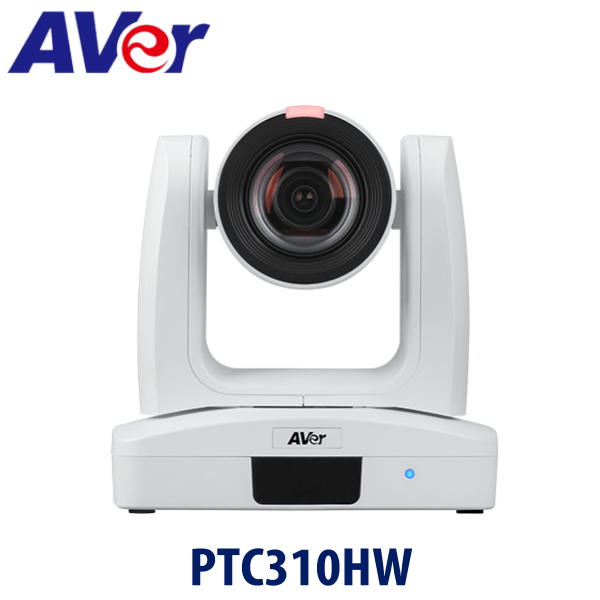

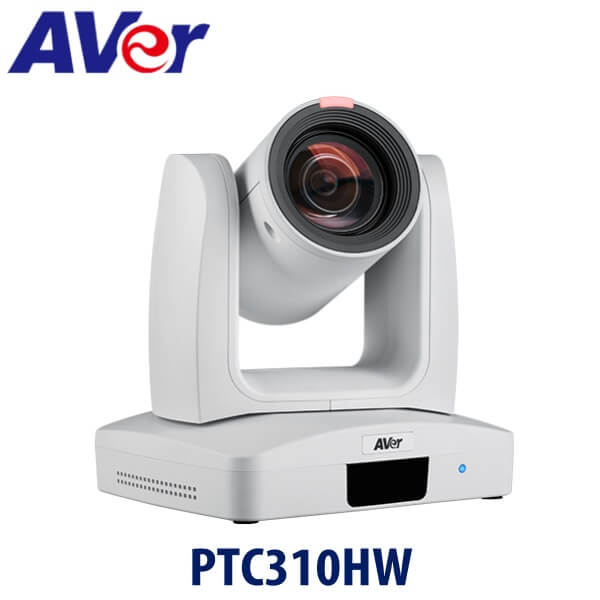

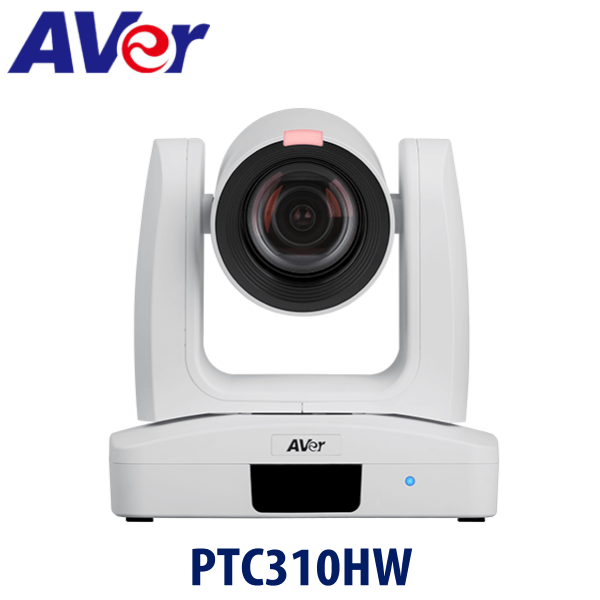

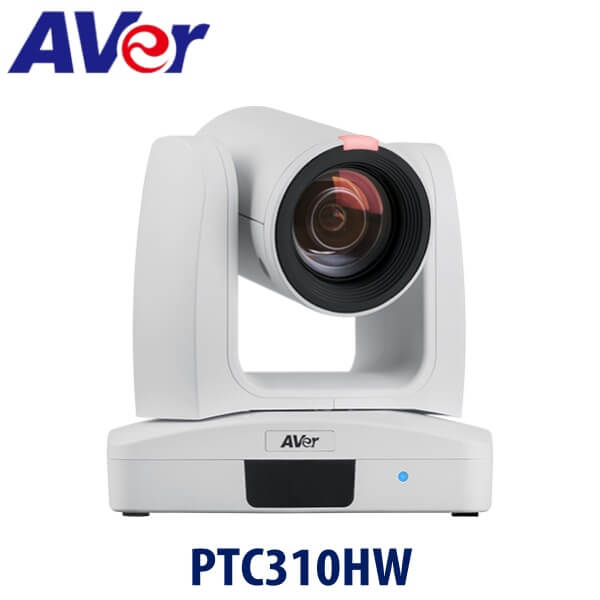

Aver PTC310HW AI Auto Tracking PTZ Camera Kenya

The Aver PTC310HW Kenya features AI Auto Tracking PTZ Camera that makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, this Video Conferencing System features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Embrace its 12X optical zoom lens and 4K resolution to combine with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Its optical zoom power of up to 12X and 4K resolution results in crystal clear images with no motion blurs. It further allows you to stay focused during live presentations since it accurately locks on the main subject who may be the speaker using its powerful hybrid auto-tracking abilities. AVer PTC310H keeps track of the speaker’s movement while shutting out any distractions that may occur during the presentation.

PTC310HW Features

4K Output Resolution

The Aver PTC310HW camera has 4K output resolution and an Ultra High Definition resolution of 1080p at 30 frames per second, capturing crystal clear images. It is engineered with a Sony sensor to offer users amazing performance for every shoot, along with vital additions like auto exposure, autofocus, and auto white balance.

Pan, Tilt & Zoom

The onboard PTZ motorized camera on the AVer PTC310HW adjusts focus, pans, and tilts speedily with absolutely no sound at all, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in.

12X Optical Zoom

The AVer PTC310HW has an impressive zoom power of 12× optical zoom power and 2× sensor zoom power. This offers you amazing abilities to carry out functions such as highlighting content and changing shooting angles randomly, even when the camera is panning and tilting. The well-designed Pan-Tilt-Zoom performance offers you crystal clear video without motion blur, even when the subject has been zoomed in to a tight close-up.

Human Detection AI

The Aver PTC310HW AI Auto Tracking PTZ Camera has advance Human Detection capability. This highly accurate processing function enables PTC310H device to easily detect and capture human forms and moving objects in seconds. Allowing participants to focus on the presenter

Click & Track

With the PTC310HW, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive web UI.

Presenter Mode

The Aver PTC310HW AI Auto Tracking PTZ Camera is equipped with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

The Aver PTC310HW AI Auto Tracking PTZ Camera also has Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

With Hybrid Mode Aver PTC310HW AI Auto Tracking PTZ Camera users enjoy utmost freedom of movement for performing artists. Preset effective areas for Zone Tracking in advance,
and once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode.

PTC310HW Specifications

Image Sensor: 1/2.8″ 4K Exmor CMOS
Effective Picture Elements: 8 Megapixels
Output Resolutions: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio: ≥ 50dB
Gain: Auto / Manual
TV Line: 1400 (Center)
Shutter Speed: 1/1s – 1/32,000s
Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance: Auto, Manual
Optical Zoom: 12X
Digital Zoom: 12X
Sensor Zoom: 2X
Viewing Angles: DFOV : 78° (Wide) to 7° (Tele) | HFOV : 70° (Wide) to 6° (Tele) | VFOV : 42° (Wide) to 3° (Tele)
Focal length: f=3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris): F=1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
Pan / Tilt Angles: Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual): Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed: Pan : 200° / sec, Tilt : 200° / sec
Preset Positions: 10 (IR), 256 (RS-232)
Camera Control – Interface: RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocol: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency: 50Hz / 60Hz

AI Auto Tracking Functions

Tracking Mode: Presenter Mode, Zone Mode

Audio

Channels: 2ch (Stereo)
Codec: AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate: 48 / 44.1 / 32 / 24 / 16 / 8 KHz

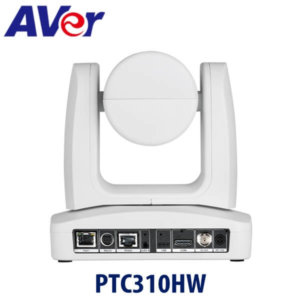

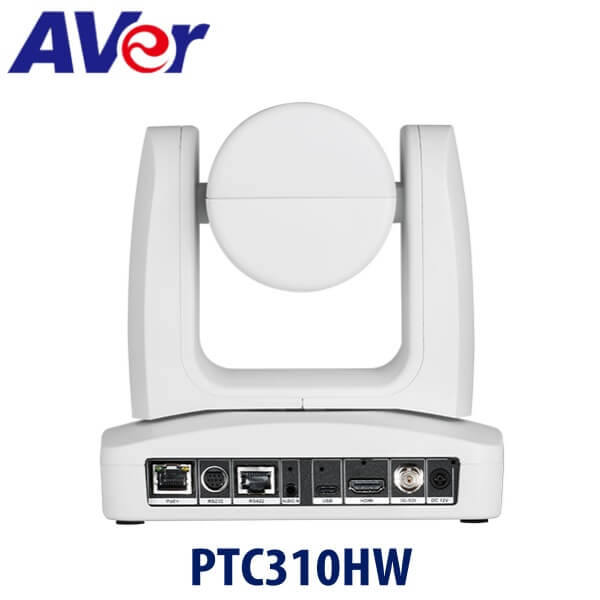

Interface

Video Outputs: HDMI, IP, USB
Audio Outputs: HDMI, IP, USB
Audio Inputs: MIC / Line in

General

Power Requirement: AC100V-AC240V to DC12V/5A
Power Consumption: 18W
PoE: PoE+
Dimensions (W x H x D): 180.0 x 183.5 x 145.0 mm
Net Weight: 1.7 (±0.1) kg
Application: Indoor
Tally: Yes
Security: Kensington slot
Remote Control: Infrared
Operating Condition: Temperature: 0°C to +40°C ; Humidity: 20% to 80%
Storage Condition: Temperature: -20°C to +60°C ; Humidity: 20% to 95%

IP Streaming

Resolution: 4K 30fps
Network Video Compress Format: H.264, H.265, MJPEG
Maximum Frame Rate: 4K 30fps or 1080p 60fps
Bit-rate Control Modes: VBR/CBR (selectable)
Range of Bit-rate setting: 512Kbps – 32Mbps
Network Interface: 10/100/1000Base-T
Multi-stream Capability: 2 | (RTSP / Web Page), 1080p 60fps (max.)
Network Protocol: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
