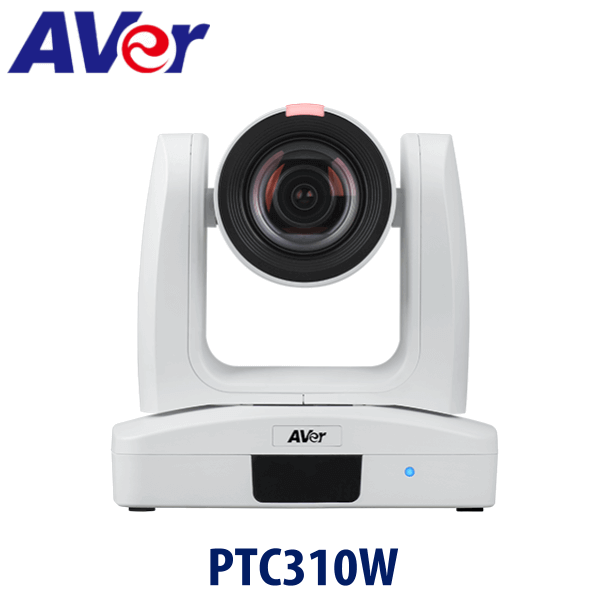

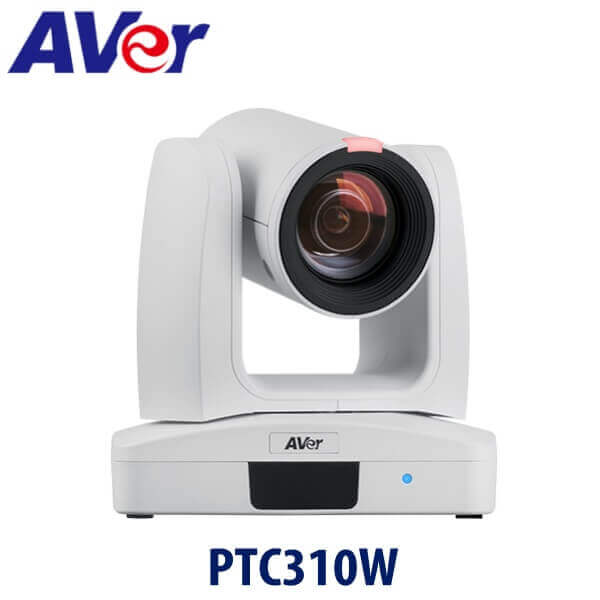

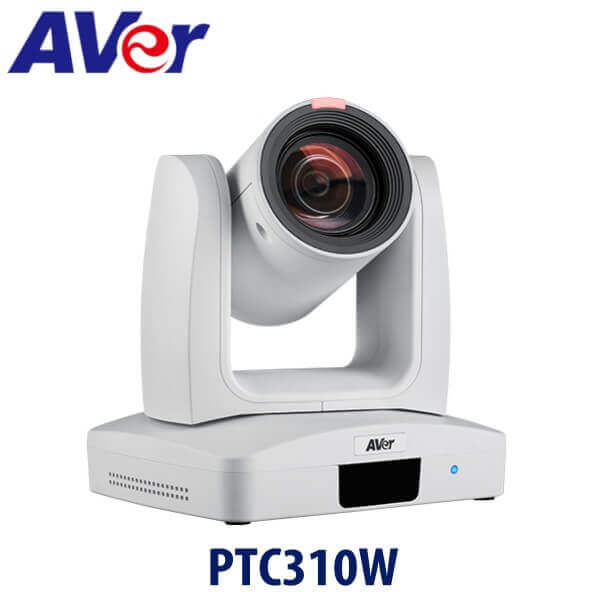

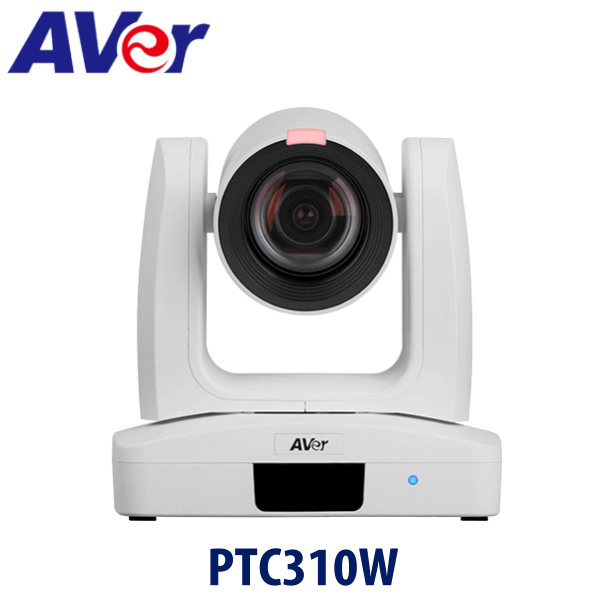

Aver PTC310W AI Auto Tracking PTZ Camera Kenya
The Aver PTC310W AI Auto Tracking PTZ Camera Kenya makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the Aver Professional PTZ Camera family, this video conferencing system features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12X optical zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Aver PTC310W features an AI-based smart framing ability that automatically detects and captures people or moving objects almost instantly. It supports a total of 4 types of audio/video output interface namely 3G-SDI, HDMI, IP, and USB. Additionally, it offers modes such as ‘Click & Track’ that lets you click on a target and initiate precise tracking, ‘Presenter Mode’ that tracks the target even if other people or objects are on the way, or ‘Zone Mode’ to steadily capture content on display rather than the presenter’s movements.
PTC310W Features
High-Quality Video
The Aver PTC310W Kenya Professional PTZ Camera, is equipped with 12x digital zoom and Full HD 1080p60 providing the superior video quality and versatility you need to record and share events around the world.
Human Detection AI
Aver PTC310W AI Auto Tracking PTZ Camera packs a most advanced AI tool yet Human Detection. This highly accurate processing function enables PTC310W to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
With Aver PTC310W AI Auto Tracking PTZ Camera you can redirect focus instantly. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI without need of an IT expert.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Aver PTC310W AI Auto Tracking PTZ Camera packs Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
FOV
Aver PTC310WKenya Professional PTZ Camera has SmartFrame allowing one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed, so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
PTC310W Specifications
Camera
- Image Sensor : 1/2.8″ 1080p Exmor CMOS
- Effective Picture Elements :2 Megapixels
- Output Resolutions : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination : 0.4 lux (IRE50, F1.6, 30fps)
- S/N Ratio : ≥ 50dB
- Gain : Auto, Manual
- TV Line : 900 (Center)
- Shutter Speed : 1/1 to 1/32,000 sec
- Exposure Control : Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance : Auto, Manual
- Optical Zoom : 12X
- Digital Zoom : 12X
- Sensor Zoom :2X
- Viewing Angles :
- DFOV : 78° (Wide) to 7° (Tele)
- HFOV : 70° (Wide) to 6° (Tele)
- VFOV : 42° (Wide) to 3° (Tele)
- Focal length : f = 3.9 mm (Wide) to 46.8 mm (Tele)
- Aperture (Iris) : F = 1.6 (Wide) to 2.8 (Tele)
- Minimum Working Distance : 0.3 m (Wide), 1.5m (Tele)
- Pan/Tilt Angles :
- Pan : ±170°, Tilt: +90° / -30°
- Pan/Tilt Speed (Manual)
- Pan : 0.1° to 100° /sec, Tilt: 0.1° to 100° /sec
- Preset Speed : Pan: 200° /sec, Tilt: 200° /sec
- Preset Positions : 10 (IR), 256 (RS-232)
- Camera Control – Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
- Camera Control – Protocols: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
- Image Processing : Noise Reduction (2D / 3D), Flip, Mirror
- Power Frequencies : 50Hz, 60Hz
AI Auto Tracking Functions :
- Tracking Modes
- Presenter Mode, Zone Mode
Audio
- Channels : 2ch (Stereo)
- Codecs : AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
- Sample Rates : 48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface

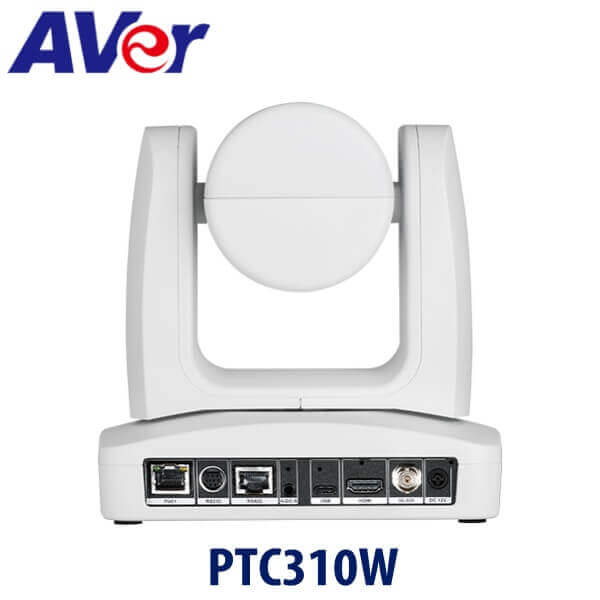

- Video Outputs : 3G-SDI, HDMI, IP, USB
- Audio Outputs : 3G-SDI, HDMI, IP, USB
- Audio Inputs : MIC in, Line in
General
- Power Requirement : AC100V-AC240V to DC12V/5A
- Power Consumption : 18W
- PoE : PoE+
- Dimensions (W x H x D) : 180.0 x 183.5 x 145.0 mm
- Net Weight : 1.7 (±0.1) kg
- Application : Indoor
- Tally Lamp : Yes
- Security : Kensington slot
- Remote Control : Infrared
- Operating Conditions : Temperature: 0°C to +40°C; Humidity: 20% to 80%
- Storage Conditions : Temperature: -20°C to +60°C; Humidity: 20% to 95%
IP Streaming
- Resolution : 1080p 60fps
- Network Video Compress Formats : H.264, H.265, MJPEG
- Maximum Frame Rate : 1080p 60fps
- Bit-rate Control Modes : VBR, CBR (selectable)
- Range of Bit-Rate Setting : 512 Kbps to 32 Mbps
- Network Interfaces : 10/100/1000 Base-T
- Multi-Stream Capability :2 (RTSP / Web Page), 1080p 60fps (max.)
- Network Protocols : IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
USB
- Connector : USB 3.0
- Video Formats : MJPEG, YUV, YUY2
- Maximum Video Resolution : 1080p
- USB Video Class : UVC1.1
- USB Audio Class : UAC1.0
Web UI
- Live Video Preview : Yes
- Camera PTZ Control : Pan, Tilt, Zoom, Focus, Preset Control
- Camera/Image Adjustment : Exposure, White Balance, Picture
- Network Configuration : DHCP, IP Address, Gateway, Subnet Mask, DNS
- Software Tools : IP Search & Configuration Tool
- Support Windows 7 or later: PTZ Management
- Support Windows 7 or later: PTZ Control Panel
- Support iPadOS v11 or later
Package Contents
Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
