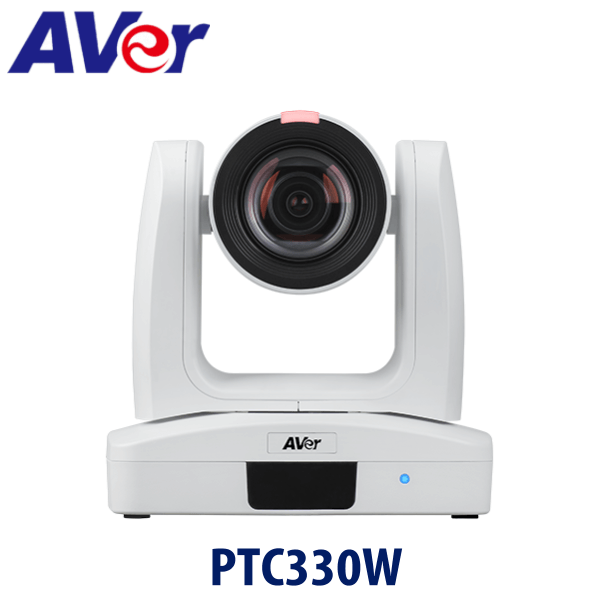

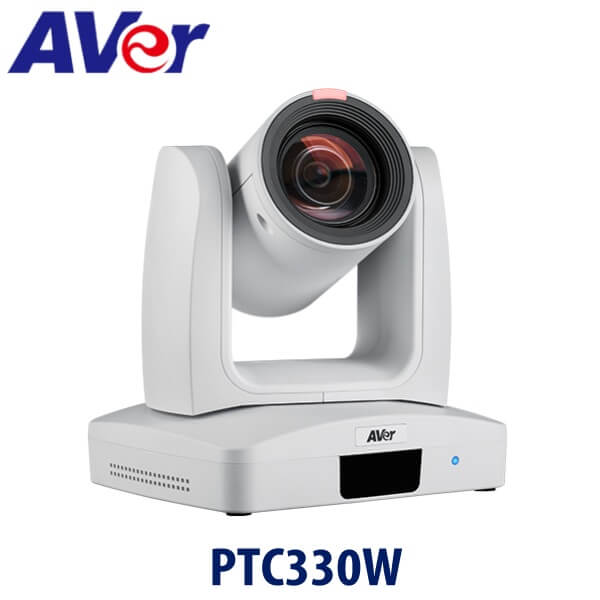

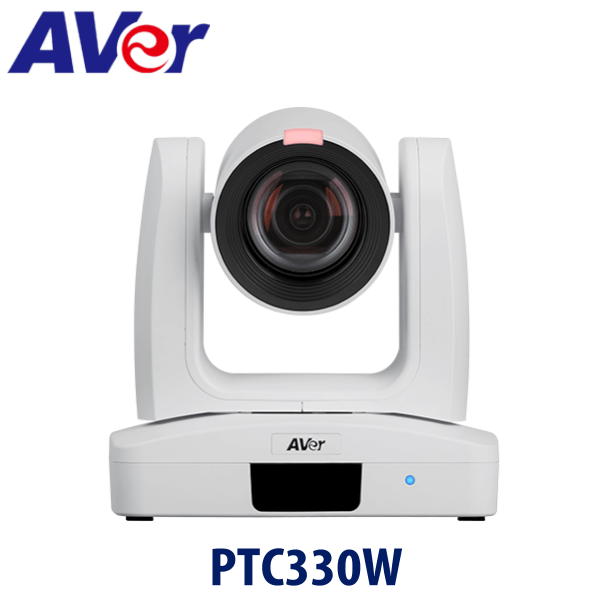

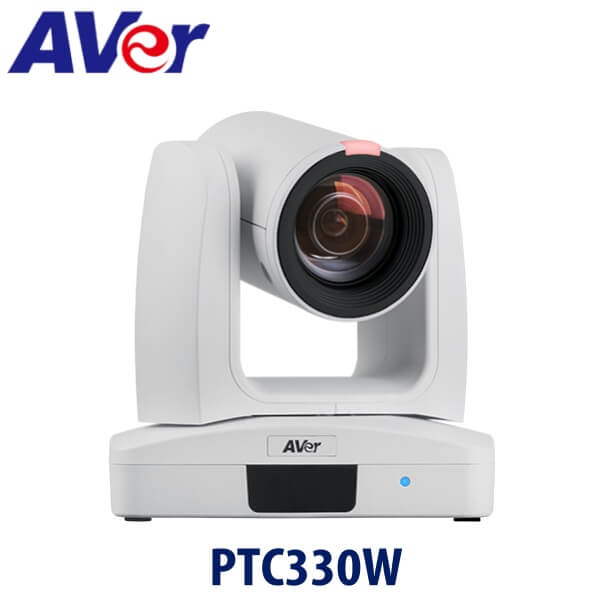

Aver PTC330W Kenya

The Aver PTC330W Kenya makes powerful and reliable Pro AV capability with Human Detection Processing System. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330W features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking.

Add to quote

Description

Aver PTC330W AI Auto Tracking PTZ Camera Kenya

The Aver PTC330W Kenya makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330W features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording.

The Camera has Human Detection processing system allowing in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, this video conferencing system provide an ideal conference system for governmental institutions, educational organizations, and enterprises with affordable solution for courses and lectures, keynote speeches, and employee trainings. Also, the camera combines 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording.

PTC330W Features

Full HD 1080p Output Resolution
Aver PTC330W AI Auto Tracking PTZ Camera is equipped with a powerful Full HD 1080p resolution, providing ultra-precise auto tracking experience for the users. The PTC330W also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

30X Optical Zoom & 2X Sensor Zoom
The Aver PTC330W AI Auto Tracking PTZ Camera boasts of a powerful zoom with an incredible 60X (30X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC330W.

Human Detection AI
Aver PTC330W AI Auto Tracking PTZ Camera packs the new Human Detection technology. The highly accurate Al processing function enables PTC330W to easily detect and capture human forms and moving objects in seconds. Experience the whole event without missing an important moment

Click & Track
Aver PTC330W AI Auto Tracking PTZ Camera allows instant redirection of focus. With a simple click on a target button you can quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Presenter Mode
With Aver PTC330W AI Auto Tracking PTZ track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way. The Camera therefore is ideal for lecture presentation

Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Aver PTC330W AI Auto Tracking PTZ allow you to create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements. One can therefore track various displays for a better video conferencing experience.

Hybrid Mode
Aver PTC330W AI Auto Tracking PTZ has hybrid mode capability. The Hybrid Mode provides the utmost freedom of movement for performing artists. Preset effective areas for Zone Tracking in advance,
and once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode.

Specifications

Image Sensor:1/2.8″ 1080p Exmor CMOS
Effective Picture Elements:2 Megapixels
Output Resolutions:1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination:7 lux (IRE50, F1.6, 30fps)
S/N Ratio:≥ 50dB
Gain:Auto, Manual
TV Line:900 (Center)
Shutter Speed:1/1 to 1/10,000 sec
Exposure Control:Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance:Auto, Manual
Optical Zoom:30X
Digital Zoom:12X
Sensor Zoom:2X
Diagonal Viewing Angles:9° (Wide) to 2.64° (Tele)
Horizontal Viewing Angles:1° (Wide) to 2.34° (Tele)
Vertical Viewing Angles:4° (Wide) to 1.36° (Tele)
Focal length:f=4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris):F=1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance:Wide: 0.01 m, Tele: 1.2 m
Pan / Tilt Angles:Pan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual):Pan: 0.1° to 100°/ sec, Tilt: 0.1° to 100°/ sec
Preset Speed:Pan: 200°/ sec, Tilt: 200°/ sec
Preset Positions:10 (IR), 256 (RS-232 / RS-422 / IP)
Camera Control – Interfaces:RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocols:VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing:Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency:50Hz, 60Hz

AI Auto Tracking Functions

Tracking Mode:Presenter Mode, Zone Mode, Hybrid Mode

Audio

Channel:2ch Stereo
Codecs:AAC-LC (48 / 44.1 / 32 / 24K)
Sample Rates:48 / 44.1 / 32 / 24 / 16 / 8 KHz

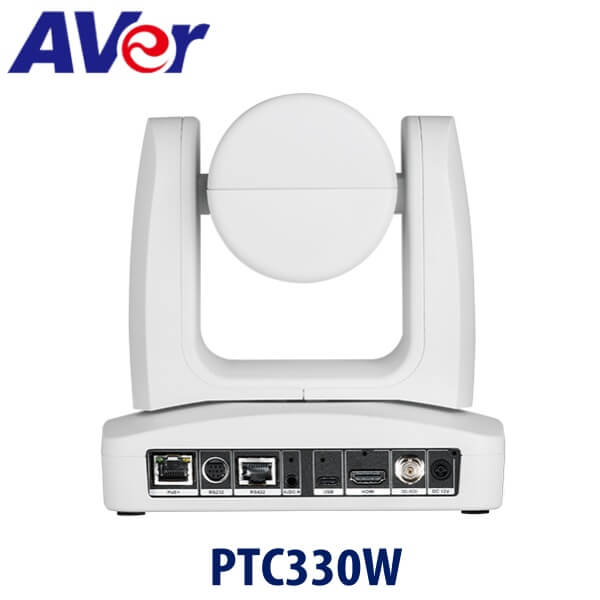

Interface

Video Outputs:3G-SDI, HDMI, IP, USB
Audio Outputs:3G-SDI, HDMI, IP, USB
Audio Inputs:MIC in, Line in

General

Power Requirement:AC100V – AC240V to DC12V/5A
Power Consumption:18W
PoE:PoE+
Dimensions (W x H x D):0 x 183.5 x 145.0 mm
Net Weight:7 (±0.1) kg
Application:Indoor
Tally:Yes
Security:Kensington Slot
Remote Control:Infrared
Operating Temperature:0°C to +40°C
Operating Humidity:20% to 80%
Storage Condition Temperature:-20°C to +60°C
Storage Condition Humidity:20% to 95%

IP Streaming

Resolution:1080p 60fps
Network Video Compress Formats:264, H.265
Maximum Frame Rate:1080p 60fps
Bit-rate Control Modes:VBR, CBR (selectable)
Range of Bit-Rate Setting:512 Kbps to 32 Mbps
Network Interfaces:10 / 100 / 1000 Base-T
Multi-stream Capability:2, (RTSP / Web Page), 1080p 60fps (max.)
Network Protocols:IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI®|HX Capability:N/A
