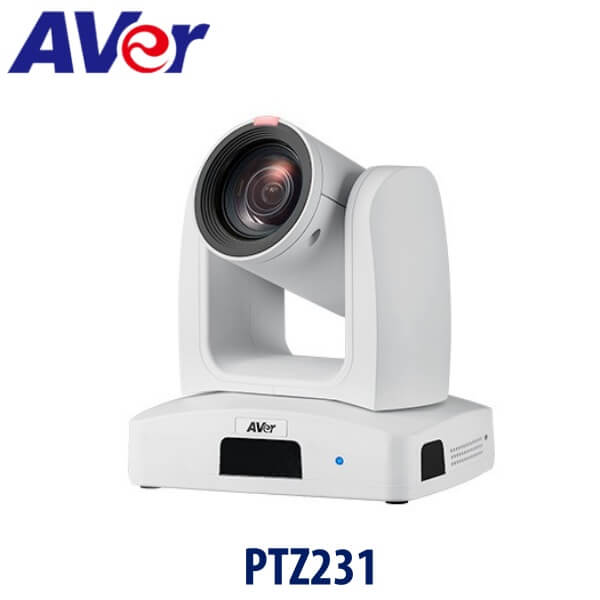

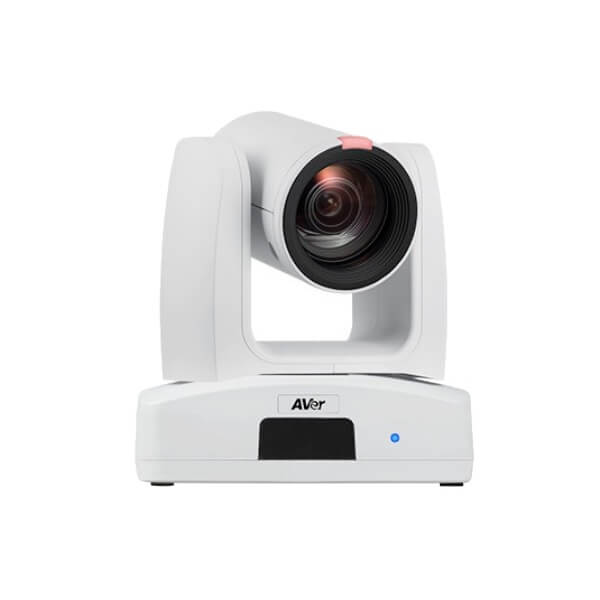

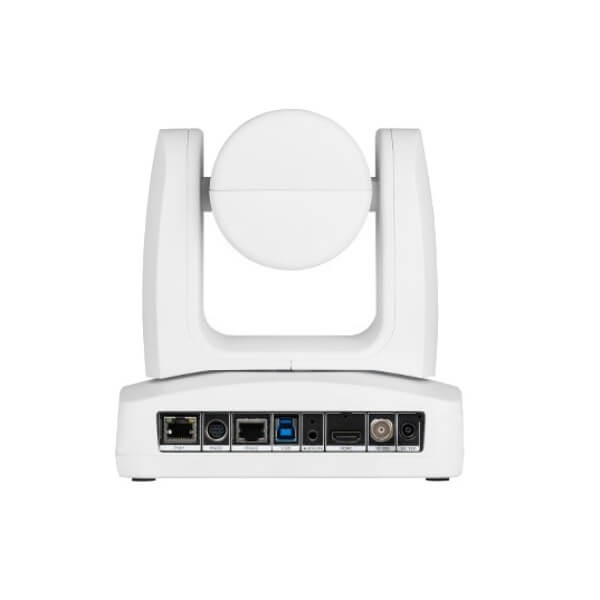

Aver PTZ231 Professional PTZ Camera Kenya

The AVer PTZ231 Kenya offers advanced PTZ camera capabilities, granting you absolute command over your streaming content. Experience high-quality streaming with full HD 1080p output at 60 fps, along with a 30X optical zoom and the innovative SmartShoot function. Elevate your livestream presentations and captivate your viewers with the AVer PTZ231 Kenya.

Specifications

Camera

Image Sensor
- 1/2.8” 1080p Exmor CMOS
Effective Picture Elements
- 2 Megapixels

Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual

TV Lines
- 1000 (Center)
Shutter Speed
- 1/1 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push

Optical Zoom
- 30X
Digital Zoom
- 1X

Total Zoom
- 30X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)

Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)

Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°

Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec

Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP

Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror

Power Frequencies
- 50 Hz, 60 Hz

AI Function

Mode
- SmartShoot

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC

Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB

Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/2A
Power Consumption
- 19W

PoE
- PoE+
Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm

Net Weight
- 2.0 (±0.1) kg
Application
- Indoor

Tally Lamp
- Yes
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution
- 1080p 60fps
Network Video Compress Formats
- H.264, H.265, MJPEG

Maximum Frame Rate
- 1080p 60fps
Bit-Rate Control Modes
- VBR, CBR (selectable)

Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
Network Interface
- 10 / 100 / 1000 Base-T

Multi-Stream Capability
- 4
- 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

NDI^®HX
- License Upgrade to NDI HX2 available in 2024Q2

USB

Connector
- USB 3.1
Video Formats
- MJPEG, YUY2

Maximum Video Resolution
- 1080p
USB Video Class (UVC)
- UVC 1.1

USB Audio Class (UAC)
- UAC 1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool
- Support Windows^® 7 or later
PTZ Management
- Support Windows^® 7 or later

PTZ Control Panel
- Supports iOS & iPadOS^® 11 or later
PTZ Link
- Supports Windows^® 7 or later, macOS^® 10.14 or later

OBS Plugin for PTZ Cameras
- Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
CaptureShare
- Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera
- 5 Years
Accessories
- 1 Year

Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
