Aver PTZ330UV2 Kenya

Impress your viewers with the Aver PTZ330UV2 Kenya, a top-of-the-line PTZ camera offering complete command over your streaming material.

Add to quote

Description

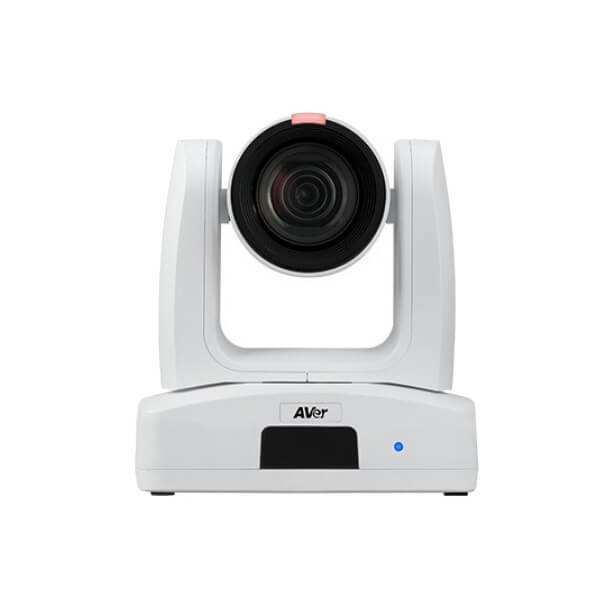

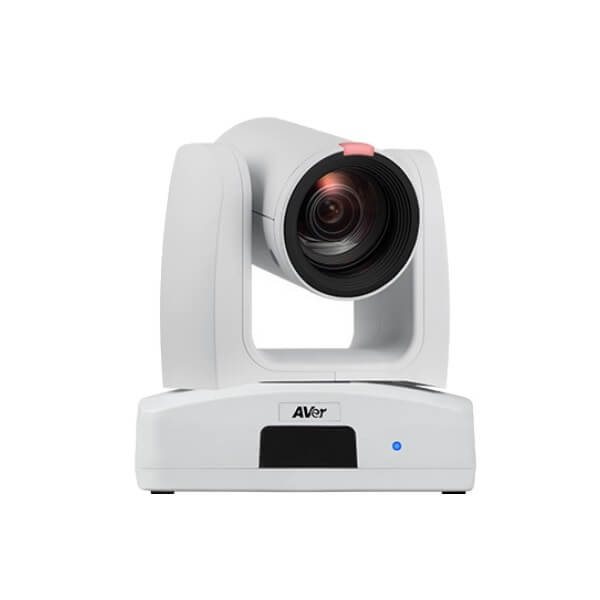

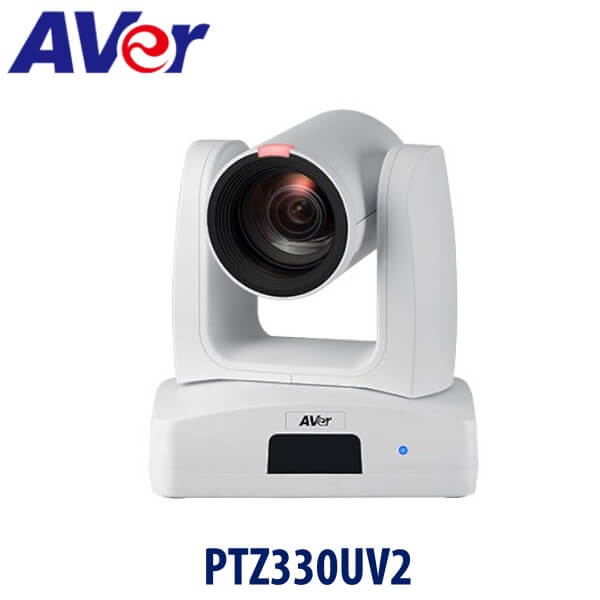

Aver PTZ330UV2 PTZ Camera Kenya

Impress your viewers with the Aver PTZ330UV2 Kenya, a top-of-the-line PTZ camera offering complete command over your streaming material. Featuring 4K 60 fps HDMI/USB/IP outputs, a 30X optical zoom lens, and SmartShoot capabilities, this cutting-edge streaming solution stands unparalleled. Elevate your broadcasts to new heights and leave a lasting impact with the Aver PTZ330UV2 Kenya!

Features

Harness the Power of Zoom

The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you’ll never miss a moment of any occasion.

A New Level of Clarity

With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

Smoother Streams

NDI<SUP>®</SUP> has praised the PTZ330UV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

Pro Camera Control

Customizable movement speed settings, ranging from 0.1° to 200° per second, offer high-level agility and precision for ultimate motion control during streams. The resulting sensitive and smooth multi-angle movement lets you capture extraordinary footage that dazzles your audience.

Keep People and Content in Focus

With embedded SmartShoot, the PTZ330UV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

Bring Voice Tracking to PTZ Cameras

PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifications

Camera

Image Sensor
- 1/2.8” 4K Exmor CMOS
Effective Picture Elements
- 8 Megapixels

Output Resolutions
- 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual

TV Lines
- 1400 (Center/Wide)
Shutter Speed
- 1/1 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push

Optical Zoom
- 30X
Digital Zoom
- 1X

Total Zoom
- 30X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)

Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)

Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°

Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec

Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP

Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror

Power Frequencies
- 50 Hz, 60 Hz

AI Function

Mode
- SmartShoot

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC

Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB

Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/2A
Power Consumption
- 19W

PoE
- PoE+
Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm

Net Weight
- 2.0 (±0.1) kg
Application
- Indoor

Tally Lamp
- Yes
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution
- 4K 60fps
Network Video Compress Formats
- H.264, H.265, MJPEG

Maximum Frame Rate
- 4K 60fps
Bit-Rate Control Modes
- VBR, CBR (selectable)

Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
Network Interface
- 10 / 100 / 1000 Base-T

Multi-Stream Capability
- 4
- 4K 60fps: RTSP, HDMI & USB
- 1080p 60fps: 3G-SDI
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

NDI^®|HX3
- N/A
NDI^® Genlock
- N/A

USB

Connector
- USB 3.1
Video Formats
- MJPEG, YUY2

Maximum Video Resolution
- 2160p
USB Video Class (UVC)
- UVC 1.1

USB Audio Class (UAC)
- UAC 1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool
- Support Windows^® 7 or later
PTZ Management
- Support Windows^® 7 or later

PTZ Control Panel
- Supports iOS & iPadOS^® 11 or later
PTZ Link
- Supports Windows^® 7 or later, macOS^® 10.14 or later

OBS Plugin for PTZ Cameras
- Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
CaptureShare
- Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera
- 5 Years
Accessories
- 1 Year

Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
