Description

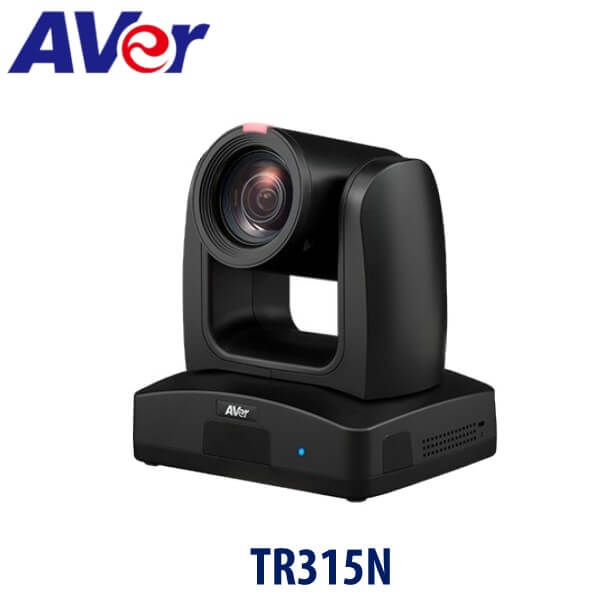

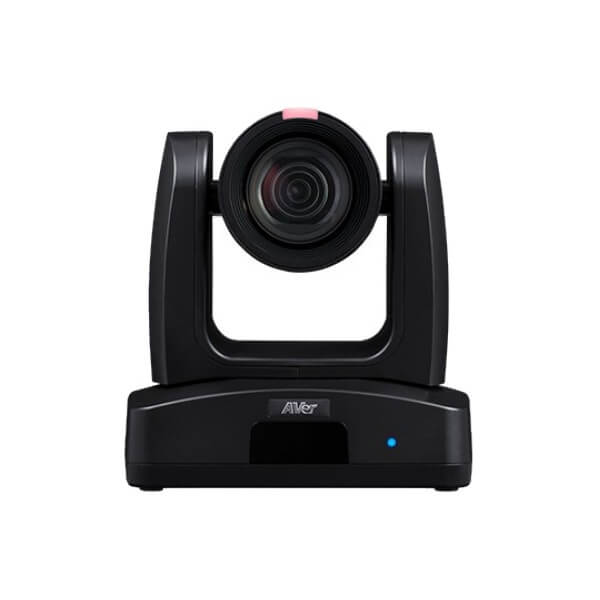

Aver TR315N AI Auto Tracking PTZ Camera Kenya

With its NDI®|HX3 capability, the AVer TR315N Kenya AI Auto Tracking PTZ Camera elevates the capabilities of professional AV solutions for users across various industries. Featuring exclusive functionalities such as Presenter Mode, Zone Mode, and Hybrid Mode tracking, powered by cutting-edge AI processing, the AVer TR315N Kenya seamlessly integrates a 12X Optical Zoom lens, 4K 60 fps resolution, and hybrid auto tracking for smooth PTZ operations. It stands as the premier option for broadcasting, streaming, or recording needs.

Features

NDI® HX3 Levels Up Streaming

Elevate your streaming experience with the AVer TR315N Kenya’s cutting-edge NDI® HX3 technology! Revel in lossless, low-latency video streaming without complex configurations. This innovation is reshaping the landscape of contemporary video content sharing and production.

12X Optical Zoom Magnifies Details

Experience the exceptional power of the TR315N camera’s astounding 12X optical zoom. This feature seamlessly operates even while the camera is panning and tilting, granting you the ability to accentuate content and quickly shift between shooting perspectives. Embrace the advantage of dynamic, crystal-clear video feeds through the TR315N’s unparalleled PTZ performance.

HDMI/USB/IP. 4K 60 FPS.

Leverage the TR315N’s 4K 60 fps streaming potential through HDMI, USB, and IP outputs. Free from intricate configurations and cable entanglements, you can effortlessly use multiple devices simultaneously to produce fluid video streams.

Presenter Mode

Get unparalleled tracking performance with Presenter Mode. This dynamic feature empowers presenters to venture beyond the stage to engage with their audience while the camera maintains seamless tracking.

Zone Mode

Zone Mode elevates your ability to capture content across multiple displays. Generate up to four dedicated Content Zones to consistently capture displayed information or items, prioritizing important presentation materials over the presenter’s movements.

Hybrid Mode

Free your performers by enabling unrestricted movement with Hybrid Mode. Use preset areas for zone tracking, letting the camera seamlessly switch to a full view of each pre-defined location as performers move through the areas. If they move beyond these zones, the camera seamlessly adapts, switching to presenter mode to effortlessly and precisely track their movements.

Specifications

Camera

• Image Sensor
  • 1/2.8” 4K Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels

• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 0.46 lux (IRE50, F1.6, 30fps)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/32,000 sec

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual

• Optical Zoom
  • 12X
• Digital Zoom
  • 1X

• Viewing Angles
  • DFOV : 80.6° (Wide) to 7.7° (Tele)
  • HFOV : 72.8° (Wide) to 6.7° (Tele)
  • VFOV : 44.1° (Wide) to 3.8° (Tele)
• Focal Length
  • f = 3.9 mm (Wide) to 46.8 mm (Tele)

• Aperture (Iris)
  • F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance
  • 0.3 m (Wide)
  • 1.5 m (Tele)

• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec

• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)

• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF

• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

AI Control Functions

• Gesture Control
  • Yes

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48K)
  • PCM (8K)

• Sample Rates
  • 48 / 44.1 / 32 / 24 / 16 / 8 KHz

Interface

• Video Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI, IP, USB

• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 18W

• PoE
  • PoE+
• Dimensions (W x H x D)
  • 180.0 x 192.0 x 145.0 mm

• Net Weight
  • 2.0 (±0.1) kg
• Application
  • Indoor

• Tally Lamp
  • Yes
• Security
  • Kensington Slot

• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

• Storage Conditions
  • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution
  • 2160p 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Network Audio Compress Formats
  • AAC-LC (48K), PCM (8K)
• Maximum Frame Rate
  • 2160p 60fps

• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 32 Mbps

• Network Interface
  • 10 / 100 / 1000 Base-T
• Multi-Stream Capability**
  • 4
    4K 60fps: RTSP, HDMI & USB
    1080p 60fps: 3G-SDI

• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®|HX3
  • Yes

USB

• Connector
  • USB 3.1
• Video Formats
  • MJPEG, YUY2

• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p

• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^® 7 or later
• PTZ Management
  • Support Windows^® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS^® 11 or later
• PTZ Link
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

• OBS Plugin for PTZ Cameras
  • Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Ties (x 4), M2 x 4 mm Screws (x 3), M3 x 6 mm Screws (x3), 1/4′-20L 6.5mm Screws (x2), Cable Fixing Plate, Ceiling Mount Brackets (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
