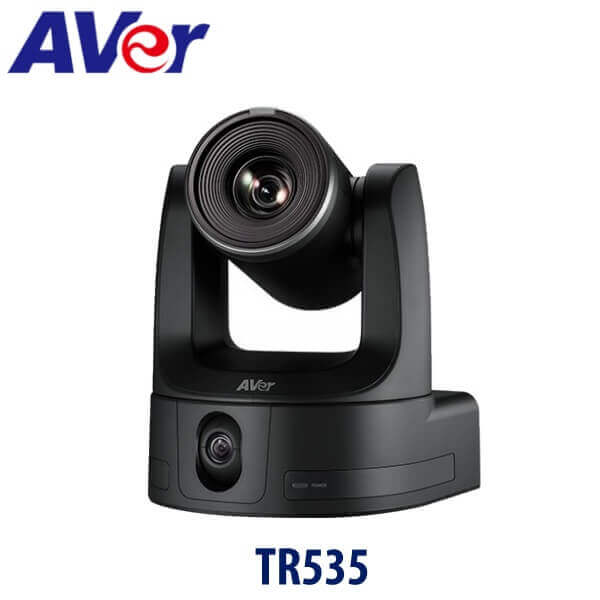

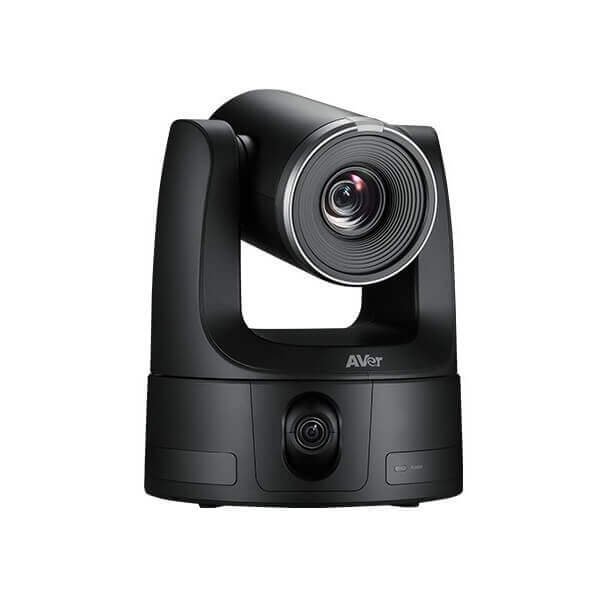

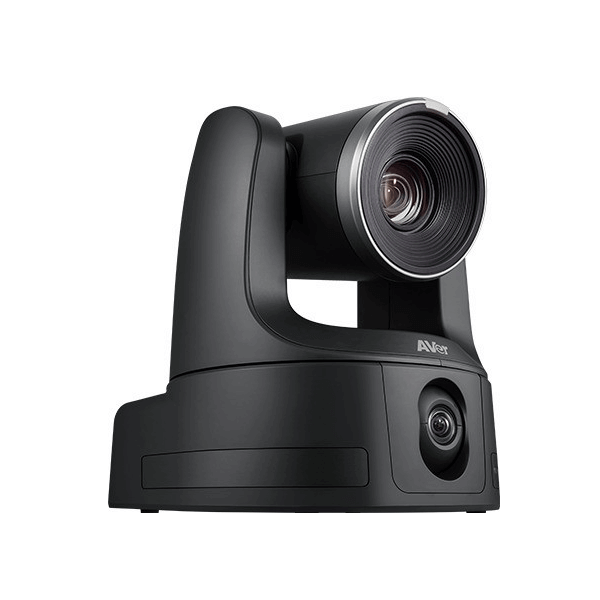

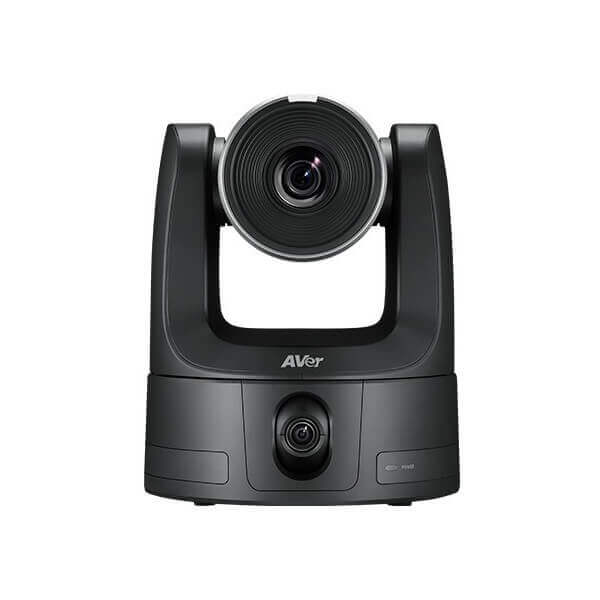

Aver TR535 Dual Lens Auto Tracking Camera Kenya

Step into the future of streaming technology with the Aver TR535 Dubai Dual Lens Auto Tracking Camera, a revolutionary tool designed for professionals in broadcasting, streaming, and recording. This cutting-edge camera redefines what’s possible in dynamic filming environments by combining advanced AI capabilities with superior optical performance.

The Aver TR535 Kenya is equipped with a powerful 30X zoom lens and a wide-angle lens, offering unmatched versatility for capturing every detail—whether it’s a sweeping landscape or a close-up shot. No detail is too small, nor any scene too vast for the TR535 to handle. With its 4K PTZ camera, you can deliver crystal-clear visuals, ensuring every moment is captured in stunning high-definition, bringing life to every frame with impeccable clarity and depth.

What truly sets the Aver TR535 Kenya apart from the competition is its four AI-powered tracking modes. These intelligent modes allow the camera to seamlessly follow subjects with pinpoint accuracy, ensuring smooth transitions and professional-grade automation. Whether you’re streaming live events, recording presentations, or producing high-quality content, the TR535’s adaptive tracking ensures your video remains sharp and engaging. With the Aver TR535, you’re not just recording—you’re crafting an extraordinary visual experience. Step into the era of smart, automated streaming with the Aver TR535 Kenya, and take your content to unprecedented levels of excellence.

Features

• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking
• 5-Year Warranty

Technical Specifications

PTZ Camera

• Image Sensor
  • 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom
  • 30X
• Digital Zoom
  • 1X
• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 1 m (Wide)
  • 2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor
  • 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30
• Focal Length
  • 22 mm
• White Balance
  • Auto
• Exposure
  • Auto
• Viewing Angles
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles
  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48 K)
• Sample Rates
  • 48 KHz

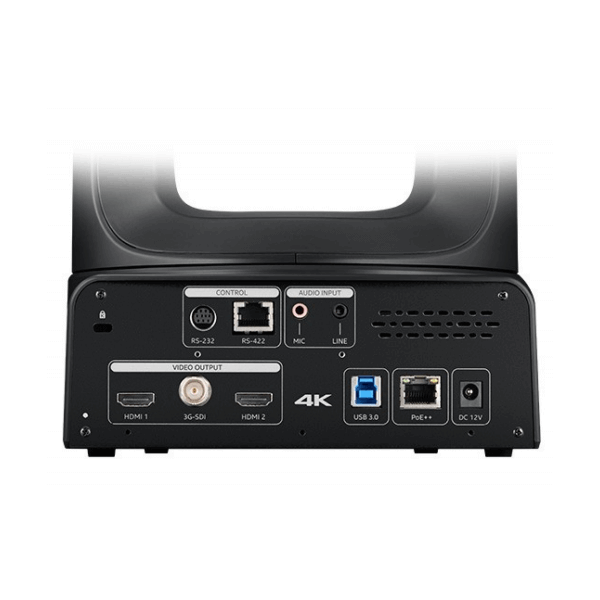

Interface

• Video Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 29W
• PoE
  • PoE++
• Dimensions (W x H x D)
  • 5 x 250.7 x 218.5 mm
• Net Weight
  • 6 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%
• Sustainability
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Network Audio Compress Formats
  • AAC-LC (48 K)
• Maximum Frame Rate
  • 2160p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 64 Mbps
• Network Interface
  • 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability
  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®High Bandwidth
  • N/A
• NDI^®HX2
  • N/A
• NDI^®Genlock
  • N/A
• NDI^®Embedded Bridge
  • N/A

USB

• Connector
  • USB 3.2 Gen 1
• Video Formats
  • MJPEG, YUY2
• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^®7 or later
• PTZ Management
  • Support Windows^®7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS^®9 or later
• PTZ Link
  • Supports Windows^®7 or later, macOS^®14 or later
• OBS Plugin for PTZ Cameras
  • Supports Windows^®8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^®7 or later, macOS^®14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year
• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
