Aver TR535N Kenya

Description

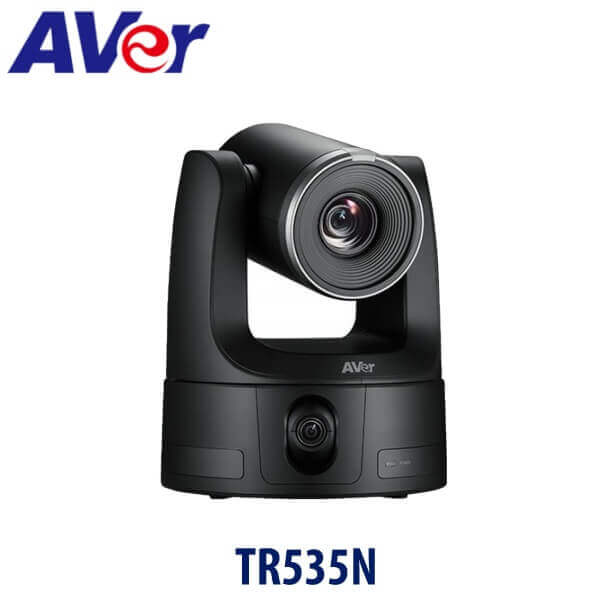

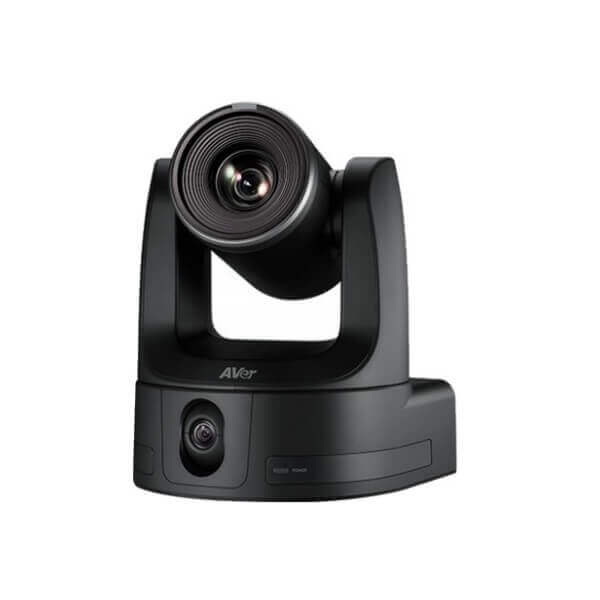

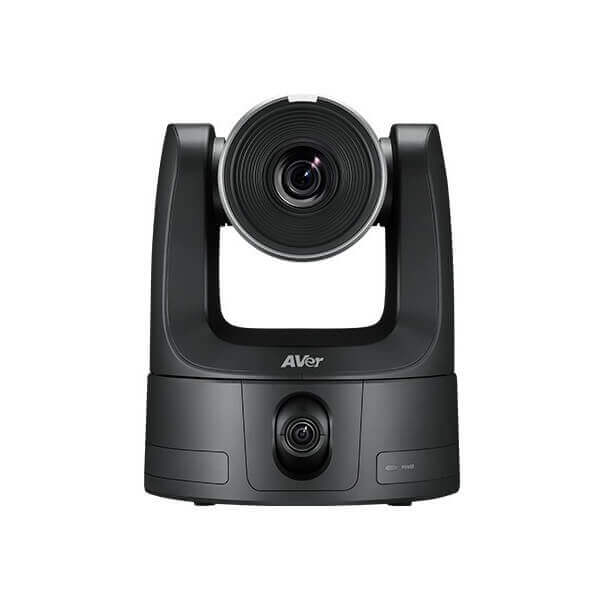

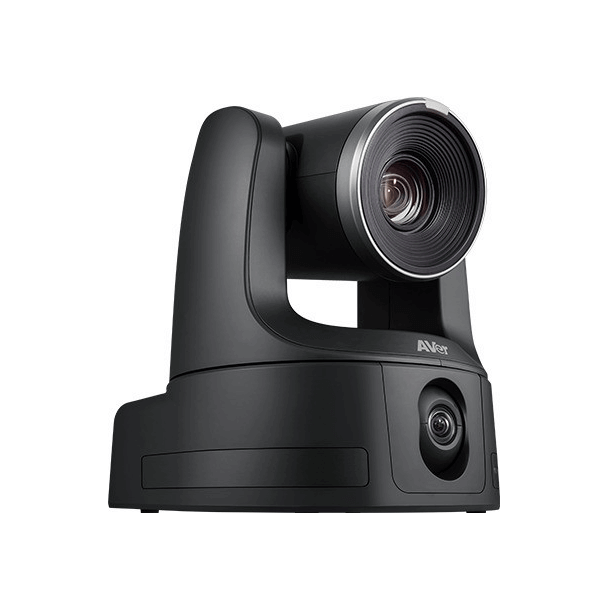

Aver TR535N Dual Lens Auto Tracking Camera Kenya

Step into the future of streaming technology with the Aver TR535N Kenya, a state-of-the-art NDI® Dual Lens Auto Tracking Camera that is engineered to enhance your broadcasting, recording, and streaming capabilities to new heights. This innovative camera integrates full NDI® support with cutting-edge AI-powered auto tracking, ensuring superior performance across a wide variety of professional applications. With its powerful 30X zoom lens, the Aver TR535N captures even the most intricate details with stunning clarity, while its wide-angle lens guarantees comprehensive scene coverage, making it an ideal solution for fast-paced, dynamic environments.

The dual-lens configuration allows for smooth and effortless transitions between sweeping wide-angle shots and detailed close-ups, ensuring that every moment, big or small, is captured without compromise. Whether you’re broadcasting live events, recording educational seminars, or streaming interactive presentations, the TR535N offers four sophisticated AI tracking modes, each designed to provide precision and fluidity tailored to different scenarios. This versatility gives you the freedom to adapt to any situation with ease. With the Aver TR535N Kenya, you’re not just capturing video—you’re crafting an immersive, professional-grade experience defined by innovation, superior quality, and dependable performance.

Features

NDI® High Bandwidth
Dual Lens Design
4K Ultra HD Resolution
30X Optical Zoom
IP/HDMI/USB/3G-SDI
PiP Mode
4 Auto Tracking Modes
Multi-Presenter Detection
Voice Tracking
5-Year Warranty

Technical Specifications

PTZ Camera

Image Sensor
- 1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements
- 8 Megapixels
Output Resolutions
- 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 5 lux (IRE50, F1.6, 30fps)
S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual
TV Lines
- 1600 (Center)
Shutter Speed
- 1/1 to 1/10,000 sec
Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
- 30X
Digital Zoom
- 1X
Total Zoom
- 30X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
- 1 m (Wide)
- 2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°
Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec
Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
- USB
Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- USB
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
- WDR
- BLC
Power Frequencies
- 50 Hz, 60 Hz

Wide Angle Camera

Image Sensor
- 1/2.8” 4K Sony Low Lux CMOS
Effective Picture Elements
- 8 Megapixels
Output Resolutions
- 4K/30
Focal Length
- 22 mm
White Balance
- Auto
Exposure
- Auto
Viewing Angles
- DFOV: 113°
- HFOV: 105°
- VFOV: 71°
Pan / Tilt Angles
- Tilt: +18° / -90°

AI Auto Tracking Functions

Tracking Modes
- Presenter Mode
- Zone Mode
- Hybrid Mode
- Segment Mode

Privacy Protection Mechanisms

Protection Mode
- Sleep Mode

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC (48 K)
Sample Rates
- 48 KHz

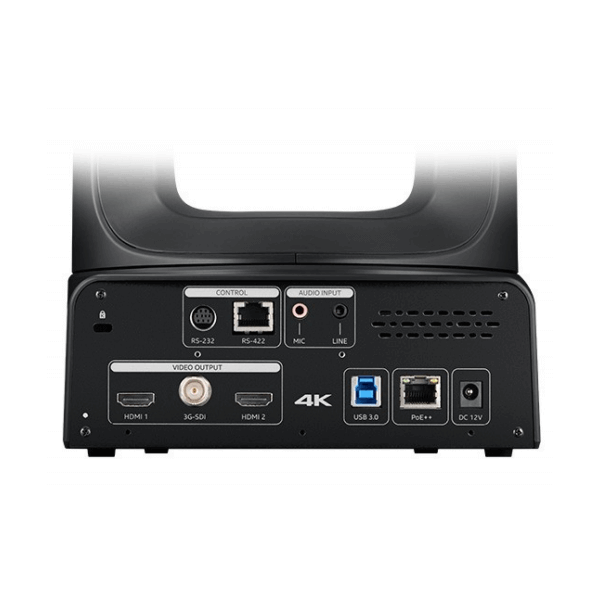

Interface

Video Outputs
- 3G-SDI, HDMI x 2, IP, USB
Audio Outputs
- 3G-SDI, HDMI x 2, IP, USB
Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/5A
Power Consumption
- 29W
PoE
- PoE++
Dimensions (W x H x D)
- 5 x 250.7 x 218.5 mm
Net Weight
- 6 (±0.1) kg
Application
- Indoor
Tally Lamp
- Yes
Security
- Kensington Slot
Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
Sustainability
- Plastic Material: ABS
- Sustainability Method: PCR-PC
- Recycled Content %: 30%

IP Streaming

Resolution
- 4K 60fps
Network Video Compress Formats
- 264, H.265, MJPEG
Network Audio Compress Formats
- AAC-LC (48 K)
Maximum Frame Rate
- 2160p 60fps
Bit-Rate Control Modes
- VBR, CBR (selectable)
Range of Bit-Rate Setting
- 512 Kbps to 64 Mbps
Network Interface
- 10 / 100 / 1000 / 2500 Base-T
Multi-Stream Capability
- 10
- 4K 60fps: RTSP (x2), HDMI (x2), USB (x2), NDI^®High Bandwidth (x1), & NDI^®HX2 (x2)
- 1080p 60fps: 3G-SDI
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
NDI^®High Bandwidth
- Yes
NDI^®HX2
- Yes
NDI^®Genlock
- N/A
NDI^®Embedded Bridge
- N/A

USB

Connector
- USB 3.2 Gen 1
Video Formats
- MJPEG, YUY2
Audio Format
- PCM
Maximum Video Resolution
- 2160p
USB Video Class (UVC)
- UVC 1.1
USB Audio Class (UAC)
- UAC 1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool
- Support Windows^®7 or later
PTZ Management
- Support Windows^®7 or later
PTZ Control Panel
- Supports iOS & iPadOS^®9 or later
PTZ Link
- Supports Windows^®7 or later, macOS^®14 or later
OBS Plugin for PTZ Cameras
- Supports Windows^®8 or later, macOS^®High Sierra v10.13 or later
CaptureShare
- Supports Windows^®7 or later, macOS^®14 or later

Warranty

Camera
- 5 Years
Accessories
- 1 Year
Package Contents
- Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
Optional Accessories
- Aver CL01 PTZ Camera Controller, L-Type Wall Mount
