Description
 AVer VC520 Pro2 Kenya

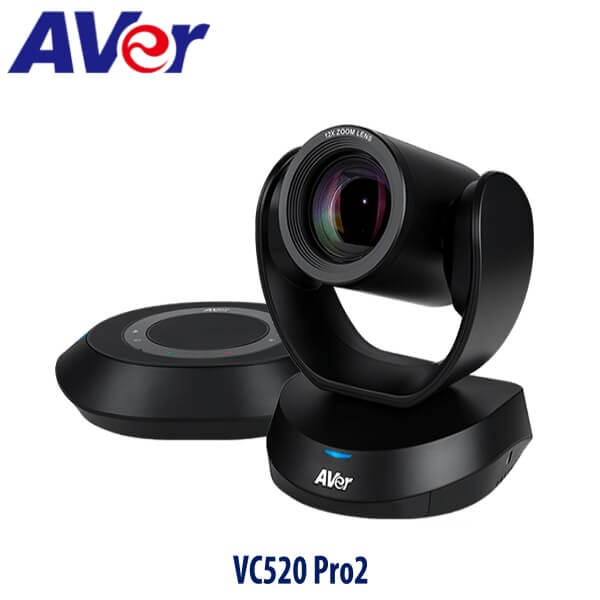

The AVer VC520 Pro2 Kenya is an enterprise-grade conferencing solution designed for medium to large conference rooms. The system features a high-quality, 1080p full HD PTZ USB 3.1 Gen 1 camera with a 12x optical zoom, 18x total zoom, True Sony WDR exposure control, and SmartFrame technology that lets you clearly see everyone in the room, under any lighting condition. The full-duplex speakerphone is equipped with a powerful speaker and a mic that picks up voices within 360° up to 15′ away. With pin-sharp image and crystal-clear audio, the system delivers a life-like audiovisual experience that enhances the quality and productivity of distance collaborations for all participants. AVer VC520 Pro2 Kenya boasts of an advanced AVer SmartFrame, IP video streaming, single USB installation, and an extended speakerphone solutions, all these features brings you an extraordinary video conferencing experience.
Key Features
- Quality detail with an 18X Total Zoom
- AVer VC520 Pro2 presents an engaging and natural meeting experience. You can zoom in up to 18x total zoom (12x optical) on whiteboard content, documents, or people at an 84° FOV up to 60′ away without any distortion. Stream and record vibrant videos in full HD 1080p60 video via USB 3.1 Gen 1 streaming or RTSP/RTMP H.264 broadcasting. The VC520 Pro2 also maximizes team collaboration with smoother video imaging than ever at up to 1080p, 60fps quality. Optimized for professional-quality video calls, the VC520 Pro2 brings brilliantly sharp, detailed video to any collaboration space.
- Efficient SmartFrame
- AVer VC520 Pro2 Kenya intelligently present every detail. Keep meetings efficient and safe with AVer’s improved SmartFrame. Next-generation facial and body detection ensures that everyone is visible on the screen up to 10 meters away, even with masks on. For effortless presentations with no remote, SmartFraming automatically shifts the camera’s focus and follows the presenter throughout each saved zone.
- Effectively capture audio
- AVer VC520 Pro2 Kenya effectively capture audio throughout the entire room with the full duplex microphone array and echo cancellation. The quality of audios in the room can also be enhanced through daisy-chain additional units to pick up voices and deliver crystal-clear sound within a 30 feet diameter to avoid crowding around one speakerphone. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms
- Livestream Videos Anytime, Anywhere
- AVer VC520 Pro2 Kenya allow you to share your real-time happenings to viewers over the internet. With H.264 RTSP/RTMP support, the Aver VC520 Pro2 Kenya offers stable livestreaming to your favorite channel in 1080p at 60pfs. Deliver first-hand information to your audience and address the latest news whenever and wherever you like.
- Keep Natural Clarity in Any Light Conditions
- The Sony sensor embedded in the Aver VC520 Pro2 enables True WDR up to 120dB, effortlessly control the light values of pixels and display constant clarity on the screen. This guarantees quality images even in poorly lit meeting rooms
- One USB Cable
- Installing the VC520 Pro2 is super easy. All you need to get set up for a call is a single USB cable. This direct connection not only saves time but also keeps your meeting table tidy and organized. Simplify your setup process and decrease installation costs with the VC520 Pro2
- Compatible Applications
- Â Aver VC520 Pro2 Kenya, is compatible to various platforms including: Zoom, Microsoft Teams, Skype for Business, Skype, Google Meet, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Vidyo, Adobe Connect, Cisco Webex, Fuze, GoToMeeting, Microsoft Lync, vMix, WebRTC, Wirecast, XSplit
Specifications
-
- Camera
-
- Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
- Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
- SmartFrame for automatic FOV adjustment to fit all participants
- Innovative Preset Framing: Follow presenter based on preset areas
- True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
- Zoom: 18X total zoom (12X optical zoom)
- Field of view(D/H/V): 84.5°/76°/48°
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
- Minimum focus distance: 1.5 m
- Standard tripod screw holes and Kensington slot
- People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
-
- Motorized Pan & Tilt Movement
-
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan & tilt movement
-
- Video Format
-
- YUV, YUY2, MJPEG, NV12
- Network video compression format: H.264
- Network protocols: RTSP, RTMP
-

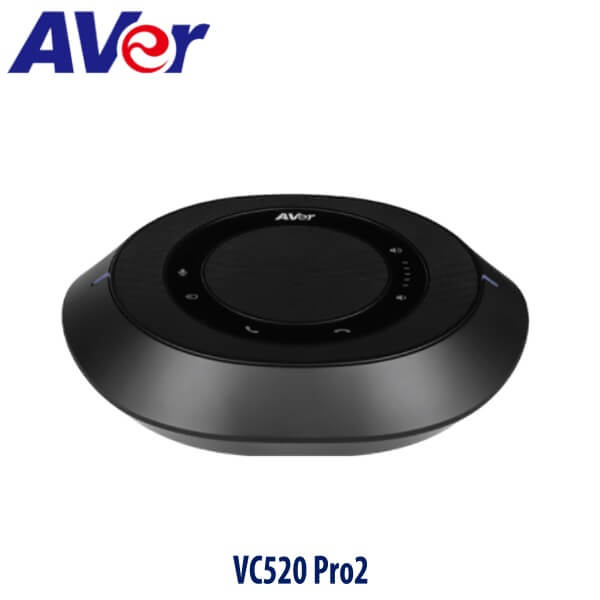

- Speakerphone
-
- Full duplex microphone array with echo cancellation
- Advanced noise suppression
- Dual-microphone array
- 3.5 mm phone-in jack
- 3.5 mm line out
- Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
- Touch controls for volume down/up, mute, phone input, call, and hang-up
- Bridge phone-in and USB into one call
- Security: Kensington slot
-
- Audio Format
-
- AAC-LC
- Network protocol: RTSP, RTMP
-
- Connectivity
-
- 12V/5A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- USB 3.1 Type-B connector
- IP (RJ45)
-
- Environmental Data
-
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 20% ~ 80%
-
- Dimensions
-
- Package dimensions: 259 x 259 x 349 mm
- Package weight: 5.4 kg
- Camera: 142.7 x 153 x 182 mm/1.45 kg
- Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
-

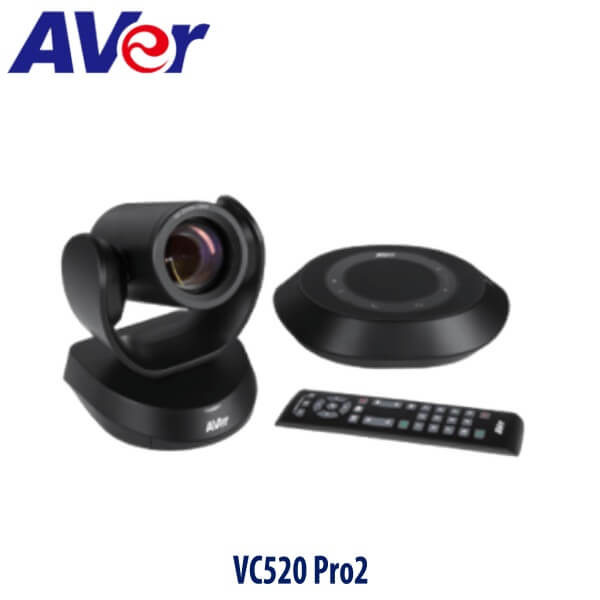

- Package Contents
-
- VC520 Pro2 Camera
- VC520 Pro2 Speakerphone
- Remote control
- Power adapter
- Power cord (6 ft/1.8 m)
- USB2.0 type-B to type-A cable (16.5 ft/5 m)
- Camera to Speakerphone Cable (33ft/ 10m)
- 3.5 mm aux cable (3 ft/0.9 m)
- QR code card
- Wall-mount bracket
- ¼” tripod screw
-
- USB
-
- 3.1 Gen 1 Type-B, backward compatible with USB 2.0
- UVC (USB video class) 1.1
- UAC (USB audio class) 1.0
-
- Control
-
- IR remote control
- VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug-and-play
- WebUI: Browser IP access via Chrome (does not support Internet Explorer)
- PTZApp 2
-
- Mount
-
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
-
-
- System Requirements
-
- Windows® 7/10
- Mac OS X 10.7 or higher
- Google Chromebook™ version 29.0.1547.70 or later
- Windows® 10 Enterprise (IoT) LTSC (version 1809)
-
-
- Hardware Specs
-
- 3.2 GHz Intel® Core™ i5-4460 Processor or higher
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0 port
-
- Web page browser requirement
-
- Chrome: version 76.x or above
- Firefox: version 69 or above
- IE: Not support
-
- Power Supply
-
- AC 100V ~ 240V, 50/60 Hz
- Consumption: 12V, 5A
-
- Free Applications for Meeting Collaboration
(Windows® and Mac) - EZManager 2: Camera Central Management software
- Remotely group FW/SW upgrades, control the camera, and configure settings
PTZApp 2
- Upgrade firmware automatically or manually
- Control camera
- Set parameters and adjust camera image
- Diagnose operating status
- View live video
EZLive
- Real-time streaming / annotating / snapshots / video recording
- Free Applications for Meeting Collaboration
-
- Optional Accessories
-
- Mini DIN8 to D-SUB9 RS232 adapter
- Expansion Speakerphone
- Expansion Microphone
- Foldable TV mount
- USB3.1 fiber extender 10m/20m/30m
- USB3.1 type-B to type-A cable 3m
- Ceiling mount
-
- Warranty
-
- Camera / Speakerphone: 3 years
- Accessories: 1 year
-
- Compatible Applications
-
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
