Blackmagic Atem Mini Pro ISO Kenya
The Blackmagic Atem Mini Pro ISO Kenya is a modern HDMI Live Streamer Switcher that is integrated with a 4-input function and is fitted with a control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

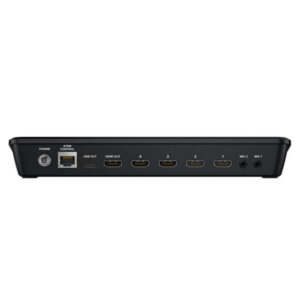

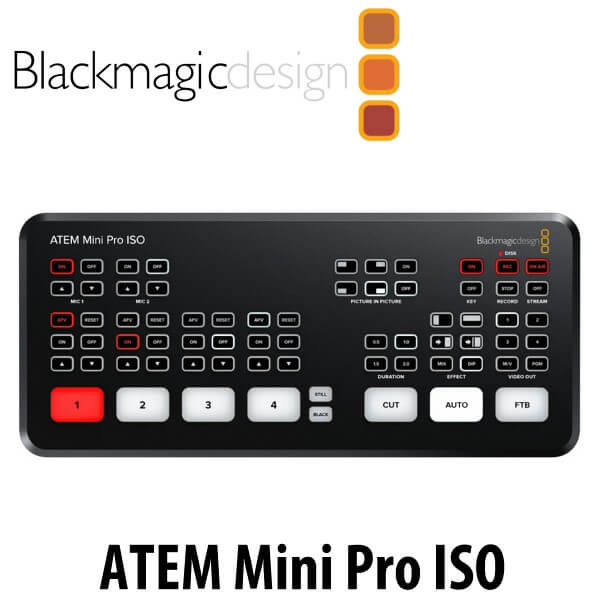

The Blackmagic Atem Mini Pro ISO Kenya retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.
Atem Mini Pro ISO Key Features
- Connecting a USB drive to the Blackmagic Atem Mini Pro ISO Kenya’s USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program
- The device has the same footprint, layout, and connections of the ATEM Mini Pro
- Stream video up to 1080p HD
- Quick stream, on-air, and record buttons
- Hardware encoder so there’s no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K/4K cameras
- Simultaneous USB recording
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on-air status, and audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
Blackmagic Atem Mini Pro ISO -Technical Specs
| Available M/E Layers | 5 M/E |
| Effect Types | 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys | 1 x Chroma, DVE 2 x Luma |
| Generators | 1 x Pattern 2 x Color |
| Audio Mixing | 2-Channel Mixing |
| Switching Type | Pushbutton |
| Color Processing | 10-Bit 4:2:2 YUV |
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 x HDMI Female |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Audio Input Connectors | 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Channels | 1 |
| Video Output Connectors | 1 x HDMI |
| Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1 x HDMI |
| Other I/O | 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB Type-C Firmware, Control Input/Output |
| IP Video | H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
| OS Compatibility | macOS 10.14 or Later Windows 10 *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | 36 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm |
| Weight | 19.4 oz / 550 g |
| Package Weight | 2.315 lb |
| Box Dimensions (LxWxH) | 11.05 x 5.7 x 4.55″ |
