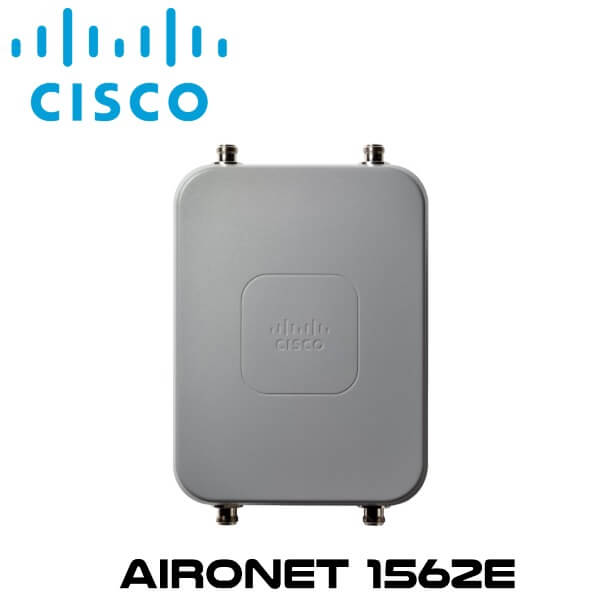

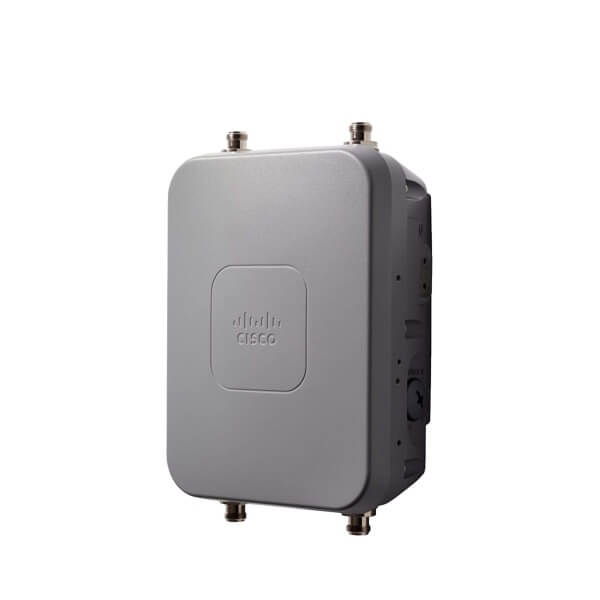

Cisco Aironet1562E Access Point Kenya

The Cisco Aironet1562E Kenya Access Point offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. It is ideal for applications requiring rugged outdoor Wi-Fi coverage. The Cisco Aironet 1562E Kenya offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, this Cisco WiFi Kenya Access Point gives network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco wireless innovations including: Cisco CleanAir® technology for spectrum intelligence; Cisco ClientLink technology for beamforming and Radio Resource Management (RRM) for dynamic transmitter channel and power control. Whether deployed as a traditional access point or wireless mesh access point, Cisco Aironet1562E Kenya provides the throughput capacity needed for today’s bandwidth-hungry devices.

Features

Multiuser MIMO (MU-MIMO)

Cisco Aironet1562E Kenya allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO

Flexible deployment modes

Cisco Aironet1562E Kenya has a variety of ways of deployment including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure

Small Form-Factor Pluggable (SFP) port

Featuring compact design with small Form-Factor Pluggable port Cisco wiFi Kenya supports optical fiber-based network connectivity for remote locations

Improved performance for multiple client devices

The 802.11ac Wave 2 access points use MU-MIMO technology, which allows different data streams to all flow at once from the access point to multiple 802.11ac Wave 2-supported devices. Now, multiple 802.11ac Wave 2 devices can connect at the same time, getting the information they need quicker.

5-GHz support

The Cisco Aironet1562E Kenya doubles the scale of 5 -GHz mobile devices and raises the performance of high-density environments.

4G LTE Coexistence

The Cisco Aironet 1560 Series includes robust filtering around the 2.4 GHz unlicensed band to block out nearby licensed 4G LTE cellular signals.

Cisco Flexible Antenna Port technology

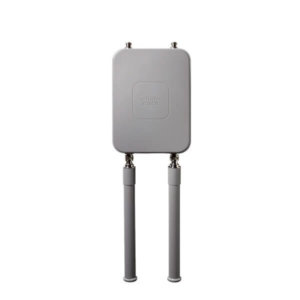

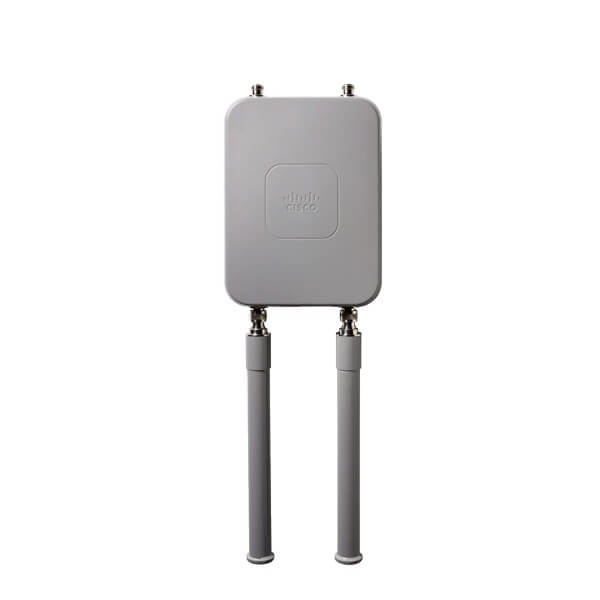

Cisco Aironet1562E Kenya uses software configurable for either single- or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimize radio coverage.

Cisco Mobility Express

This Cisco WiFi Kenya solution is designed to bring enterprise-class wireless access to small and medium-sized networks. Easy to set up with low maintenance, Mobility Express includes advanced features from Cisco and does not require a physical controller appliance.

Cisco High Density Experience (HDX)

Cisco HDX comes standard on the 1560, giving this access point top-of-the-line network efficiency over a large number of wireless clients. HDX uses customized chipsets to target the needs of high-density networks. It is built with best-in-class RF architecture and gives a better user experience for high-performance applications.

Specifications

802.11ac Wave 1 and 2 capabilities	1562I : 3 x 3 MIMO with three spatial streams 1562E/D 2 x 2 MIMO with two spatial streams Multi- and single-user MIMO Maximal Ratio Combining (MRC) 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic-Shift-Diversity (CSD) support
802.11n (and related) capabilities	1562I : 3 x 3 MIMO with three spatial streams 1562E/D : 2 x 2 MIMO with two spatial streams MRC 20- and 40-MHz channels PHY data rates up to 450 Mbps Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 DFS CSD support
Data rates supported	802.11a : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 and 5 GHz:
	MCS Index	GI4 = 800 ns					GI = 400 ns
		20-MHz Rates (Mbps)			40-MHz Rates (Mbps)			20-MHz Rates (Mbps)			40-MHz Rates (Mbps)
	0	6.5			13.5			7.2			15
	1	13			27			14.4			30
	2	19.5			40.5			21.7			45
	3	26			54			28.9			60
	4	39			81			43.3			90
	5	52			108			57.8			120
	6	58.5			121.5			65			135
	7	65			135			72.2			150
	8	13			27			14.4			30
	9	26			54			28.9			60
	10	39			81			43.3			90
	11	52			108			57.8			120
	12	78			162			86.7			180
	13	104			216			115.6			240
	14	117			243			130			270
	15	130			270			144.4			300
	16	19.5			40.5			21.7			45
	17	39			81			43.3			90
	18	58.5			121.5			65			135
	19	78			162			86.7			180
	20	117			243			130			270
	21	156			324			173.3			360
	22	175.5			364.5			195			405
	23	195		405			216.7			450
	802.11ac Data Rates (5 GHz)
	Spatial Streams	MCS	GI = 800 ns						GI = 400 ns
			20 MHz			40 MHz	80 MHz		20 MHz	40 MHz		80 MHz
	1	0	6.5			13.5	29.3		7.2	15		32.5
	1	1	13			27	58.5		14.4	30		65
	1	2	19.5			40.5	87.8		21.7	45		97.5
	1	3	26			54	117		28.9	60		130
	1	4	39			81	175.5		43.3	90		195
	1	5	52			108	234		57.8	120		260
	1	6	58.5			121.5	263.3		65	135		292.5
	1	7	65			135	292.5		72.2	150		325
	1	8	78			162	351		86.7	180		390
	1	9	–			180	390		–	200		433.3
	2	0	13			27	58.5		14.4	30		65
	2	1	26			54	117		28.9	60		130
	2	2	39			81	175.5		43.3	90		195
	2	3	52			108	234		57.8	120		260
	2	4	78			162	351		86.7	180		390
	2	5	104			216	468		115.6	240		520
	2	6	117			243	526.5		130	270		585
	2	7	130			270	585		144.4	300		650
	2	8	156			324	702		173.3	360		780
	2	9	–			360	780		–	400		866.7
	3	0	19.5			40.5	87.8		21.7	45		97.5
	3	1	39			81	175.5		43.3	90		195
	3	2	58.5			121.5	263.3		65	135		292.5
	3	3	78			162	351		86.7	180		390
	3	4	117			243	526.5		130	270		585
	3	5	156			324	702		173.3	360		780
	3	6	175.5			364.5	–		195	405		–
	3	7	195			405	877.5		216.7	450		975
	3	8	234			486	1053		260	540		1170
	3	9	260			540	1170		288.9	600		1300
Frequency band and 20- MHz operating channels (regulatory domains)	A : 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels B : 2.412 to 2.462 GHz, 11 channels 5.180 to 5.240 GHz, 4 channels 5.260 to 5.320 GHz, 4 channels 5.500 to 5.720 GHz, 12 channels 5.745 to 5.825 GHz, 5 channels C: 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels D : 2.412 to 2.462 GHz, 11 channels 5.745 to 5.865 GHz, 7 channels E : 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels F : 2.412 to 2.472 GHz, 13 channels 5.745 to 5.805 GHz, 4 channels G : 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels H : 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels I : 2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels (Supported countries – *Egypt) K : 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.805 GHz, 4 channels L : 2.412 to 2.472 GHz, 13 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.865 GHz, 7 channels M : 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.805 GHz, 4 channels N : 2.412 to 2.462 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels Q : 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels R : 2.412 to 2.472 GHz, 13 channels 5.260 to 5.320 GHz, 4 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels S : 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels T : 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels Z : 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels
Maximum number of nonoverlapping channels	2.4 GHz 802.11b/g : 20 MHz : 3 802.11n : 20 MHz : 3 40 MHz : 1 (hardware capable)						5 GHz 802.11a : 20 MHz : 27 802.11n : 20 MHz : 27 40 MHz : 13 802.11ac : 20 MHz : 27 40 MHz : 13 80 MHz : 6
Receive Sensitivity
			2.4 GHz Radio						5 GHz Radio
	Spatial Streams		1562I			1562D/E			1562I	1562D/E
802.11/11b
1 Mbps	1	-100				-98	NA			NA
11 Mbps	1	-88				-87	NA			NA
802.11a/g
6 Mbps	1	-92				-90	-94			-93
24 Mbps	1	-86				-83	-89			-88
54 Mbps	1	-76				-74	-80			-79
802.11n HT20
MCS0	1	-90				-89	-91			-90
MCS4	1	-84				-82	-88			-86
MCS7	1	-77				-75	-80			-78
MCS8	2	-89				-88	-90			-89
MCS12	2	-82				-80	-85			-83
MCS15	2	-75				-72	-78			-76
MCS16	3	-89					-90
MCS20	3	-81					-84
MCS23	3	-73					-76
802.11n HT40
MCS0	1	-88				-86	-90			-90
MCS4	1	-82				-80	-85			-83
MCS7	1	-75				-74	-78			-76
MCS8	2	-87				-86	-90			-90
MCS12	2	-80				-78	-82			-81
MCS15	2	-72				-70	-75			-73
MCS16	3	-87					-90
MCS20	3	-78					-81
MCS23	3	-71					-74
802.11ac VHT20
MCS0	1						-95			-94
MCS4	1						-88			-86
MCS7	1						-81			-79
MCS8	1						-77			-75
MCS0	2						-94			-93
MCS4	2						-86			-84
MCS7	2						-78			-76
MCS8	2						-74			-72
MCS0	3						-93
MCS4	3						-85
MCS7	3						-78
MCS8	3						-72
MCS9	3						-69
802.11ac VHT40
MCS0	1						-91			-90
MCS4	1						-85			-84
MCS7	1						-79			-77
MCS8	1						-75			-73
MCS9	1						-73			-71
MCS0	2						-91			-90
MCS4	2						-83			-82
MCS7	2						-76			-74
MCS8	2						-73			-70
MCS9	2						-71			-68
MCS0	3						-91
MCS4	3						-82
MCS7	3						-74
MCS8	3						-69
MCS9	3						-68
802.11ac VHT80
MCS0	1						-88			-88
MCS4	1						-83			-81
MCS7	1						-75			-73
MCS8	1						-71			-69
MCS9	1						-69			-67
MCS0	2						-88			-88
MCS4	2						-80			-78
MCS7	2						-73			-71
MCS8	2						-69			-67
MCS9	2						-67			-65
MCS0	3						-88
MCS4	3						-78
MCS7	3						-71
MCS8	3						-67
MCS9	3						-65
Maximum conducted transmit power	1562I 2.4 GHz : 29 dBm with 3 antennas 5 GHz : 29 dBm with 3 antennas					1562D 2.4 GHz : 27 dBm with 2 antennas 5 GHz : 27 dBm with 2 antennas				1562E 2.4 GHz : 27 dBm with 2 antennas 5 GHz : 27 dBm with 2 antennas
Interfaces	WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in SFP port (fiber or electrical) Management console port (RJ-45) Multicolor LED DC power input Reset button
Uplink options	Ethernet, SFP, and wireless mesh
Dimensions (L x W x D)	1562I : 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) 1562D : 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm) 1562E : 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight	1562I : 5.6 lb (2.5 kg) 1562D : 5.7 lb (2.6 kg) 1562E : 5.6 lb (2.5 kg)
Environmental	Operating temperature : –40 to 65°C (–40 to 149°F) ambient air with no solar loading –40 to 55°C (–40 to 131°F) ambient air with solar loading Storage temperature : –40 to 85°C (–40 to 185°F) Humidity : 5 – 95%, non-condensing Wind resistance : Up to 100-mph sustained winds Up to 165-mph wind gusts
Environmental ratings	IEC 60529 IP67 NEMA Type 4X Icing protection NEMA 250-2008 Corrosion NEMA 250-2008 (600 hours) Solar radiation EN 60068-2-5 (1200 W/ m2) Vibration MIL-STD-810
Antennas	Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz) Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz) Dual Band AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz Omni AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz Omni AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz Omni AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional Single Band 2.4 GHz AIR-ANT2450V-N= 5 dBi (2.4 GHz), Omni AIR-ANT2450VG-N= 5 dBi (2.4 GHz), Omni, vertical polarized AIR-ANT2450HG-N= 5 dBi (2.4 GHz), Omni, horizontal polarized AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized 5 GHz AIR-ANT5150VG-N= 5 dBi (5GHz), Omni, vertical polarized AIR-ANT5150HG-N= 5 dBi (5GHz), Omni, horizontal polarized AIR-ANT5180V-N= 8 dBi (5GHz), Omni AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized
Powering options	AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter) 44–57 VDC input Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug) AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable) AIR-PWRINJ6= (indoor, 802.3at) Note : If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
Power consumption	1562I 32 W (3×3:3, full power) 1562D/E 25 W
Compliance	Safety UL60950, 2 nd Edition CAN/CSA-C22.2 No. 60950, 2 nd Edition IEC 60950, 2 nd Edition EN 60950, 2 nd Edition Immunity <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform ANSI/IEEE C62.41 EN61000-4-5 Lev el 4 AC Surge Immunity EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity EN61000-4-3 Lev el 4 EMC Field Immunity EN61000-4-2 Lev el 2 ESD Immunity EN60950 Overvoltage Category IV Radio Approvals FCC Part 15.247, 15.407 FCC Bulletin OET-65C RSS-247 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 EMI and Susceptibility FCC part 15.107, 15.109 ICES-003 EN 301 489-1, -17 Security Wireless bridging/mesh (future availability) X.509 digital certificates MAC address authentication Advanced Encryption Standard (AES) Wireless Access 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module – (EAP-SIM), and Cisco LEAP VPN pass-through IP Security (IPsec) Layer 2 Tunneling Protocol (L2TP) MAC address filtering
