Cisco Aironet1572IC Kenya

Description

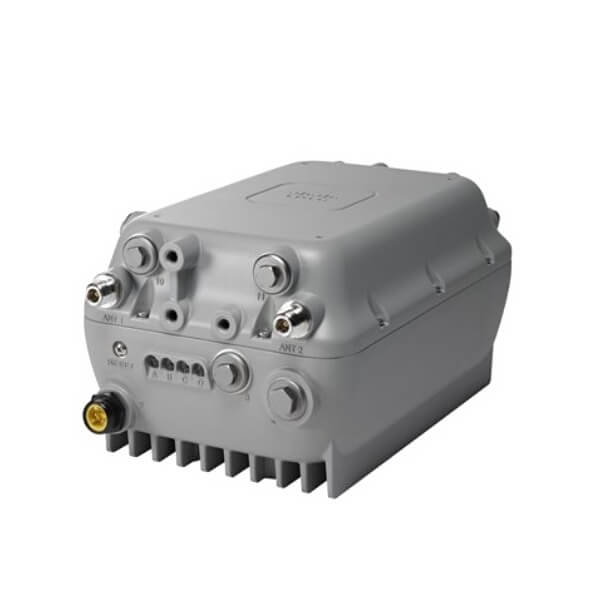

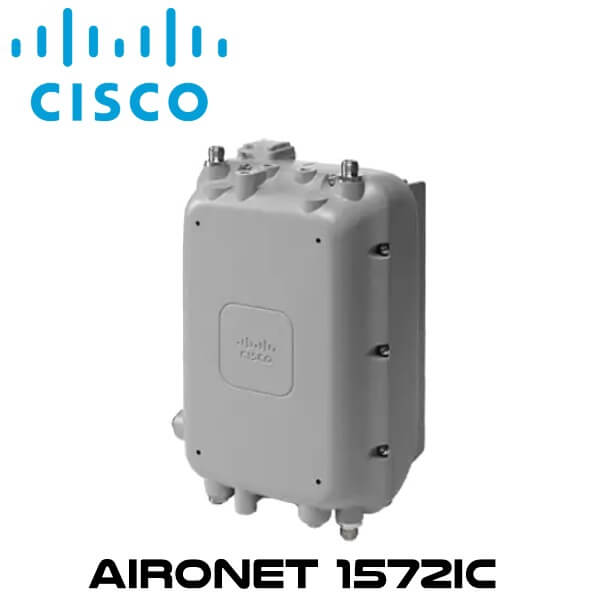

Cisco Aironet1572IC Access Point Kenya

The Cisco Aironet1572IC Kenya provides higher throughput over a larger area with more pervasive coverage. This Cisco WiFi Kenya is also well suited to high-density environments where many users in close proximity generate RF interference that needs to be managed. It is the industry’s excellent performing outdoor AP and supports the Wi-Fi standard, 802.11ac, with data connection speeds up to 1.3 Gbps. This industrial-grade AP supports 4×4 multiple-input and multiple output (MIMO) smart antenna technology and three spatial streams for optimum performance.

The Cisco Aironet1572IC Kenya meets the demanding needs of customers across a broad range of industries spanning enterprises and service providers. It offers a scalable and secure mesh architecture for high-performance Wi-Fi services. This Cisco WiFi Kenya also addresses the expanding demand for Wi-Fi access services, network-to-network mobility, video surveillance, and cellular data offload to Wi-Fi. The Cisco Aironet1572IC Kenya builds and expands on the successful 1550 series legacy of being the Wi-Fi outdoor AP of choice by service providers needing carrier-grade, ruggedized devices that are easy to deploy and maintain.

Features

802.11ac support with 4×4 MIMO, three spatial streams

Cisco Aironet1572IC Kenya provides higher data rates over a greater area with pervasive coverage than any competing AP. Provides a data rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points.

Maximum RF radiated power allowable on both 2.4 and 5 GHz radios

Allows use of the fewest number of APs to get the greatest possible area coverage and highest throughput rates.

Cisco High-Density Experience (HDX

Helps maintain network performance as Wi-Fi clients, APs, and high-bandwidth applications join and roam the network.

Cisco CleanAir Technology

Cisco Aironet1572IC Kenya packs CleanAir Technology that provides spectrum intelligence across 20-, 40-, and 80-MHz channels to combat performance problems caused by wireless interference. Also part of Cisco HDX technology.

Cisco ClientLink 3.0

Cisco Aironet1572IC Kenya utilize true beamforming smart-antenna technology to improve downlink performance by up to 6 dB to all mobile dev ices, including one-, two-, and three-spatial-stream devices on 802.11ac. Increases smartphone and tablet battery efficiency by up to 50 percent. Part of Cisco HDX technology

MIMO equalization

Boosts performance and reliability by reducing the impact of signal fade and associated “dead zones”

Cisco Flexible Antenna Port technology

Makes the AP’s external antenna ports software-configurable for either four dual-band (2.4 and 5 GHz) configuration or two pairs of single-band configuration with one pair operating at 2.4 GHz and the other at 5 GHz. This Cisco WiFi Kenya provides the operator with added flexibility in coverage options

Modular architecture design

The architecture of the Cisco Aironet1572IC Kenya provides the flexibility for a potential add-on module for future proofing and investment protection. For example, you could add external modules with technology options such as a 4G LTE picocell or a sensor. Such a module could be field-upgradeable to an existing Cisco Aironet1572IC Kenya network

GPS support

Keeps track of the location of all outdoor APs deployed. With a built -in GPS receiver, the coordinates of the AP can be located by your WLAN controller or management system

Central management using Cisco Prime Infrastructure

Network lifecycle management tool that integrates with Cisco WiFi Kenya and WLAN controllers to configure and manage y our wireless networks. Helps prevent costly maintenance service calls to outdoor locations. Network administrators have a single solution for RF prediction, policy provisioning, network optimization, troubleshooting, security monitoring, and WLAN system management.

Specifications

General

Manufacturer : CISCO DS HARDWARE DIRECT
Brand : Cisco
Product Line : Cisco Aironet
Model : 1572IC
Packaged Quantity : 1

Antenna

Antenna Form Factor : Internal
Ruggedized Design : Outdoor
Built-in Devices : GPS, Modem

Modem

Analog Ports Qty : 1

Protocols & Specifications : DOCSIS 3.0

Line Properties

Line Coding Form : CCK

Networking

Type : Wireless access point
Form Factor : External
Connectivity Technology : Wireless
Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol : 802.11a/b/g/n/ac
Network / Transport Protocol : IPSec, L2TP
Remote Management Protocol : CLI, HTTP
Data Transfer Rate : 1.3 GBps
Wi-Fi Bands : 2.4 GHz, 5 GHz
Spread Spectrum Method : DSSS
Status Indicators Status

Features

4T4R MIMO technology
Auto-sensing per device
Cisco Flexible Antenna Port technology
CleanAir 2.0 technology
ClientLink 3.0 technology
Cyclic shift diversity (CSD)
DFS support
MAC address filtering
Maximum Ratio Combining (MRC)
Pole mountable
Power over cable (PoC)
Reset button
VPN passthrough
Wall mountable

Compliant Standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, Wi-Fi CERTIFIED

Interface Provided

1 x – SFP (mini-GBIC)
1 x 1000Base-T – RJ-45
1 x antenna
1 x console – RJ-45
1 x modem

Power Device

Nominal Voltage : AC 40 – 90 V / DC 10 – 16 V

Miscellaneous

Encryption Algorithm AES, LEAP, PEAP, TKIP, TLS, TTLS, WPA, WPA2
Authentication Method: Extensible Authentication Protocol (EAP), X.509 certificates

Compliant Standards

ANSI C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268, EN 300 328, EN 300.328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 301.489.1, EN 301.489.17, EN 301.893, EN 60950-1 Second Edition, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-1 Second Edition, IP67, NEMA Type 4X, OET 65 C, RSS-102, RSS-210, UL 60950-1 Second Edition

Dimensions & Weight
