Description

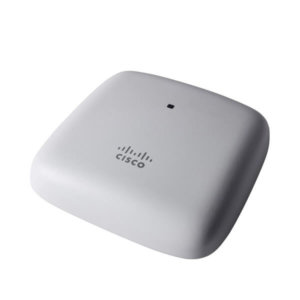

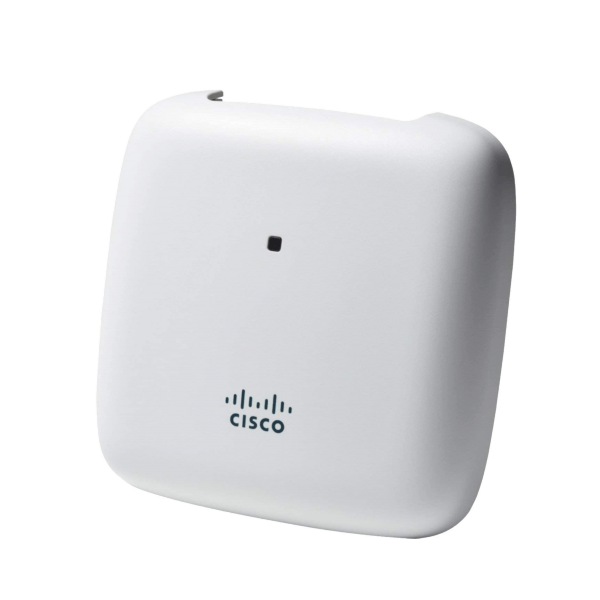

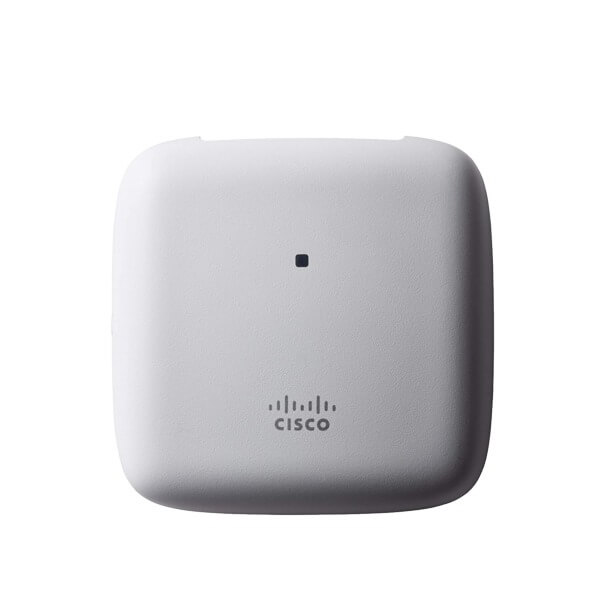

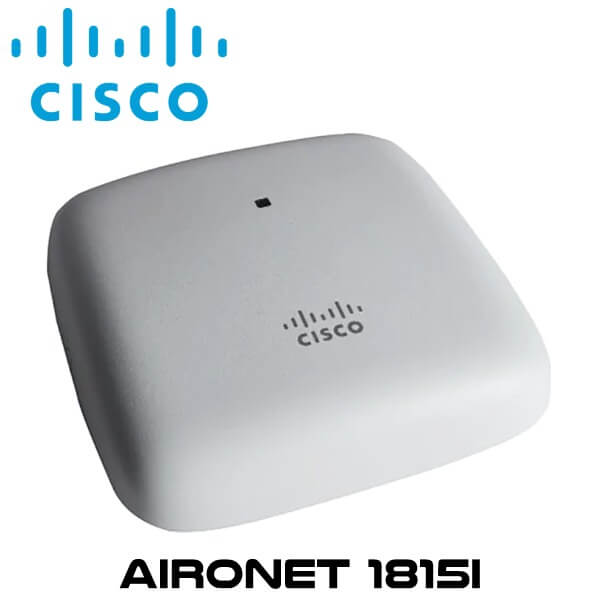

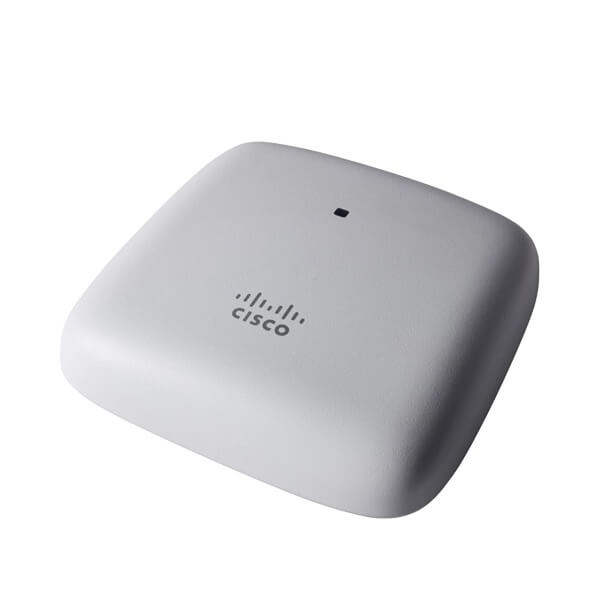

Cisco Aironet1815i Access Point Kenya

The Cisco Aironet1815i Kenya delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 It also meets the growing requirements of wireless networks by delivering a better user experience. The Cisco Aironet1815i Kenya extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

By adhering to the 802.11ac Wave 2 standard, the Cisco Aironet1815i Kenya offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

With the Cisco Aironet1815i Kenya, you can secure remote workers or the micro-office. Any Cisco Aironet or Catalyst access point can function as an Office Extend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how.

Features

MU-MIMO

Multiuser (MU) Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO). 802.11ac Wave 2 with 2×2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Cisco Mobility Express solution

Cisco Cisco Aironet1815i Kenya offer flexible deployment through Cisco Mobility Express Software is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller.

Integrated Bluetooth 4.1

Cisco Aironet1815i access point is integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking (future availability).

Increased wireless performance

The Cisco Aironet1815i wifi Kenya access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

This Cisco WiFi Kenya allows wired access via a single RJ-45 10/100/1000 auto-detection port. It supports full operation modes using PoE 802.3af power.

Mounting

Featuring small form factor, Cisco Aironet1815i Kenya is designed with flexible mounting options in mind. You can mount them directly on the ceiling or a wall. They are also easy to install.

Specifications

Authentication and security	Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) 802.11r 802.11i
Software	Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.3.112.0/83MR1 or later Cisco Mobility Express
Supported WLAN controllers	Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers. Cisco Mobility Express
Maximum clients	Maximum number of associated wireless clients : 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	2×2 single-user/multiuser MIMO with two spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
Ethernet ports	Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)	Integrated Bluetooth 4.1 (including BLE) radio Maximum transmit power: 4 dBm Antenna gain: 2 dBi
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
	802.11n data rates on 2.4 GHz:
	MCS Index			GI = 800 ns		GI = 400 ns
				20-MHz Rate (Mbps)		20-MHz Rate (Mbps)
	0			6.5		7.2
	1			13		14.4
	2			19.5		21.7
	3			26		28.9
	4			39		43.3
	5			52		57.8
	6			58.5		65
	7			65		72.2
	8			13		14.4
	9			26		28.9
	10			39		43.3
	11			52		57.8
	12			78		86.7
	13			104		115.6
	14			117		130
	15			130		144.4
	802.11ac data rates on 5 GHz:
	MCS Index	Spatial Streams		GI = 800 ns		GI = 400 ns
			20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)	20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)
	1		6.5	13.5	29.3	7.2	15	32.5
	1		13	27	58.5	14.4	30	65
	1		19.5	40.5	87.8	21.7	45	97.5
	1		26	54	117	28.9	60	130
	1		39	81	175.5	43.3	90	195
	1		52	108	234	57.8	120	260
	1		58.5	121.5	263.3	65	135	292.5
	1		65	135	292.5	72.2	150	325
	1		78	162	351	86.7	180	390
	1		–	180	390	–	200	433.3
	2		13	27	58.5	14.4	30	65
	2		26	54	117	28.9	60	130
	2		39	81	175.5	43.3	90	195
	2		52	108	234	57.8	120	260
	2		78	162	351	86.7	180	390
	2		104	216	468	115.6	240	520
	2		117	243	526.5	130	270	585
	2		130	270	585	144.4	300	650
	2		156	324	702	173.3	360	780
	2		–	360	780	–	400	866.7
Maximum number of non-overlapping channels	A (A regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels B (B regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.720 GHz; 12 channels 5.745 to 5.825 GHz; 5 channels C (C regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels D (D regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels E (E regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.250 to 5.350 GHz; 4 channels 5.725 to 5.825 GHz; 4 channels G (G regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.865 GHz; 7 channels H (H regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels I (I regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels					K (K regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.620 GHz; 7 channels 5.745 to 5.805 GHz; 4 channels N (N regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels R (R regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.660 to 5.700 GHz; 3 channels 5.745 to 5.805 GHz; 4 channels S (S regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels 5.745 to 5.825 GHz; 5 channels T (T regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.280 to 5.320 GHz; 3 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels
Note : This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings	2.4 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW)					5 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78mW)
Note : The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas	2.4 GHz, gain 2 dBi 5 GHz, gain 4 dBi
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket) : 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight	Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental	Operating Temperature : 32° to 104°F (0° to 40°C) Humidity : 10% to 90% (noncondensing) Max. altitude: 9843 ft (3000 m) @ 40°C Nonoperating (storage and transportation) Temperature : -22° to 158°F (-30° to 70°C) Humidity : 10% to 90% (noncondensing) Max. altitude : 15,000 ft (4500 m) @ 25°C
System	1 GB DRAM 256 MB flash 710 MHz quad core
Input power requirements	Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Powering options	802.3af/at Ethernet switch Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	8.3W (maximum, on PoE)
Physical security	Torx security screw, included with the access point
Mounting	Included with the access point: mounting bracket AIR-AP-BRACKET8
Accessories	Mounting bracket : AIR-AP-BRACKET8= (available as spare) Physical security kit : AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
Compliance	Safety UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 60601-1-2 Radio approvals FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac Security 802.11i, WPA3, WPA2, WPA 802.1X AES Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 EAP-Flexible Authentication via Secure Tunneling (FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM) Multimedia Wi-Fi Multimedia (WMM) Other FCC Bulletin OET-65C RSS-102
