Description

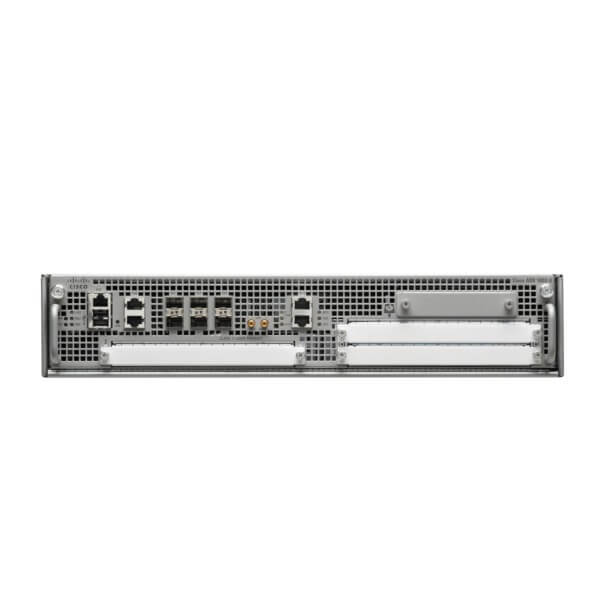

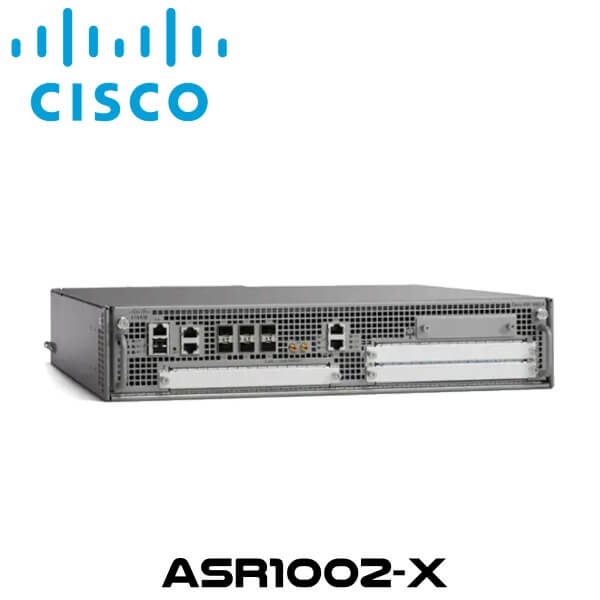

Cisco ASR1002X Router Kenya
The Cisco ASR1002X Kenya is Aggregation Service Router that aggregates multiple WAN connections and network services, including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design. The Cisco ASR1002X Kenya supports Cisco IOS XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 1000 Series Embedded Services Processors (ESPs), which are based on Cisco QuantumFlow Processor technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), deep packet inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of data center interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.
Cisco ASR1002X Kenya sits at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider points of presence (POPs). The Cisco ASR1002X Kenya will benefit the following types of customers :
- Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage ramp up. Cisco ASRs consolidate these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations.
- Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers. Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers.
- Existing Cisco 7200 Series Router (End-of-Sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design.
Features
High Availability
- Redundant hardware components and power supplies
- Cisco ASR1002X Kenya provides system and business continuity.
- Redundant Route Processors and Embedded Services Processors in ASR 1006 and ASR 1013.
- Redundant instances of Cisco IOS XE Software in ASR 1001, ASR 1001-X, ASR 1002, ASR 1002-X, and ASR1004.
- Stateful interchassis redundancy
- Redundant hardware combined with modular software contains faults preventing systemwide failure.
- Cisco ASR1002X Kenya enables redundancy across routers by using a pair of routers to act as backup for each other. Provides 99.999% (“five-nines”) availability for consistent, high-performance user application experiences
In-Service Software Upgrade (ISSU) support
- No need to schedule downtime windows; changes are made while Cisco ASR1002X Kenya keeps on working, with nonstop routing availability.
Cisco IOS XE Software Sub-Package Mode
- Ability to upgrade individual software components with reduced upgrade time.
Scalable Capacity and Throughput
Cisco QuantumFlow Processor-based platform
- Cisco ASR1002X Kenya enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration
- Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Control and forwarding-plane separation
- Ability to scale control plane and data plane independent of each other.
Investment Protection
Software modularity
- Allows you to mix and match the services that best meet your business needs; no “wasted” investments on capabilities you don’t need.
Pay-as-you-grow licensing with “-X” models
- When you need greater throughput, you simply activate it with a change in software license, rather than having to expend capital for additional hardware.
Cisco Shared Port Adapters (SPAs)
- Allow you to reuse your investment in network I/O across platforms.
Cisco Network Interface Modules (NIMs)
- Allow you to reuse your investment in network I/O across platforms.
Specifications
| Physical specifications* | Height : 3.5 in. (88.9 mm) Width : 17.2 in. (437.4 mm) Depth : 18.15 in. (461.0 mm)Weight :
Note : The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated. |
| Default Memory | 8-GB DRAM shared across RP, ESP, and SIP |
| Shared port adapters | 3 SPA slots |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route Processor | Integrated in the chassis : Cisco ASR 1002-X Series Route Processor with Dual Core Processor |
| Number of SIPs or Ethernet Line Cards Supported | Integrated in chassis |
| Redundancy | Software : Yes |
| Built-in Gigabit Ethernet Ports | Yes : 6 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet Port | No |
| Network Interface Module | No |
| Integrated daughter card (IDC) | No |
| Airflow | Front-to-back |
| Processor Module Comparison and Specifications | |
| ESP support |
|
| ESP bandwidth | 5 to 36 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet Line Cards | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Yes : up to 4-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.7.0S |
| Rack-mounting | Yes : 19-inch |
| Wall-mounting | No |
| External USB flash memory | 4-GB USB flash-memory support |
| Power Requirements | |

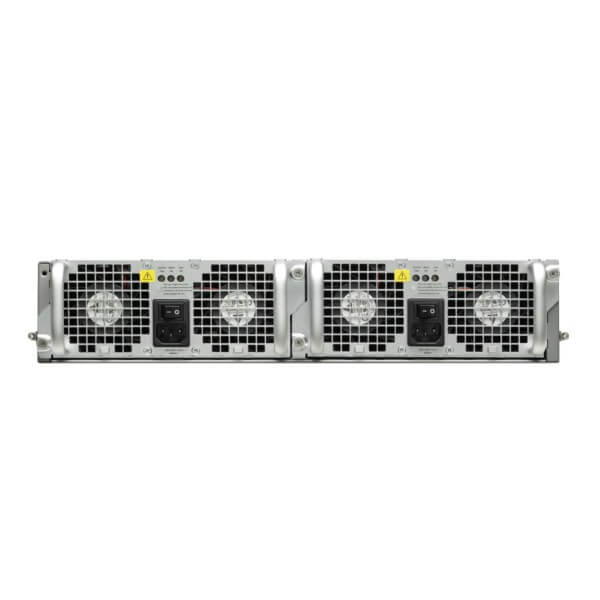

| Redundant power supply | Yes : Dual power supplies by default; option of either AC or DC power supply Note : A mix of one AC and one DC power supply is not supported. |
| Power input |
|
| Power consumption |
|
| Airflow | Front-to-back |
| Environmental Specifications | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131°F (-5 to 55°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -38 to 150°F (-39 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating Altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Regulatory Compliance | |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards |
|
| Safety Standard |
|
