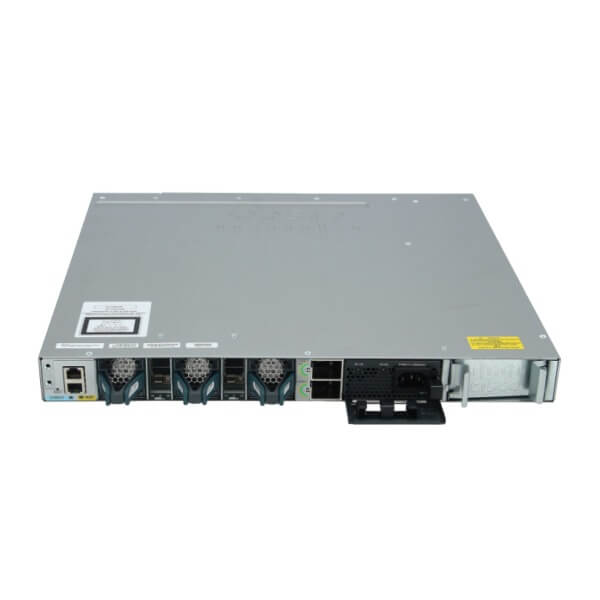

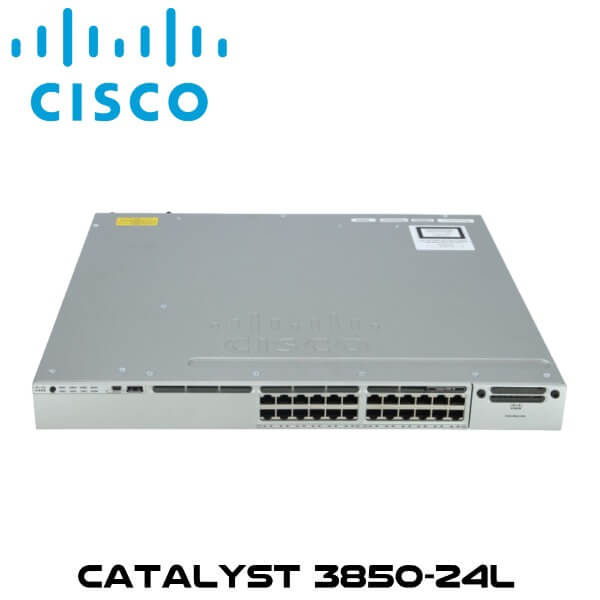

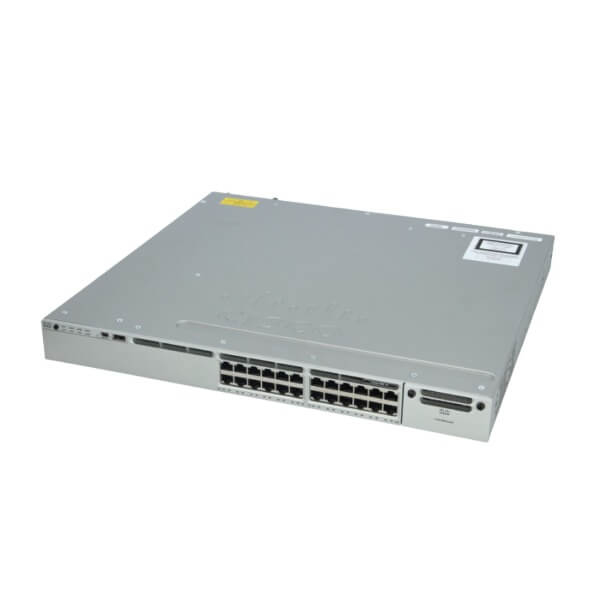

Cisco Catalyst3850-24L Network Switch Kenya
The Cisco Catalyst3850-24L Kenya is a stackable enterprise level switch and integrated with 24 Ethernet UPOE ports in LAN Base feature set. It supports up to 800W UPOE per switch and 60W per port. The Cisco Catalyst 3850 Series Switches support five optional network modules for uplink ports. The default switch configuration does not include the network module.
The Cisco Catalyst3850-24L Kenya is equipped with Cisco’s popular StackPower technology. StackPower is an innovative power sharing and redundancy technology available on the Cisco 3850 series of switches. This configuration allows members of the stack to share in one of two power pooling topologies. The first, power sharing mode, aggregates then distributes the power among the stack. Power is dynamically allocated where it’s needed. The second, redundant mode, polls the stack, identifies the supply with the greatest wattage then reserves its use for failure. Power is then allocated to the stack from the remainder of the supplies. Once the reserved power supply is activated, the stack migrates to power sharing mode automatically. This technology eliminates the need for an external RPS unit and allows users to simply add another power supply for either redundancy or additional power to the pool.
Cisco Catalyst3850-24L Features :
- AutoQoS (Automatic QoS)
- DHCP (Dynamic Host Configuration Protocol)
- DTP (Dynamic Trunking Protocol)
- PAgP (Port Aggregation Protocol)
- LACP (Link Aggregation Control Protocol)
- MDIX (Automatic media-dependent interface crossover)
- UDLD (Unidirectional Link Detection Protocol)
- SDM (Switching Database Manager)
- ARP (Local Proxy Address Resolution Protocol
- IGMP (Internet Group Management Control Protocol)
- IGMP Filtering
- VLAN Registration
- VTP (VLAN Trunking Protocol)
- Dynamic VLAN assignment
- RSPAN Remote Switch Port Analyzer
- Layer 2 Traceroute
- TFTP (Trivial File Transfer Protocol)
- NTP (Network Timing Protocol)
- Equal-cost routing and load balancing (Layer 3)
- EEM (Embedded Event Manager)
- SLAs (IP Service-level Agreements)
- Private VLAN’s
- Private VLAN Edge
- Multidomain Authentication
- Port Based ACL’s
- SSH (Secure Shell Protocol)
- Kerberos
- SNMPv3
- SPAN
- TACACS+ and Radius Authentication
- MAC Address Notification
- Multilevel security on console access
- BPDU (Bridge Protocol Data Unit)
- WTD (Weighted Tail Drop)
Technical Specs
| Ports | 48 x 10/100/1000 PoE+ |
|---|---|
| Form Factor | Desktop, Rack Mountable |
| Rack Units | 1RU |
| Software | IP Services |
| Subtype | Gigabit Ethernet |
| Flash Memory | 2 GB |
| PoE Budget | 435W |
| Network Module Slots | 1 |
| VLAN IDs | 4,000 |
| Fans | 3 Dual Redundant Fans |
| StackWise-480 | Yes |
| Stacking Bandwidth | 480 Gbps |
| Model # : | WS-C3850-48P-E |
| Warranty : | Lifetime Warranty |
| Condition : | Refurbished |
| Weight : | 17.40 lbs |
| Port Quantity | 48 |
| Series | Catalyst 3850 |
| Rack Units | 1RU |
| OSI Layer | L3 |
| Stacking | StackWise-480 & StackPower (IP Services to IP Services) |
| Deployment Pack | No |
| Energy Efficient | Yes |
| PoE Compatibility | 802.3at PoE+ |
| Ram | 4GB |
| Flash | 2GB |
| Ports | 48 x Ethernet 10/100/1000 |
| Switching Bandwidth | 176 Gbps |
| Mac Addresses | 32K |
| Operating Humidity | 5 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Stacking Bandwidth | 480 Gbps |
| Unicast Routes | 24K |
| Acoustic Noise | – |
| Available PoE Power | 435W |
| Forwarding Rate Based On 64-Byte Packets | 130.95 Mpps |
| Max Routed Ports Per 3850 Stack | 208 |
| Power Specifications | 100-240VAC , 50-60Hz , 10-5A |
| Operating Temp | 23 to 113°F (-5 to 45°C) |
| Storage Temp | -40 to 158°F (-40 to 70°C) |
| Uplink Interfaces | C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G |
| Max Active VLANS | Depends on SDM template |
| Switched Virtual Interfaces (SVI’s) | 1K |
