Cisco Catalyst9105AXI Kenya



Cisco Catalyst9105AXI Kenya

The Cisco Catalyst9105AXI Kenya Access Point is the most versatile next generation access point in enterprise grade. This Cisco Wifi Kenya provide a seamless experience, with high scaling and unmatched performance in diverse network deployments

Description

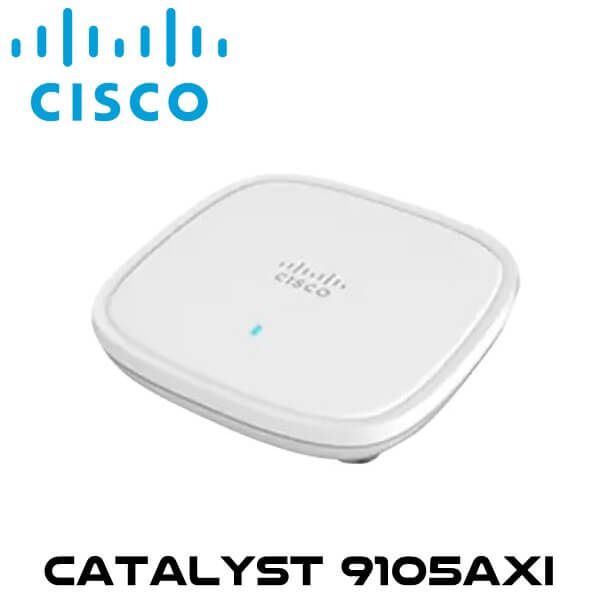

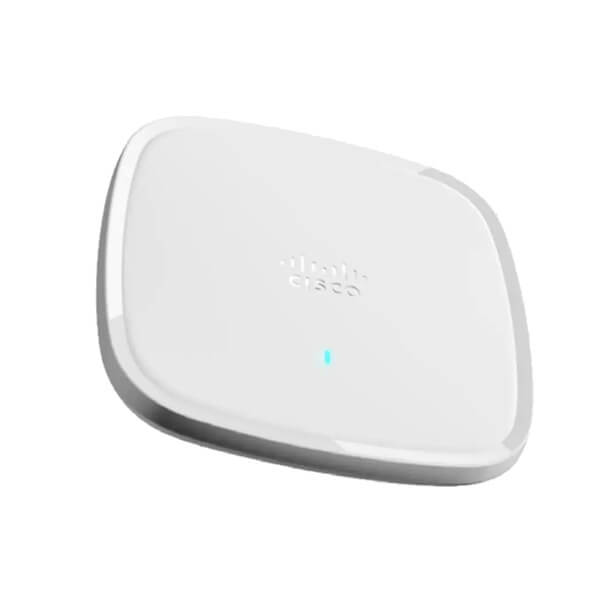

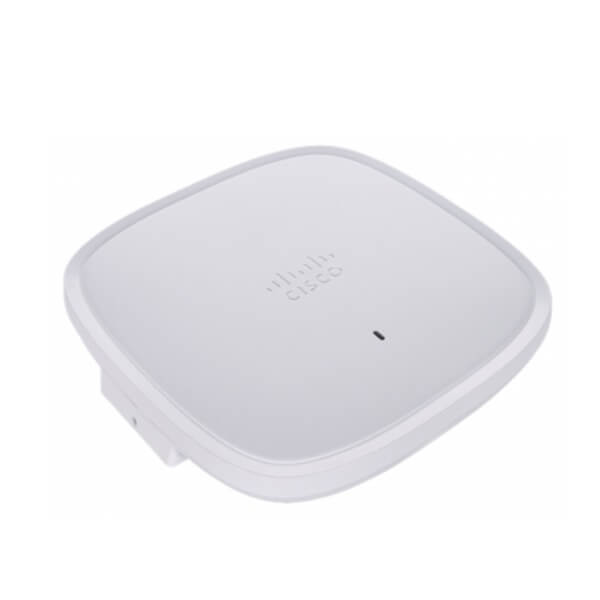

Cisco Catalyst9105AXI Access Point Kenya

The Cisco Catalyst9105AXI Kenya Access Point is the most versatile next generation access point in enterprise grade. This Cisco Wifi Kenya provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Cisco Catalyst9105AXI Kenya Access Points provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

The Catalyst Cisco Catalyst9105AXI Kenya is perfect for teleworker deployment because of its small form factor and low power consumption. This easy-to-install teleworker access point provides secure wired and wireless access for organizations with employees who work from home. The Catalyst Cisco Catalyst9105AXI Kenya Access Point is equipped with bundled with necessary accessories for easy home deployment. The Cisco Catalyst9105AXI Kenya Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), is enterprise-class product that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

The Cisco Catalyst9105AXI Kenya Access Point, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network.

Features

Wi-Fi 6 (802.11ax)

The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard

Uplink/downlink OFDMA

OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.

Downlink MU‑MIMO technology

Cisco Catalyst9105AXI Kenya supports two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput

BSS coloring

Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Cisco Wifi Kenya users to differentiate between BSSs, thus permitting more simultaneous transmissions

Target Wake Time

Cisco Catalyst9105AXI Kenya Access Point has new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This Cisco Wifi Kenya offers significant energy savings for battery-operated devices, up to 3x to 4x the savings achieved by 802.11n and 802.11ac.

Intelligent Capture

Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.

Bluetooth 5

Cisco Catalyst9105AXI Kenya Access Point integrate Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics

Cisco Embedded Wireless Controller

The Cisco Catalyst9105AXI Kenya Access Point is available with a built-in controller. Cisco Wifi Kenya provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point so there is no added footprint or complexity.

Container support for applications

Container support enables edge computing capabilities for IoT applications on the host access point

Apple features

Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in Apple iOS, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications. At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices.

Specifications

Part Number C9105AXI-A
Software
  • Catalyst 9105 AXI
  • Cisco Unified Wireless Network Software Release 8.10.MR3 or later
  • Cisco IOS  XE Software Release 17.3.1, or later
Supported wireless LAN controllers
  • Cisco, Series Wireless Controllers
  • Cisco , and  Wireless Controllers and Cisco Virtual Wireless Controller
802.11ax
  • 2×2 uplink/downlink MU-MIMO with two spatial streams
  • Uplink/downlink OFDMA
  • TWT
  • BSS coloring
  • MRC
  • 802.11ax beamforming
  • 20-, 40-, 80- channels
  • PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
  • WPA3 support
Integrated antenna
  • 2.4 GHz : Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
  • 5 GHz : Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces
  • 1x 10/100/1000 Base-T (Ethernet) Uplink Interface
  • Management console port (RJ-45)
