Description

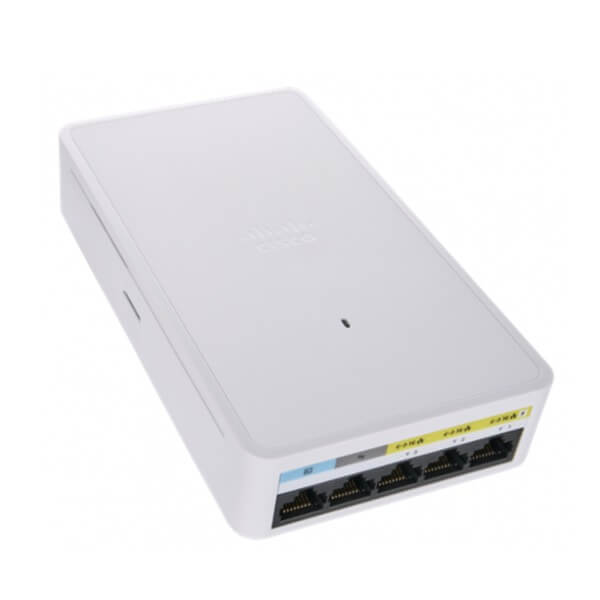

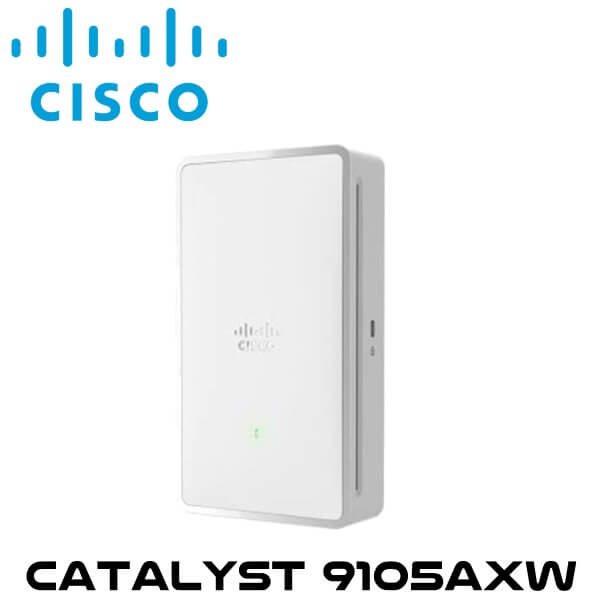

Cisco Catalyst9105AXW Access Point Kenya

The Cisco Catalyst9105AXW Kenya Access Points have integrated built-in security in the form of Secure Boot, runtime defenses, image signing, integrity verification, and hardware authenticity. The Cisco Wifi Kenya, with Wi-Fi 6, provide reliable wireless to meet the needs of your branch and campus network deployments. With the most compact size in the Wi-Fi 6 portfolio, the Cisco Catalyst9105AXW Kenya Access Points are for organizations looking to grow or to enable employees to take advantage of the OfficeExtend Access Point (OEAP) mode and work from home while still connected to the company network.

The Cisco Wifi Kenya is made up of two distinct offerings (wall and ceiling mounted) that are affordable and will take a spot in the small to medium-sized office space. The Cisco Catalyst9105AXW Kenya Access Points, with high-performance Wi-Fi 6 capabilities and innovations in RF performance and security, as well as analytics, enable end-to-end digitization and help accelerate the rollout of business services by delivering beyond Wi-Fi.

Features

Resilient

Increased efficiency and cellular-like determinism with up to four times the capacity of 802.11ac access points, even in demanding environments.

Secure

Along with built-in security and Cisco Software-Defined Access (SD-Access) support, these access points can deliver standards-compliant, enhanced security on open Wi-Fi.

Intelligent

With multi-RF support paramount for Internet of Things (IoT) devices and expanded ecosystem partnerships, the Cisco Catalyst9105AXW Kenya portfolio provides unprecedented visibility from mobile devices on the Cisco network, along with enhanced Cisco DNA Assurance

IOT-Ready

Embedded IoT radios enabling BLE 5.0 and Zigbee, custom IoT app hosting with Docker-style containers

Deployment Options

The Cisco Catalyst9105AXW Kenya all mount for ease of install and expanding wired connections

Wi-Fi 6 (802.11ax)

The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard

Uplink/downlink OFDMA

OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.

Downlink MU‑MIMO technology

Cisco Catalyst9105AXW Kenya Access Point supports two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput

BSS coloring

Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Cisco Wifi Kenya users to differentiate between BSSs, thus permitting more simultaneous transmissions

Target Wake Time

Cisco Catalyst9105AXW Kenya Access Point has new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This Cisco Wifi Kenya offers significant energy savings for battery-operated devices, up to 3x to 4x the savings achieved by 802.11n and 802.11ac.

Intelligent Capture

Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.

Bluetooth 5

Cisco Catalyst9105AXW Kenya Access Point integrate Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics

Cisco Embedded Wireless Controller

The Cisco Catalyst9105AXW Kenya Access Point is available with a built-in controller. Cisco Wifi Kenya provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point so there is no added footprint or complexity.

Container support for applications

Container support enables edge computing capabilities for IoT applications on the host access point

Apple features

Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in Apple iOS, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications. At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices.

Specifications

• Next-generation Wi-Fi 6 (802.11ax) access points with 2×2 MU-MIMO and two spatial streams:
  •    2×2:2 on 5 GHz with downlink and uplink OFDMA and MU-MIMO 2×2:2 on 2.4 GHz with downlink and uplink OFDMA and MU-MIMO
• Cisco DNA ready
• Cisco Spectrum Intelligence
• USB port up to 4.5W out
• PoE out port up to 10.5W
• Built-in IoT radio: BLE, Zigbee, and Thread
• Multigigabit Ethernet
• 1024 QAM radio data rate of 1.2 Gbps
• Cisco DNA Center on-premises and cloud
• Supports up to 200 Wi-Fi devices
• Internal antennas with client analytics to enhance Cisco DNA Assurance
• Support for Kensington-style lock
• Small size (14.9 x 14.9 x 3 cm) U.S. (5.9 x 5.9 x 1.2 inches)
• Weight 0.8 lb. (373.2g)
• MTBF at 25°C (77°F) 701,904 hours; at 40°C (104°F) 636,108 hours
• Mounting bracket part number AIR-AP-BRACKET-W4=
• Operating temperature : -32° to 122°F (0° to 50°C)
