Description

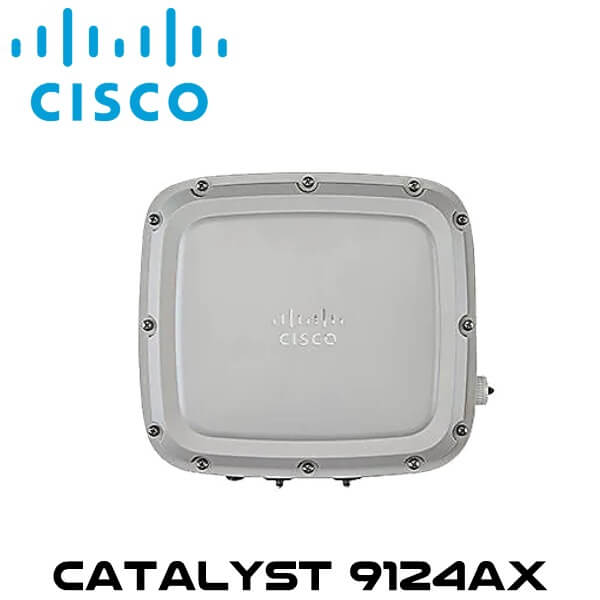

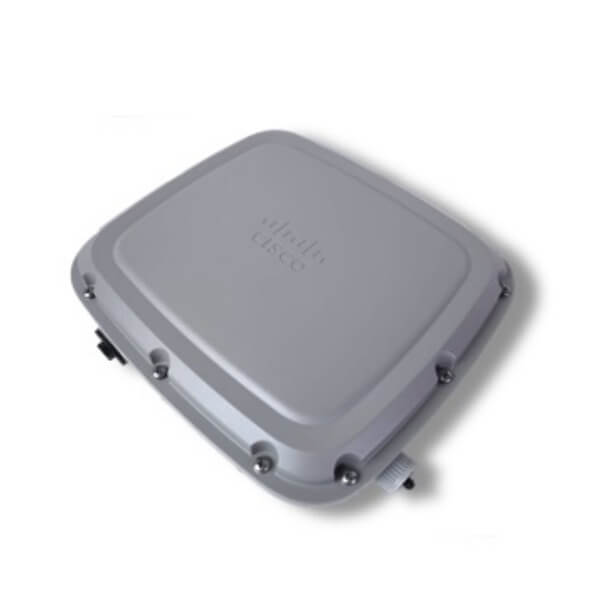

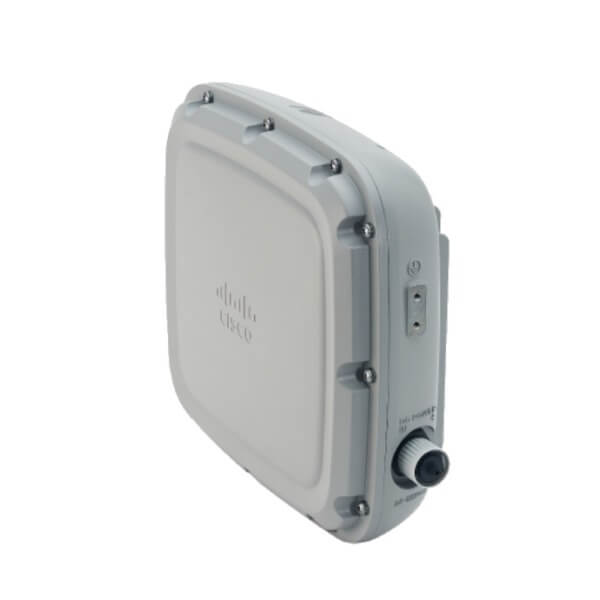

Cisco Catalyst9124AX Access Point Kenya

The Cisco Catalyst9124AX Kenya is an outdoor access points provide a seamless experience, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, this Cisco WiFi Kenya Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

The Cisco Catalyst9124AX Kenya offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops), and wireless backhaul. With options for internal or external antennas, the Cisco WiFi Kenya gives network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

This Cisco Catalyst9124AX Kenya, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

Features

Wi-Fi 6 (802.11ax)

The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. Cisco Catalyst9124AX Kenya delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.

Uplink/downlink OFDMA

Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.

Uplink/downlink MU‑MIMO technology

Cisco Catalyst9124AX Kenya supports two spatial streams, multiuser multiple-input multiple-output (MU-MIMO) enables access points to split spatial streams between client devices to maximize throughput.

BSS coloring

Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.

Target Wake Time

A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant

Cisco RF ASIC

Cisco RF ASIC is a fully integrated Software-Defined Radio (SDR) that can perform advanced RF spectrum analysis and delivers features such as Cisco CleanAir, Wireless Intrusion Prevention System (wIPS), FastLocate, and Dynamic Frequency Selection (DFS).

Bluetooth 5

Cisco Catalyst9124AX Kenya is integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, wayfinding, and analytics.

Multigigabit Ethernet support

This Cisco WiFi Kenya provides uplink speeds of 2.5G, 1G, and 100M. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.

Specifications

Part numbers	Cisco Catalyst 9124AX Series Access Points : Outdoor environments C9124AXI-x : Cisco Catalyst 9124AX Series (internal omnidirectional antenna) C9124AXI-EWC-X : Cisco Catalyst 9124AX Series Access point with Embedded wireless controller (internal omnidirectional antenna) C9124AXD-x : Cisco Catalyst 9124AX Series (internal directional antenna) C9124AXD-EWC-X : Cisco Catalyst 9124AX Series Access point with Embedded wireless controller (internal directional antenna) C9124AXE-x : Cisco Catalyst 9124AX Series (External antenna) C9124AXE-EWC-X : Cisco Catalyst 9124AX Series Access point with Embedded wireless controller (External Antenna)
Software	Catalyst 9124AXI, 9124AXD Cisco IOS XE Software Release 17.5.1/17.3.4 (B Domain) or later Cisco IOS XE Software Release 17.6.2 or later (For all Regulatory Domains) Catalyst C9124AXE Cisco IOS XE Software Release 17.6.2 or later Catalyst C9124AXI/C9124AXD Embedded wireless Controller Cisco IOS XE Software Release 17.6.2 or later
Supported WLAN controllers	Cisco Catalyst 9800 Series Wireless Controllers
802.11n version 2.0 (and related) capabilities	C9124AXI,C9124AXD 4×4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams C9124AXE 4×4:4 in 2.4GHz + two 2×2:2 radios in 5 GHz uplink/downlink MU-MIMO Maximal Ratio Combining (MRC) 802.11n and 802.11a/g 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation : Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac	C9124AXI,C9124AXD 4×4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams C9124AXE 4×4:4 in 2.4GHz + two 2×2:2 radios in 5 GHz uplink/downlink MU-MIMO MRC 802.11ac beamforming 20-, 40-, 80- and 80+80-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support
802.11ax	C9124AXI,C9124AXD 4×4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams C9124AXE 4×4:4 in 2.4GHz + two 2×2:2 radios in 5 GHz uplink/downlink MU-MIMO Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 80+80-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support WPA3-Enterprise 192 support
Integrated antenna	Catalyst 9124AXI 2.4 GHz : Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional 5 GHz : Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional BLE Antenna Gain : 5 dBi, internal antenna, Vertical Polarization, omnidirectional Catalyst 9124AXD 2.4 GHz : Peak gain 9 dBi, internal antenna, Dual Polarization, directional, Azimuth beamwidth 70 deg, elevation beamwidth 65 deg 5 GHz : Peak gain 9 dBi, internal antenna, Dual Polarization, directional, Azimuth beamwidth 55 deg, elevation beamwidth 50 deg BLE Antenna Gain : 4 dBi, internal antenna, Vertical Polarization, omnidirectional
External antenna	Catalyst 9124AXE The Catalyst 9124AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5GHz) Cisco offers the industry’s broadest selection of antennas delivering optimal coverage for a variety of deployment scenarios. Supports Self-Identifiable Antennas (SIA)
Interfaces	Catalyst 9124AXI, 9124AXD, 9124AXE 1x 100/1000/2500 BASE-T (Ethernet) uplink interface 1x Gigabit Ethernet SFP Supports PoE output (802.3af compliant PSE) on the 1x 10/100/1000 BASE-T (Ethernet) downlink interface if C9124AX powered from one of the following: UPOE or 802.3bt inline power source (Switch or Power Injector) DC input (with external power supply rated ³ 60W) Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings
Dimensions (W x L x H)	Access point (without mounting brackets) : 9124AXI, 9124AXD, 9124AXE: 10.2 x 9.2 x 3.2 in. (25.9 x 23.3 x 8.1 cm)
Weight	9124AXI, 9124AXD : 6.5 lb. (2.9 kg) 9124AXE : 7 lb. (3.1 kg)
Input power requirements	802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE ) Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2= Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at) DC power source: Auxiliary DC input, 24V to 56V
	PoE		Radio 0 SS			Radio 1 SS		Radio 2 SS (C9124AXE)				MGIG		SFP	1G		POE O/P
	.3af		Disabled			Disabled		n/a				1G		N	N		N
	.3at		2×2			2×2		n/a				1G		N	Y		N
	.3bt/UPOE/ DC		4×4			4×4 or 2X2		2×2				2.5G		Y	Y		Y
Environmental	Catalyst 9124AXI, 9124AXD, 9124AXE Non-operating (storage) temperature : -40° to 185°F (-40° to 85°C) Nonoperating altitude test : 17,000 ft (5182 m) Operating temperature : -40° to 149°F (-40° to 65°C) with no solar loading, -40° to 131°F (-40° to 55°C) with solar loading Operating altitude test : 17,000 ft (5182 m) Operating humidity : 0% to 100% (condensing) IEC 60529 Ingress Rating : IP66/IP67 Wind resistance up to 100 mph (161 km/h) sustained winds and 165 mph (266 km/h) wind gusts Icing protection : MIL-STD-810F,13mm 13mm (0.5 in.) Corrosion : NEMA 250-2008 (600 hrs. salt, 1200 hrs. mixed gas) Solar radiation : EN 60068-2-5 (1120 W/m2) Vibration : MIL-STD-810, Method 514.4
Available Tx power settings (max/min)	2.4 GHz 30 dBm (1W) -4 dBm (0.4 mW)									5 GHz 30 dBm (1W) -4 dBm(0.4 mW)
Compliance	Safety: IEC 60950-1/IEC 60950-22 IEC 62368-1 EN 60950-1/EN 60950-22 EN 62368-1 AS/NZS 60950.1/AS/NZS 62368.1 UL 60950-1/ UL 60950-22 UL 62368-1 CAN/CSA-C22.2 No. 60950-1/ 60950-22 CAN/CSA-C22.2 No. 62368-1 Emissions: CISPR 32 (rev. 2015) EN 55032 (rev. 2015+A11:2020) EN61000-3-2 (rev. 2019) EN61000-3-3 (rev. 2013+A1:2019) KS C 9610-3-2:2020 KS C 9610-3-3:2020 AS/NZS CISPR 32 Class B (rev. 2015) 47 CFR FCC Part 15B ICES-003, Issue 7 VCCI-CISPR 32: 2016 CNS (rev. 13438) KS C 9832:2019 QCVN 118:2018/BTTTT Immunity : CISPR 24 (rev. 2010) EN 55024 + AMD 1(rev. 2010) EN 55035: 2017 QCVN (TCVN 7317:2003) KS C 9835:2019 Emissions and immunity: EN 301 489-1 (v2.2.3 2019-11) EN 301 489-17 (v3.2.4 2020-09) QCVN 18:2014/BTTTT QCVN 112:2017/BTTTT KS X 3124:2020 KS X 3126:2020									Radio : EN 300 328 (v2.2.2 2019-07) EN 301 893 (v2.1.1) AS/NZS 4268 (rev. 2017) 47 CFR FCC Part 15C, 15.247, 15.407 RSP-100 RSS-GEN RSS-247 China regulations SRRC LP0002 (rev 2020) Japan Std. 33a, Std. 66, and Std. 71 QCVN (54:2020/BTTTT) QCVN (65:2013/BTTTT) RF safety : EN 50385 (rev. Aug 2017) ARPANSA AS/NZS 2772 (rev. 2016) 47 CFR Part 1.1310 and 2.1091 RSS-102 (2015) IEEE standards : IEEE 802.3 IEEE 802.3ae IEEE 802.11a/b/g/n/ac/ax/h/d/u/k/v/r IEEE 802.15.1/802.15.4 Multimedia : Wi-Fi Multimedia (WMM) Security : 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3 802.1X/AES/TKIP Extensible Authentication Protocol (EAP) types : EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 Protected EAP (PEAP) v0 or EAP-MSCHAP v2 EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM)
		2.4-GHz radio					5-GHz radio					5-GHz radio
	Spatial streams	Total TX power (dBm)		RX sensitivity (dBm)			Total TX power (dBm)		RX sensitivity (dBm)			Total TX power (dBm)	RX sensitivity (dBm)
802.11/11b
		AXI/ AXD	AXE	AXI/ AXD	AXE		AXI/ AXD	AXE	AXI/ AXD		AXE		AXE			AXE
1 Mbps	1	30	29	-102	-100		–	–	–			–	–			–
11 Mbps	1	30	29	-94	-92		–	–	–			–	–			–
802.11a/g
6 Mbps	1	30	29	-97	-94		30	29	-99		-97	2	25			-94
24 Mbps	1	30	26	-89	-86		30	25	-90		-88	2	22			-86
54 Mbps	1	30	24	-81	-78		30	24	-83		-80	2	20			-78
802.11n HT20
MCS0	1	30	29	-97	-95		30	29	-99		-97	2	25			-94
MCS7	1	29	27	-79	-83		29	26	-80		-78	2	23			-75
MCS8	2	30	29	-95	-94		30	29	-97		-96	2	25			-92
MCS15	2	29	27	-77	-75		29	26	-78		-77	2	23			-73
MCS16	3	30	29	-93	-93		30	29	-95		-95	–	–			–
MCS23	3	29	27	-75	-74		29	26	-76		-75	–	–			–
MCS24	4	30	29	-92	-91		30	29	-94		-93	–	–			–
MCS31	4	29	27	-74	-72		29	26	-75		-74	–	–			–
802.11n HT40
MCS0	1	–		–			30	29	-97		-94	2	25			-91
MCS7	1	–		–			30	26	-79		-75	2	23			-72
MCS8	2	–		–			30	29	-95		-93	2	25			-89
MCS15	2	–		–			30	26	-77		-74	2	23			-70
MCS16	3	–		–			30	29	-93		-92	–	–			–
MCS23	3	–		–			30	26	-75		-73	–	–			–
MCS24	4	–		–			30	29	-92		-90	–	–			–
MCS31	4	–		–			30	26	-74		-71	–	–			–
802.11ac VHT20
MCS0	1	–		–			30	29	-99		-97	2	25			-94
MCS8	1	–		–			28	25	-76		-74	2	22			-71
MCS0	2	–		–			30	29	-97		-96	2	25			-92
MCS8	2	–		–			28	25	-74		-73	2	22			-69
MCS9	2	–		–			–		–			–	–
MCS0	3	–		–			30	29	–		–	–	–			–
MCS8	3	–		–			28	25	-72		-72	–	–			–
MCS9	3	–		–			–		–			–	–
MCS0	4	–		–			30	29	-94		-93	–	–			–
MCS8	4	–		–			28	25	-71		-70	–	–			–
MCS9	4	–		–			–		–			–	–
802.11ac VHT40
MCS0	1	–		–			30	29	-96		-94	2	25			-91
MCS8	1	–		–			29	25	-74		-71	2	22			-68
MCS0	2	–		–			30	29	-94		-93	2	25			-89
MCS8	2	–		–			29	25	-72		-70	2	22			-66
MCS9	2	–		–			28	25	-70		-68	–	–			–
MCS0	3	–		–			30	29	-92		-92	–	–			–
MCS8	3	–		–			29	25	-70		-69	–	–			–
MCS9	3	–		–			28	25	-68		-67	–	–			–
MCS0	4	–		–			30	29	-91		-90	–	–			–
MCS8	4	–		–			29	25	-69		-67	–	–			–
MCS9	4	–		–			28	25	-67		-65	–	–			–
802.11ac VHT80
MCS0	1	–		–			30	29	-94		-91	2	25			-88
MCS8	1	–		–			29	25	-72		-67	2	23			-65
MCS0	2	–		–			30	29	-92		-90	2	25			-86
MCS8	2	–		–			29	25	-70		-66	2	22			-63
MCS9	2	–		–			28	25	-69		-65	–	–			–
MCS0	3	–		–			30	29	-90		-89	–	–			–
MCS8	3	–		–			29	25	-68		-65	–	–			–
MCS9	3	–		–			28	25	-67		-64	–	–			–
MCS0	4	–		–			30	29	-89		-87	–	–			–
MCS8	4	–		–			29	25	-67		-63	–	–			–
MCS9	4	–		–			28	25	-66		-62	–	–			–
802.11ac VHT160
MCS0	1	–		–			30	19	-91		-78	1	21			-80
MCS8	1	–		–			26	19	-69		-65	1	19			-61
MCS9	1	–		–			–	–	–		–	1	17			-55
MCS0	2	–		–			30	–	-89		–	–	–			–
MCS8	2	–		–			26	–	-67		–	–	–			–
MCS9	2	–		–			25	–	-66		–	–	–			–
802.11ax HE20
MCS0	1	30	29	-97	-95		30	29	-98		-97	2	25			-94
MCS11	1	26	24	-69	-66		27	24	-70		-68	2	20			-65
MCS0	2	30	29	-95	-94		30	29	-96		-96	2	25			-92
MCS11	2	26	24	-67	-65		27	24	-68		-67	2	20			-63
MCS0	3	30	29	-93	-93		30	29	-94		-95	–	–			–
MCS11	3	26	24	-65	-64		27	24	-66		-66	–	–			–
MCS0	4	30	29	-92	-91		30	29	-93		-93	–	–			–
MCS11	4	26	24	-64	-62		27	24	-65		-64	–	–			–
802.11ax HE40
MCS0	1	–		–			30	29	-95		-94	2	25			-92
MCS11	1	–		–			26	24	-67		-65	2	20			-63
MCS0	2	–		–			30	29	-93		-93	2	25			-90
MCS11	2	–		–			26	24	-65		-64	2	20			-61
MCS0	3	–		–			30	29	-91		-92	–	–			–
MCS11	3	–		–			26	24	-63		-63	–	–			–
MCS0	4	–		–			30	29	-90		-90	–	–			–
MCS11	4	–		–			26	24	-62		-61	–	–			–
802.11ax HE80
MCS0	1	–		–			30	29	-92		-92	2	25			-89
MCS11	1	–		–			26	24	-64		-63	2	20			-60
MCS0	2	–		–			30	29	-90		-91	2	25			-87
MCS11	2	–		–			26	24	-62		-62	2	20			-58
MCS0	3	–		–			30	29	-88		-90	–	–			–
MCS11	3	–		–			26	24	-60		-61	–	–			–
MCS0	4	–		–			30	29	-87		-88	–	–			–
MCS11	4	–		–			26	24	-59		-59	–	–			–
802.11ax HE160
MCS0	1	–		–			30	19	-89		-78	1	21			-81
MCS11	1	–		–			25	19	-61		-68	1	16			-52
MCS0	2	–		–			30	–	-87		–	–	–			–
MCS11	2	–		–			25	–	-59		–	–
