Description

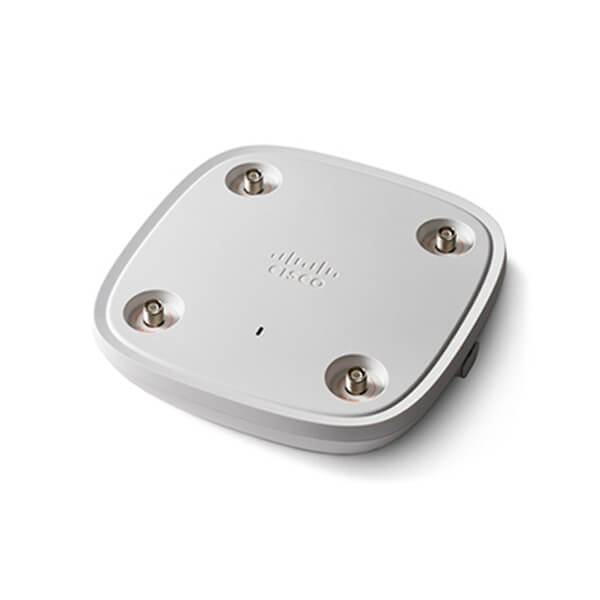

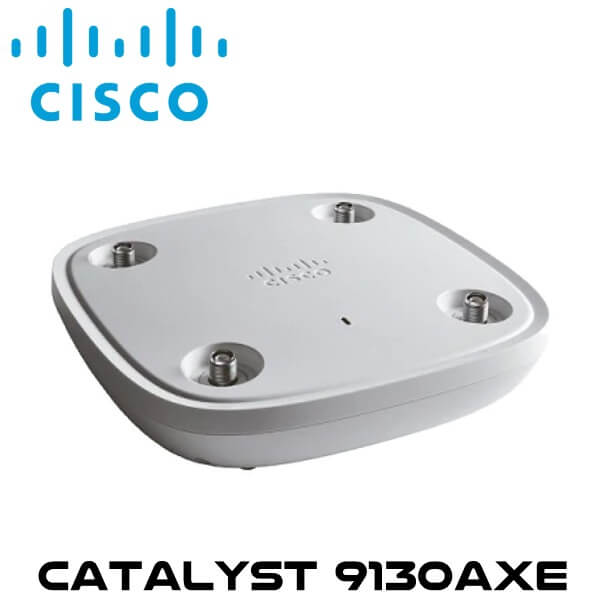

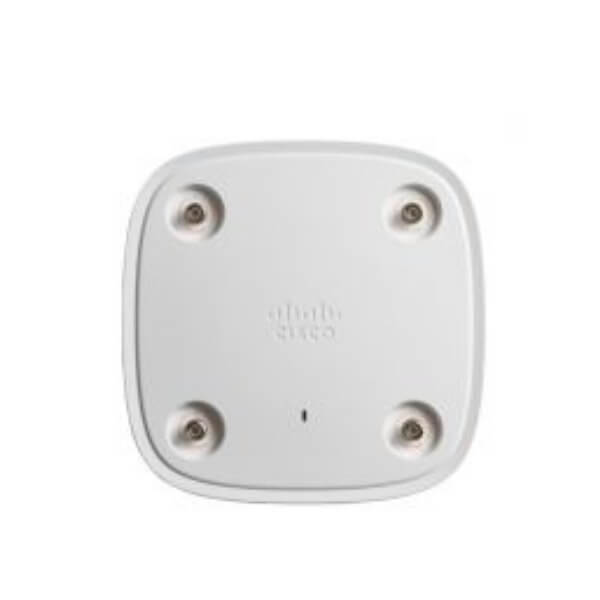

Cisco Catalyst9130AXE Access Point Kenya
The Cisco Catalyst9130AXE Kenya Access Point comes equipped with high-performance Wi-Fi 6 capabilities and innovations in RF performance, security, and analytics, enable end-to-end digitization and help accelerate the rollout of business services by delivering beyond Wi-Fi. This Cisco WiFi Kenya comes with built-in security in the form of secure boot, runtime defenses, image signing, integrity verification, and hardware authenticity. The Cisco Catalyst9130AXE Kenya, offer beyond the Wi-Fi 6 (802.11ax) standard, this Cisco WiFi Kenya provides integrated security, resiliency, and operational flexibility as well as increased network intelligence ensuring reliable wireless to meet the needs of your branch and campus network deployments.
Features
- Next-generation Wi-Fi 6 (802.11ax) access points with 4×4 Multiple-Input Multiple-Output (MIMO) and four spatial streams:
- 8×8:8 single or dual 4×4:4 on 5 GHz and downlink/uplink Orthogonal Frequency-Division Multiple Access (OFDMA)
- 4×4:4 on 2.4 GHz with multiuser MIMO (MU-MIMO) and downlink/uplink OFDMA
- Cisco DNA ready
- Cisco RF Application-Specific Integrated Circuit (ASIC) with next-generation Cisco CleanAir® and upgradable RF features
- Built-in Bluetooth Low Energy (BLE) radio (Bluetooth 5.0)
- Multigigabit Ethernet (1 Gbps, 2.5 and 5 Gbps)
- Supports up to 500 Wi-Fi devices
- IoT ready (Zigbee, Thread)
- Internal and external antenna options
Resilient
Cisco Catalyst9130AXE Kenya provides increased efficiency and cellular-like determinism with up to 4 times the capacity of 802.11ac access points, even in demanding environments
Secure
 Along with built-in security, and Software-Defined Access (SD-Access) support, Cisco Catalyst9130AXE Kenya deliver standards-compliant, enhanced security on open Wi-Fi
 Intelligent
 With multi-RF support paramount for Internet of Things (IoT) devices and expanded ecosystem partnerships, the Cisco Catalyst 9100 portfolio provides unprecedented visibility from mobile devices on the Cisco network, along with enhanced Cisco DNA Assurance
Specifications
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 9.2 in |
| Depth | 9.2 in |
| Height | 1.6 in |
| Weight | 3.77 lbs |
| Localization | United States |
| Processor / Memory / Storage | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDMA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), secure boot, 8×8 MU-MIMO technology, Target Wait Time (TWT), Cisco Trust Anchor module, 4×4 MIMO technology |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax,Wi-Fi CERTIFIED 6 |
| Antenna | |
| Antenna | External |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Interfaces |
|
| Miscellaneous | |
| Included Accessories | Low profile bracket, ceiling grid clip |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, CISPR 32, EN 55032, EN 61000-6-1:2007, EN 60601-1-2:2015, CAN/CSA-C22.2 No. 60950-1, EN 300 328 V2.1.1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1 |
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
