Description

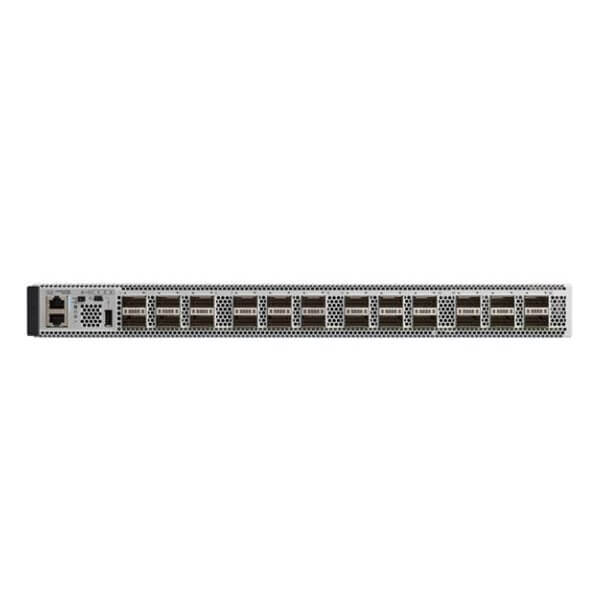

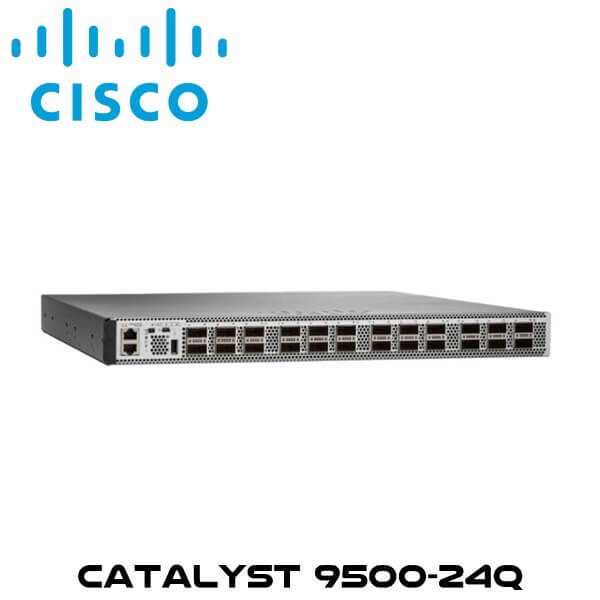

Cisco Catalyst9500-24Q Network Switch Kenya
The Cisco Catalyst9500-24Q Kenya Ethernet Switch is part of the Cisco Catalyst 9500 Series switches and are among the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The C9500-24Q comes with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Cisco Catalyst9500-24Q Kenya also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
Features
- Simplified device deployment
- Unified management of wired and wireless networks
- Network virtualization and segmentation
- Group-based policies
- Context-based analytics
- Up to 6.4-Tbps switching capacity with up to 2 Bpps of forwarding performance
- Platinum-rated AC/DC power supplies
- Up to 512,000 Flexible NetFlow (FNF) entries in hardware
- Intel® 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based application hosting
- SD-Access for policy-based automation from edge to cloud
- 24x 40G Gigabit Ethernet
Technical Specs
| Product Code | C9500-24Q-A |
| Description | Catalyst 9500 24-port 40G switch, Network Advantage |
| Switching capacity | Up to 1920 Gbps |
| Forwarding rate | Up to 1440 Mpps |
| AC power max rating | 950W |
| System power consumption | 850W max |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack units (RU) | 1 RU |
