Description

Cisco Catalyst9800-40 Wireless Controller Kenya

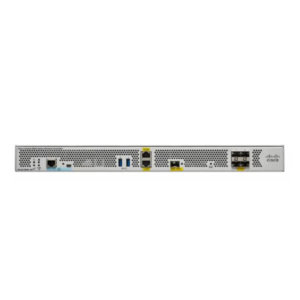

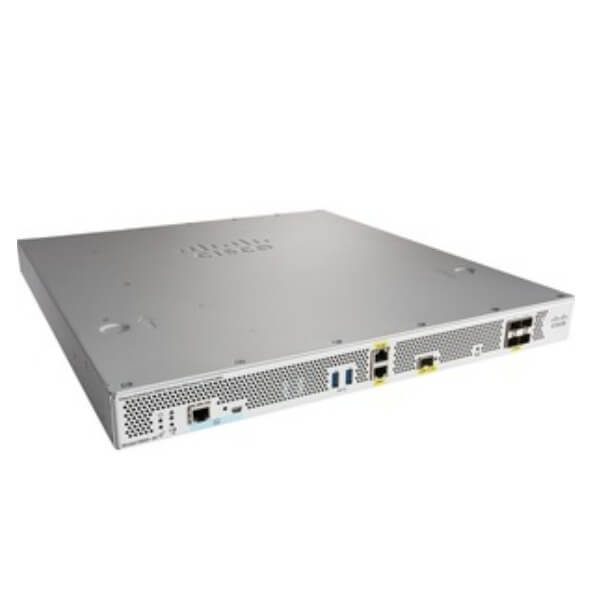

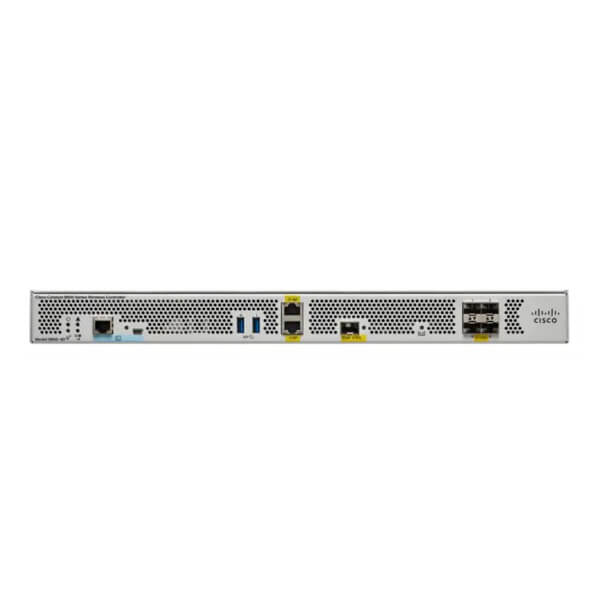

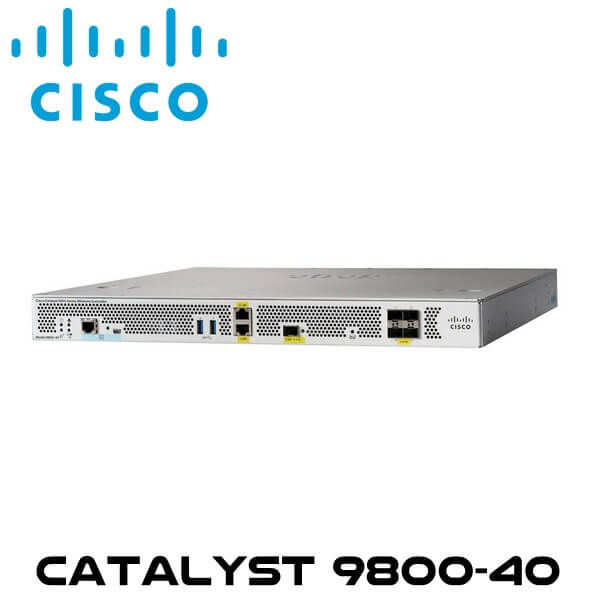

The Cisco Catalyst9800-40 WirelessController Kenya is a fixed wireless controller with seamless software updates for midsize and large enterprises. This Cisco Wifi Controller Kenya is built on the three pillars of network excellence; always on, secure, and deployed anywhere enabling strong network by providing the best wireless experience without compromise, while saving time and money. The Cisco Catalyst9800-40 WirelessController Kenya is built from the ground-up for the Intent-based networking and Cisco DNA, featuring Cisco IOS XE based and integrating the RF excellence of Cisco Aironet access points creating the best-in-class wireless experience for your evolving and growing organization. The Cisco Catalyst9800-40 WirelessController Kenya is built on an open and programmable architecture with built-in security, streaming telemetry and rich analytics. The Cisco Catalyst9800-40 is feature rich and enterprise ready to power your business-critical operations and transform end-customer experiences

Features

Reliability

High availability and seamless software updates, enabled by hot and cold patching, keep your clients and services always on during planned and unplanned events.

Always on

The Cisco Catalyst9800-40 WirelessController Kenya provides seamless software updates for faster resolution of critical issues, the ability to introduce new access points with zero downtime, and flexible software upgrades. Stateful Switchover (SSO) with active standby and N+1 redundancy keeps your network, services, and clients always on, even in unplanned events.

Secure

Secure air, devices, and users with the Cisco Catalyst9800-40. Wireless infrastructure becomes the strongest first line of defense with Cisco Encrypted Traffic Analytics (ETA) and Software-Defined Access (SD-Access). The controller comes with built-in security : secure boot, runtime defenses, image signing, integrity verification, and hardware authenticity.

Open and programmable

Built on a modular operating system, the Cisco Catalyst9800-40 WirelessController Kenya features open and programmable APIs that enable automation of day-0 to day-N network operations. Model-driven streaming telemetry provides deep insights into the health of your network and clients.

Specifications

Maximum number of access points	Up to 2000
Maximum number of clients	32,000
Maximum throughput	Up to 40 Gbps
Maximum WLANs	4096
Maximum VLANs	4096
Max Site Tags	2000
Max APs per Site	100
Max Policy Tags	2000
Max RF Tags	2000
Max RF Profiles	4000
Max Policy Profiles	1000
Max Flex Profiles	2000
Interfaces	4x 10 GE/1 GE SFP+/SFP
Power supply	AC power with optional redundant AC power
Maximum power consumption	381W
Deployment modes	Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access)
Form factor	1RU
License	Smart License enabled
Operating system	Cisco IOS XE
Management	Cisco DNA Center 1.2.8, Cisco Prime Infrastructure 3.5, integrated WebUI, and third party (open standards APIs)
Interoperability	AireOS-based controllers with 8.8 MR2, 8.5 MR4, and 8.5 MR3 special
Policy engine	Cisco Identity Services Engine (ISE) 2.2, 2.3, and 2.4
Cisco Connected Mobile Experiences (CMX)	CMX 10.5.1
Access points	Aironet 802.11ac Wave 1 and Wave 2 access points
Dimension (W × D × H)	17.3 inches × 19.5 inches × 1.72 inches (43.94 cm × 49.53 cm × 4.37 cm)
Weight	22.8 lb (10.34 kg)
Wireless standards	IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2
Wired, switching, and routing standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN taggin, 802.1AX Link Aggregation
Data standards	RFC 768 User Datagram Protocol (UDP) RFC 791 IP RFC 2460 IPv6 RFC 792 Internet Control Message Protocol (ICMP) RFC 793 TCP RFC 826 Address Resolution Protocol (ARP) RFC 1122 Requirements for Internet Hosts RFC 1519 Classless Interdomain Routing (CIDR) RFC 1542 Bootstrap Protocol (BOOTP) RFC 2131 Dynamic Host Configuration Protocol (DHCP) RFC 5415 Control and Provisioning of Wireless Access Points (CAPWAP) Protocol RFC 5416 CAPWAP Binding for 802.11
Security standards	Wi-Fi Protected Access (WPA) IEEE 802.11i (WPA2, RSN) RFC 1321 MD5 Message-Digest Algorithm RFC 1851 Encapsulating Security Payload (ESP) Triple DES (3DES) Transform RFC 2104 HMAC : Keyed-Hashing for Message Authentication RFC 2246 TLS Protocol Version 1.0 RFC 2401 Security Architecture for the Internet Protocol RFC 2403 HMAC-MD5-96 within ESP and AH RFC 2404 HMAC-SHA-1-96 within ESP and AH RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV RFC 2407 Interpretation for Internet Security Association Key Management Protocol (ISAKMP) RFC 2408 ISAKMP RFC 2409 Internet Key Exchange (IKE) RFC 2451 ESP CBC-Mode Cipher Algorithms RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile RFC 4347 Datagram Transport Layer Security (DTLS) RFC 5246 TLS Protocol Version 1.2
Encryption standards	Static Wired Equivalent Privacy (WEP) RC4 40, 104 and 128 bits Advanced Encryption Standard (AES) : Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP) Data Encryption Standard (DES) : DES-CBC, 3DES Secure Sockets Layer (SSL) and Transport Layer Security (TLS) : RC4 128-bit and RSA 1024- and 2048-bit DTLS : AES-CBC IPsec : DES-CBC, 3DES, AES-CBC 802.1AE MACsec encryption
Authentication, Authorization, and Accounting (AAA) standards	IEEE 802.1X RFC 2548 Microsoft Vendor-Specific RADIUS Attributes RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2867 RADIUS Tunnel Accounting RFC 2869 RADIUS Extensions RFC 3576 Dynamic Authorization Extensions to RADIUS RFC 5176 Dynamic Authorization Extensions to RADIUS RFC 3579 RADIUS Support for EAP RFC 3580 IEEE 802.1X RADIUS Guidelines RFC 3748 Extensible Authentication Protocol (EAP) Web-based authentication TACACS support for management users
Management standards	Simple Network Management Protocol (SNMP) v1, v2c, v3 RFC 854 Telnet RFC 1155 Management Information for TCP/IP-based Internets RFC 1156 MIB RFC 1157 SNMP RFC 1213 SNMP MIB II RFC 1350 Trivial File Transfer Protocol (TFTP) RFC 1643 Ethernet MIB RFC 2030 Simple Network Time Protocol (SNTP) RFC 2616 HTTP RFC 2665 Ethernet-Like Interface Types MIB RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions RFC 2819 Remote Monitoring (RMON) MIB RFC 2863 Interfaces Group MIB RFC 3164 Syslog RFC 3414 User-Based Security Model (USM) for SNMPv3 RFC 3418 MIB for SNMP RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs RFC 4741 Base NETCONF protocol RFC 4742 NETCONF over SSH RFC 6241 NETCONF RFC 6242 NETCONF over SSH RFC 5277 NETCONF event notifications RFC 5717 Partial Lock Remote Procedure Call RFC 6243 With-Defaults capability for NETCONF RFC 6020 YANG Cisco private MIBs
Management interfaces	Web-based : HTTP/HTTPS Command-line interface : Telnet, Secure Shell (SSH) Protocol, serial port SNMP NETCONF
Hard Disk Drives (HDD)	SATA Solid-State Drive (SSD) 240 GB of memory
Environmental conditions supported	Operating temperature : Normal : 5° to 40° C (41° to 104°F) Short term : 5° to 50° C (41° to 122°F) Non-operating temperature : -40° to 65° C (-104° to 149°F) Operating humidity : Nominal : 5% to 85% no-condensing Short term : 5% to 90% noncondensing Non-operating temperature humidity : 5% to 93% at 82°F (28°C) Operating altitude : Appliance operating : 0 to 3000 m (0 to 10,000 ft) Appliance non-operating : 0 to 12,192 m (0 to 40,000 ft) Electrical input : AC input frequency range : 47 to 63 Hz AC input range : 90 to 264 VAC with AC PEM 1100W AC with optional redundant power supply (hot-swappable) Maximum power : 381W Heat dissipation : 1,300 BTU/hr Sound power level measure : A-weighted sound power level is 74.1 LpAm(dBA) @ 27C nominal operation
Regulatory compliance	Safety : UL/CSA 60950-1 IEC/EN 60950-1 AS/NZS 60950.1 CAN/CSA-C22.2 No. 60950-1 EMC – Emissions – Class A FCC 47CFR15 AS/NZS CISPR 22 CISPR 22 EN55022/EN55032 (EMI-1) ICES-003 VCCI KN 32 (EMI-2) CNS-13438 EMC – Emissions : EN61000-3-2 Power Line Harmonics (EMI-3) EN61000-3-3 Voltage Changes, Fluctuations, and Flicker (EMI-3) EMC – Immunity : IEC/EN61000-4-2 Electrostatic Discharge Immunity IEC/EN61000-4-3 Radiated Immunity IEC/EN61000-4-4 EFT-B Immunity (AC Power Leads) IEC/EN61000-4-4 EFT-B Immunity (DC Power Leads) IEC/EN61000-4-4 EFT-B Immunity (Signal Leads) IEC/EN61000-4-5 Surge AC Port IEC/EN61000-4-5 Surge DC Port IEC/EN61000-4-5 Surge Signal Port IEC/EN61000-4-6 Immunity to Conducted Disturbances IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations K35 (EMI-2) EMC (ETSI/EN) EN 300 386 Telecommunications Network Equipment (EMC) (EMC-3) EN55022 Information Technology Equipment (Emissions) EN55024/CISPR 24 Information Technology Equipment (Immunity) EN50082-1/EN61000-6-1 Generic Immunity Standard (EMC-4)
