Description

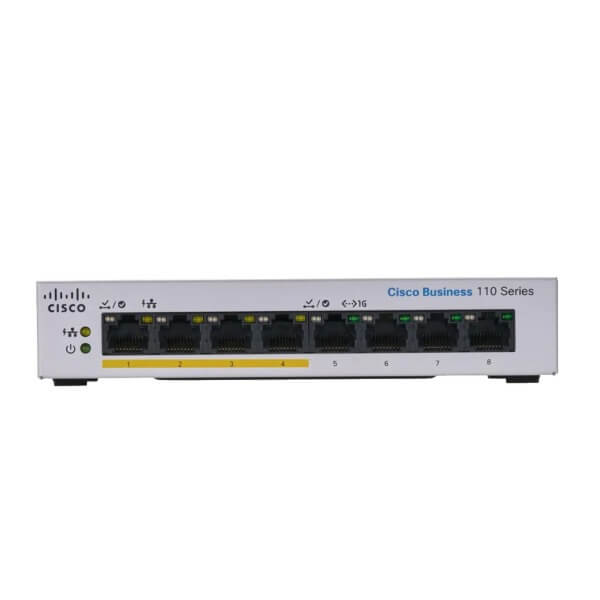

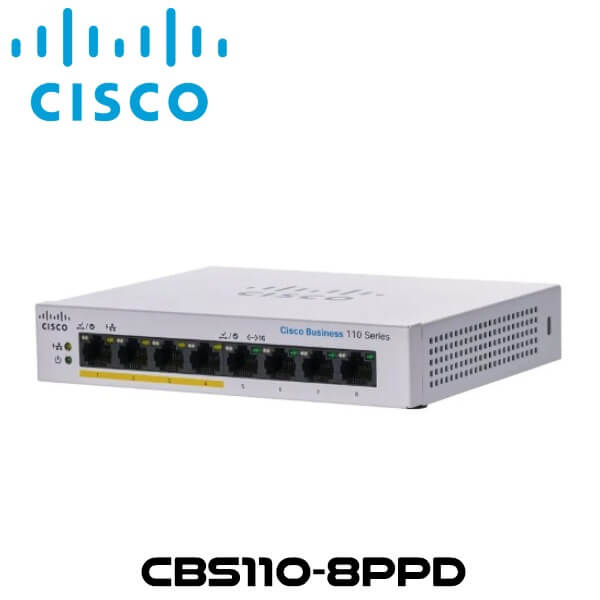

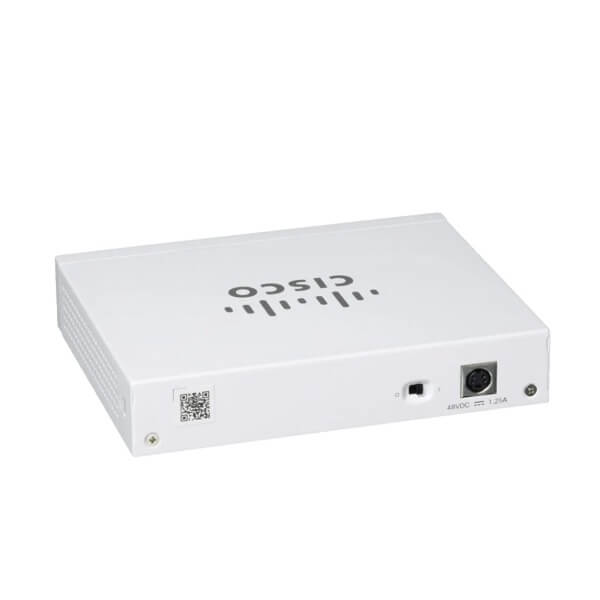

Cisco CBS110-8PPD Network Switch Kenya
The Cisco CBS110-8PPD Switch Kenya is a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce. Cisco CBS110-8PPD Kenya is affordable plug-and-play switch designed for small offices, workgroups, departments, and growing offices with limited IT know-how and support. Cisco CBS110-8PPD Kenya is Unmanaged Switch providing Gigabit Ethernet connectivity for your small business network. This Switch provides robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Cisco CBS110-8PPD Kenya switch bring the proven reliability and investment protection of Cisco networking solutions to your small business.
Features
Simple Plug & play
Cisco CBS110-8PPD Kenya work right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco CBS110-8PPD Kenya is designed to immediately accommodate all of the devices in your network.
Flexible deployment
Designed for small office spaces, Cisco Business 110 Series switches are available in 5-, 8-, 16-, and 24-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.
High performance
Cisco CBS110-8PPD Kenya delivers the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced energy costs
Cisco CBS110-8PPD Kenya is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
Power over Ethernet (PoE)
Cisco CBS110-8PPD Kenya is equipped with PoE ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other IoT solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.
Advanced technologies
All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Peace of mind
Cisco CBS110-8PPD Kenya the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
Specifications
Specifications | Description | ||||
Performance | |||||
Switching capacity and forwarding rate
All switches are wire- speed and non-blocking |
Model | Capacity in millions of packets per second (mpps) (64-byte packets) | Switching capacity in gigabits per second (Gbps) | ||
CBS110-5T-D | 7.4 mpps | 10 Gbps | |||
CBS110-8T-D | 11.9 mpps | 16 Gbps | |||
CBS110-8PP-D | 11.9 mpps | 16 Gbps | |||
CBS110-16T | 23.8 mpps | 32 Gbps | |||
CBS110-16PP | 23.8 mpps | 32 Gbps | |||
CBS110-24T | 35.7 mpps | 48 Gbps | |||
CBS110-24PP | 35.7 mpps | 48 Gbps | |||
General | |||||
Head-of-Line (HOL) blocking | HOL blocking prevention | ||||
MAC table |
|
||||
Jumbo frame | 9216 bytes | ||||
Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) | ||||
Loop detection | Helps discover loops in the network to avoid broadcast storms | ||||
Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | ||||
Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) | ||||
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet | ||||
Hardware | |||||
Ports | Model name | Total system ports | RJ-45 ports | Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) | |
CBS110-5T-D | 5 Gigabit Ethernet | 5 Gigabit Ethernet | – | ||
CBS110-8T-D | 8 Gigabit Ethernet | 8 Gigabit Ethernet | – | ||
CBS110-8PP-D | 8 Gigabit Ethernet | 8 Gigabit Ethernet | – | ||
CBS110-16T | 16 Gigabit Ethernet | 16 Gigabit Ethernet | – | ||
CBS110-16PP | 16 Gigabit Ethernet | 16 Gigabit Ethernet | – | ||
CBS110-24T | 24 Gigabit Ethernet | 24 Gigabit Ethernet | 2 SFP (combo with 2 Gigabit Ethernet) | ||
CBS110-24PP | 24 Gigabit Ethernet | 24 Gigabit Ethernet | 2 SFP (combo with 2 Gigabit Ethernet) | ||
Power over Ethernet (PoE) 802.3af | Model | Power dedicated to PoE | Number of ports that support PoE | ||
CBS110-8PP-D | 32W | 4 | |||
CBS110-16PP | 64W | 8 | |||
CBS110-24PP | 100W | 12 | |||
LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE*
*if present |
||||
Cabling type | Category 5e or better | ||||
Mounting options | Desktop, wall-mount or rack mount | ||||
Physical security lock | Kensington lock slot | ||||
Flash |
|
||||
CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP | ||||
CPU memory |
|
||||
Packet buffer | All numbers are aggregate across all ports as the buffers are dynamically shared: | ||||
Model Name | Packet Buffer | ||||
CBS110-5T-D | 1 Mbit | ||||
CBS110-8T-D | 2 Mbit | ||||
CBS110-8PP-D | 2 Mbit | ||||
CBS110-16T | 2 Mbit | ||||
CBS110-16PP | 2 Mbit | ||||
CBS110-24T | 2 Mbit | ||||
CBS110-24PP | 2 Mbit | ||||
Supported SFP modules | SKU | Media | Speed | Maximum distance | |
MGBSX1 | Multimode fiber | 1000 Mbps | 500 m | ||
MGBLX1 | Single-mode fiber | 1000 Mbps | 10 km | ||
MGBLH1 | Single-mode fiber | 1000 Mbps | 40 km | ||
MGBT1 | UTP cat 5e | 1000 Mbps | 100 m | ||
Environmental | |||||
Unit dimensions (WÂ x D x H) |
Model name | Unit dimensions | |||
CBS110-5T-D | 110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in) | ||||
CBS110-8T-D | 160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in) | ||||
CBS110-8PP-D | 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in) | ||||
CBS110-16T | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | ||||
CBS110-16PP | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | ||||
CBS110-24T | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | ||||
CBS110-24PP | 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in) | ||||
Unit weight | Model name | Unit weight | |||
CBS110-5T-D | 0.23 kg (0.52 lb) | ||||
CBS110-8T-D | 0.43 kg (0.94 lb) | ||||
CBS110-8PP-D | 0.55 kg (1.2 lb) | ||||
CBS110-16T | 0.97 kg (2.14 lb) | ||||
CBS110-16PP | 1.30 kg (2.87 lb) | ||||
CBS110-24T | 1.56 kg (3.43 lb) | ||||
CBS110-24PP | 2.98 kg (6.57 lb) | ||||
Power |
|
||||
Power consumption (worst case) | Model | System power consumption | Power consumption (with PoE) | Heat dissipation (BTU/hr) | |
CBS110-5T-D | 110V=2.74W
220V=2.69W |
N/A | 9.34 | ||
CBS110-8T-D | 110V=4.09W
220V=4.13W |
N/A | 14.09 | ||
CBS110-8PP-D | 110V=5.1W
220V=5.29W |
110V=38.02W
220V=38.2W |
130.34 | ||
CBS110-16T | 110V=11.33W
220V=11.53W |
N/A | 39.34 | ||
CBS110-16PP | 110V=11.16W
220V=11.41W |
110V=80.28W
220V=80.38W |
274.27 | ||
CBS110-24T | 110V=16.3W
220V=16.34W |
N/A | 55.75 | ||
CBS110-24PP | 110V=17.21W
220V=17.29W |
110V=135.67W
220V=133.82W |
462.93 | ||
Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports | ||||
Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models |
||||
Operating temperature | 32° to 104°F (0° to 40°C) | ||||
Storage temperature | –4° to 158°F (–20° to 70°C) | ||||
Operating humidity | 10% to 90%, relative, non-condensing | ||||
Storage humidity | 5% to 90%, relative, non-condensing | ||||
Acoustic noise and Mean Time Between Failures (MTBF) | Model name | Fan (number) | Acoustic noise | MTBF at 25°C (hours) | |
CBS110-5T-D | Fanless | N/A | 4,243,002 | ||
CBS110-8T-D | Fanless | N/A | 2,066,844 | ||
CBS110-8PP-D | Fanless | N/A | 465,437 | ||
CBS110-16T | Fanless | N/A | 2,685,092 | ||
CBS110-16PP | Fanless | N/A | 1,971,811 | ||
CBS110-24T | Fanless | N/A | 524,296 | ||
CBS110-24PP | Fanless | N/A | 340,703 | ||
Warranty | Limited lifetime | ||||
Package contents | |||||
|
|||||
Minimum requirements | |||||
|
