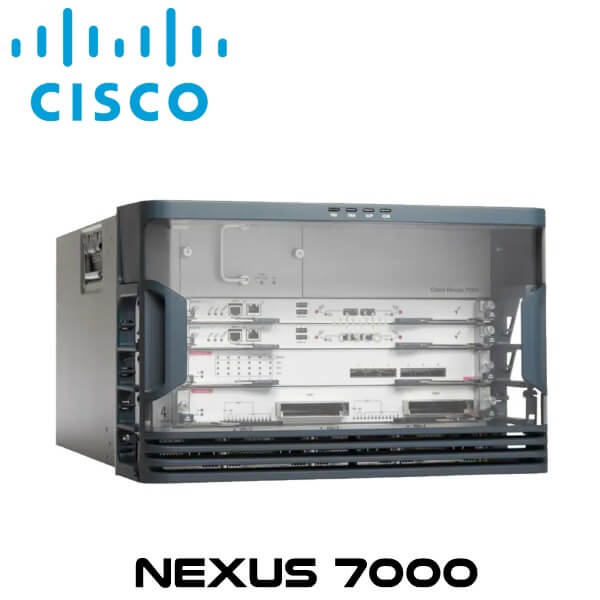

Cisco Nexus7000-4Slot Chassis Switch Kenya

The Cisco Nexus7000-4Slot Kenya chassis comes with two I/O module slots supports up to 96 x 1 and 10 Gigabit Ethernet ports, 12 x 40 Gigabit Ethernet ports and 4 x 100 Gigabit Ethernet ports, meeting the needs of small to medium-size data centers, co-locations, access- and aggregation-layer deployments, high-speed core deployments, and smaller operation zones. The Cisco Nexus7000-4Slot Kenya chassis also has two dedicated supervisor slots to provide full redundancy and high availability. The 4-slot chassis does not require fabric modules. The local I/O module fabrics are connected back to back to form a two-stage crossbar that interconnects the I/O modules and the supervisor engines. The backplane capacity is determined by the installed I/O modules.

Features

High Availability

The Cisco Nexus 7000 4-Slot Switch provides :
Fully redundant system architecture with dual supervisors, redundant power supplies, and fans
Lossless, non-disruptive In-Service Software Upgrades (ISSUs) for zero service downtime
Graceful system operations to minimize the effect of upgrades and other maintenance

Scalability

Protect your infrastructure investments with the following features :

92 Tbps of switching capacity to scale for future growth demands
Highly scalable modular NX-OS features such as Fabric Path and Fabric Extender (FEX) technology

Transport Flexibility

This switch offers transport flexibility with :

Support for 1, 10, 40, and 100 Gigabit Ethernet interfaces
Optics options from short-range to long-range DWDM
Fibre Channel over Ethernet (FCoE) for LAN and SAN consolidation

In addition, you get extensive Cisco Data Center Interconnect features, including :

Overlay Transport Virtualization
Locator ID Separation Protocol
Multiprotocol Label Switching (MPLS)

Operational Efficiency

Enhance your data center with increased operational efficiency, including :
Single software image with a consistent NX-OS feature set across the Cisco Nexus 7000 Series
Virtual Device Context (VDC) for efficient resource utilization
Simplified management with choices of Simple Network Management Protocol (SNMP), XML API, and Cisco Data Center Network Manager
Integrated alerts with Cisco IOS Embedded Event Manager (EEM)

Integrated cable management system

designed to support the cabling requirements of a fully configured system at either or both sides of the switch, allowing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance tasks with little disruption.

Easy to Operate

A series of LEDs at the top of the chassis provide a clear summary of the status of the major system components, alerting operators to the need to conduct further investigation. These LEDs report the power supply, fan, fabric, supervisor, and I/O module status.

Convenient Design

Cisco Nexus7000-4Slot Kenya has purpose-built optional front-module door provides protection from accidental interference with both the cabling and modules installed in the system. The transparent front door allows easy observation of cabling and module indicators and status lights without any need to open the doors, reducing the likelihood of faults caused by human interference. The door supports a dual-opening capability for flexible operation and cable installation while fitted. The door can easily be completely removed for both initial cabling and day-to-day management of the system.

Energy-Efficient Design

The Cisco Nexus7000-4Slot Kenya uses power supplies that are up to 90 percent efficient, so less power is wasted as heat, and more power is available for the system to use than with typical power supplies. The fan modules in the chassis adjust to compensate for changing thermal characteristics.

Specifications

Item	Cisco Nexus 7000 4-Slot Switch	Cisco Nexus 7000 9-Slot Switch	Cisco Nexus 7000 10-Slot Switch	Cisco Nexus 7000 18-Slot Switch
Product compatibility	Supports all Cisco Nexus 7000 Series Supervisor and I/O modules except the following : N7K-SUP1 N7K-M132XP-12 N7K-M148GS-11 N7K-M148GT-11 N7K-F132XP-15 Does not use fabric modules	Supports all Cisco Nexus 7000 Series Supervisor and I/O modules Supports Fabric2 modules Does not support Fabric1 modules	Supports all Cisco Nexus 7000 Series Supervisor and I/O modules Supports Fabric1 and Fabric2 modules	Supports all Cisco Nexus 7000 Series Supervisor and I/O modules Supports Fabric1 and Fabric2 modules
Max local switching capacity	600 Gbps	600 Gbps	600 Gbps	600 Gbps
Max inter-slot switching capacity	440 Gbps	550 Gbps	550 Gbps	550 Gbps
Software compatibility	Cisco NX-OS Software Release 6.1(2) or later	Cisco NX-OS Software Release 5.2 or later	Cisco NX-OS Software Release 4.0 or later	Cisco NX-OS Software Release 4.1 or later
Options	Lockable front module door	Lockable front module door	Air filter Lockable front module doors	Lockable front module door
Performance	1.44 billion packets per second (bpps) (IPv4 unicast) in combination with supervisor module and built-in fabric	5.04 bpps (IPv4 unicast) in combination with supervisor and fabric modules	5.76 bpps (IPv4 unicast) in combination with supervisor and fabric modules	11.5 bpps (IPv4 unicast) in combination with supervisor and fabric modules
Reliability and availability	Online insertion and removal (OIR) of all redundant components : supervisor modules, power supplies, and fan trays	OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays	OIR of all redundant components : Supervisor and fabric modules, power supplies, and fan trays	OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs	Supports Simple Network Management Protocol (SNMP) Versions 3, 2c, and 1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management	Cisco Data Center Network Manager (DCNM) 6.1.(2) or later	Cisco DCNM 5.2 or later	Cisco DCNM 4.0 or later	Cisco DCNM 4.1 or later
Programming interfaces	XML Scriptable command-line interface (CLI) Cisco DCNM 6.1(2) web services	XML Scriptable CLI Cisco DCNM 5.2 web services	XML Scriptable CLI Cisco DCNM 4.0 web services	XML Scriptable CLI Cisco DCNM 4.1 web services
Physical specifications	Usable rack space : 7RU 4-slot chassis : 2 dedicated supervisor modules and 2 I/O modules 4 power supply slots Dimensions (H x W x D) : 12.2 x 17.3 x 24 in. (30.9 x 43.9 x 61 cm) Chassis depth including cable management and chassis doors is 29.6 in. (75.2 cm) Unit is rack mountable in a standard 19-inch (482.6-mm) Electronic Industries Alliance (EIA) rack Weight Chassis only : 45 lb. (20 kg) Fan Tray : 25 lb (11.3 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies Supports up to 6 chassis stacked in a 42RU rack	Usable rack space : 14RU 9-slot chassis : 2 dedicated supervisor modules and 7 I/O modules 5 fabric module slots 2 power supply slots Dimensions (H x W x D) : 24.5 x 17.3 x 24 in. (62.2 x 43.9 x 61 cm) Chassis depth including cable management and chassis doors is 29 in. (73.7 cm) Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack Weight Chassis only : 100 lb. (45 kg) Fabric Module : 5 lb (2.3 kg) Fan Tray : 25 lb (11.3 kg) Supports 6-kW and 7.5-kW AC and DC power supplies Supports up to 3 chassis stacked in a 42RU rack	Usable rack space : 21RU 10-slot chassis : 2 dedicated supervisor modules and 8 I/O modules 5 fabric module slots 3 power supply slots Dimensions (H x W x D) : 36.5 x 17.3 x 33.1 in. (92.7 x 43.9 x 84.1 cm) Chassis depth including cable management and chassis doors is 38 in. (96.5 cm) Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack Weight Chassis only : 200 lb. (90 kg) Fabric Module : 4 lb (1.8 kg) System Fan Tray : 20 lb (9.1 kg) Fabric Fan Tray : 5 lb (2.3 kg) Supports 6-kW and 7.5-kW AC and DC power supplies	Usable rack space : 25RU 18-slot chassis : 2 dedicated supervisor modules and 16 I/O modules 5 fabric module slots 4 power supply slots Dimensions (H x W x D) : 43.5 x 17.3 x 33.1 in. (110.5 x 43.9 x 84.1 cm) Chassis depth including cable management and chassis doors is 38 in. (96.5 cm) Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack Weight Chassis only : 187 lb. (85 kg) Fabric Module : 7.5 lb (3.4 kg) Fan Tray : 25.8 lb (11.7 kg) Supports 6-kW and 7.5-kW AC and DC power supplies
Environmental specifications	Airflow direction : Side to rear Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, non-condensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 42 lb. per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, non-condensing Heat dissipation : Maximum 3500W per chassis (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Side to side Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, non-condensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 104 lb. per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, non-condensing Heat dissipation : Maximum 7500W per chassis (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Bottom front of chassis to top back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, non-condensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 190 lb. per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : 1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, non-condensing Heat dissipation : Maximum 12,000W per chassis (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Side to side Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, non-condensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 190 lb. per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : 1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, non-condensing Heat dissipation : Maximum 18,000W per chassis (actual dissipation will be lower, depending on the chassis configuration)
