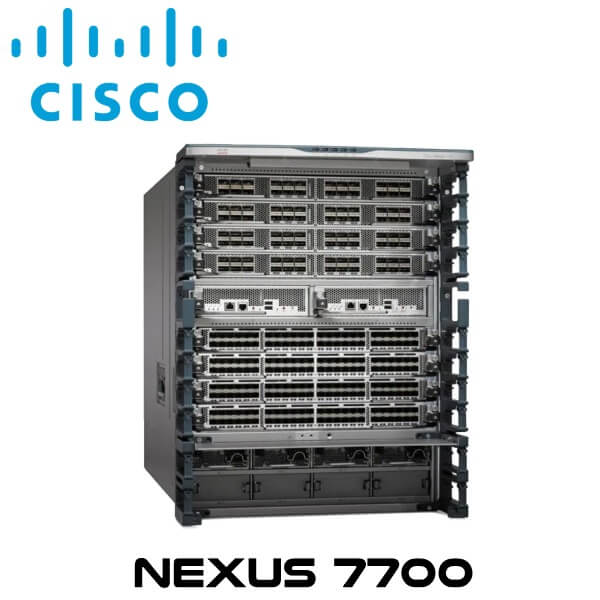

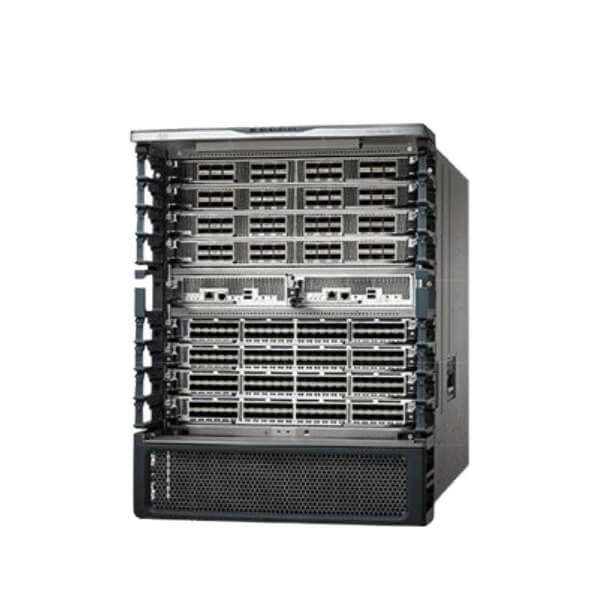

The Cisco Nexus7700-10Slot Kenya is a 10-slot switch with 10 front-accessible module slots with front-to-back airflow and an integrated cable management system. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.

Description

Cisco Nexus7700-10Slot Chassis Network Switch Kenya

The Cisco Nexus7700-10Slot Kenya is a 10-slot switch with 10 front-accessible module slots with front-to-back airflow and an integrated cable management system. This high system capacity is designed to meet the scalability requirements of the largest cloud environments. Featuring the latest extension to the Cisco Nexus 7000 Series modular switches Cisco Nexus7700-10Slot Kenya is equipped with more than 83 Terabits per second (Tbps) of overall switching capacity, delivering the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports. The Cisco Nexus7700-10Slot Kenya chassis use a passive mid-plane architecture, providing physical connectors and copper traces for interconnecting the fabric modules and I/O modules for direct data transfer. All inter-module switching is performed via crossbar fabric ASICs on the individual I/O modules and fabric modules.

A scalable, fully distributed fabric architecture uses up to six fabric modules to deliver up to 1.32 Tbps per slot of bandwidth in the Cisco Nexus7700-10Slot Kenya on day one. The midplane design on the Cisco Nexus7700-10Slot Kenya supports flexible technology upgrades as your needs change, providing ongoing investment protection. Future fabric modules will allow higher bandwidth capabilities on the platform. Standard fan trays are included as part of the Nexus Cisco Nexus7700-10Slot Kenya chassis and also supports optional generation 2 fan trays. All fan trays provide NEBS compliance in combination with the rest of the components of the chassis for specific system configurations. Additionally, the generation 2 fan trays provide NEBS Level-3 acoustic compliance and short term operation at 55C for the Cisco Nexus7700-10Slot Kenya chassis if configured with the Nexus 7700 M3 100G I/O modules or future I/O modules.

Features

  • The Cisco Nexus7700-10Slot Kenya, with up to eight I/O module slots, supports up to 384 x 1 and 10 Gigabit Ethernet ports, 192 x 40 Gigabit Ethernet ports, and 96 x 100 Gigabit Ethernet ports, to meet the demands of large data center deployments.
  • The Cisco Nexus7700-10Slot Kenya Switch has two dedicated half-slot supervisors to provide full redundancy, stateful supervisor switchover, and hitless In-Service Software Upgrade (ISSU) capabilities.
  • The Cisco Nexus7700-10Slot Kenya has six fabric module slots to provide simultaneously active fabric channels to each of the I/O and supervisor modules. Through the parallel forwarding fabric architecture, the Cisco Nexus 7710 can achieve 21 Tbps of forwarding capacity or more.
  • Front-to-back airflow helps ensure that the Cisco Nexus7700-10Slot Kenya addresses the requirement for hot-aisle and cold-aisle deployments to help provide efficient cooling.
  • The system uses three redundant fan trays for cooling. Each fan tray is composed of independent variable-speed fans that automatically adjust to the ambient temperature, to help reduce power consumption in well-managed facilities while helping to enable optimum operation of the switch. The system also allows hot swapping of fan trays without negatively affecting the system.
  • The system supports an optional door and air filter to promote clean airflow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.
  • The Cisco Nexus7700-10Slot Kenya Switch can have up to eight 3- or 3.5-(kW) power supplies. The smaller power supply configuration provides more flexibility and greater control in power provisioning. The eight power supply bays are designed for future growth, and most common configurations do not require the use of all power supply units for redundant power configurations.
  • I/O modules, supervisor modules, and power supplies are accessible from the front, and fabric modules and fan trays are accessible from the back of the chassis.
  • An integrated cable management system, custom designed for Cisco Nexus7700-10Slot Kenya, supports the cabling requirements of a fully configured system at either or both sides of the switch, providing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance with no disruption.
  • Cisco Nexus7700-10Slot Kenya has series of LEDs at the top of the chassis providing a clear summary of the status of the major system components, alerting operators to the need to conduct further investigation. These LEDs report the power supply, fan, fabric, supervisor, and I/O module status.
  • Cisco Nexus7700-10Slot Kenya is energy-efficient designed. The Switch Kenya use 3.5-kW and 3-kW power supplies that are 96 and 90 percent efficient or greater, so less power is dissipated as heat, and more power is available for the system to use than with typical power supplies. These high-efficiency power supplies allow smaller power configuration and provide flexible power provisioning.

Specifications

Item Cisco Nexus 7700 2-Slot Chassis Cisco Nexus 7700 6-Slot Switch Cisco Nexus 7700 10-Slot Switch Cisco Nexus 7700 18-Slot Switch
Port count 48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps 192 x 10 Gbps, 96 x 40 Gbps, and 48 x 100 Gbps 384 x 10 Gbps, 192 x 40 Gbps, and 96 x 100 Gbps 768 x 10 Gbps, 384 x 40 Gbps, and 192 x 100 Gbps
Product compatibility
  • Supports all Cisco Nexus 7700 switch modules except the following :
    • N77-F248XP-23E
  • Does not use fabric modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
  • Supports Cisco Nexus 7700 Series Fabric 3 modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
  • Supports Cisco Nexus 7700 Series Fabric 3 modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
Software compatibility Cisco NX-OS Software Release 7.2 or later Cisco NX-OS Software Release 6.2.6 or later Cisco NX-OS Software Release 6.2.2 or later Cisco NX-OS Software Release 6.2.2 or later
Options Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Power supply center cable management

System forwarding capacity No fabric modules

All I/O modules are line rate

21 Tbps 42 Tbps 83 Tbps
Max local switching capacity* 2.4 Tbps 2.4 Tbps 2.4 Tbps 1.2 Tbps
Max inter-slot switching capacity* n/a 2.4 Tbps 2.4 Tbps 1.2 Tbps
Reliability and availability Online insertion and removal (OIR) of redundant power supplies OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM)
Programming interfaces
  • XML
  • Scriptable command-line interface (CLI)
  • Cisco DCNM web services
  • Python
  • Tool Command Language (TCL)
  • Cisco IOS  Embedded Event Manager (EEM)
  • Cisco One Platform Kit (OnePK )
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
Physical specifications
  • Required rack space : 3RU
  • 2-slot switch : 1 dedicated supervisor module and 1 I/O module
  • No fabric modules
  • 2 power supply slots
  • Dimensions (H x W x D) : 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm)
  • Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
  • Weight
    • Chassis only : 37.5 lb (17 kg)
    • Fan Tray : 13.5 lb (6.1 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 9RU
  • 6-slot switch : 2 dedicated supervisor modules and 4 I/O modules
  • 6 fabric module slots
  • 4 power supply slots
  • Dimensions (H x W x D) : 15.6 x 17.3 x 32 in. (39.62 x 43.9 x 81.3 cm)
  • Chassis depth, including cable management and chassis doors, is 38 in. (96.52 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
  • Weight
    • Chassis only : 145 lb (65.8 kg)
    • Fabric Module : 5.6 lb (2.5 kg)
    • Fan Tray : 5.3 lb (2.4 kg)
    • Fan Tray (Generation 2) : 7.75 lb (3.5 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 14RU
  • 10-slot switch : 2 dedicated supervisor modules and 8 I/O modules
  • 6 fabric module slots
  • 8 power supply slots
  • Dimensions (H x W x D) : 24.35 x 17.3 x 34 in. (61.85 x 43.9 x 86.4 cm)
  • Chassis depth, including cable management and chassis doors, is 40 in. (101.6 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 160 lb (72.6 kg)
    • Fabric Module : 11 lb (5.0 kg)
    • Fan Tray : 8.5 (3.9 kg)
    • Fan Tray (Generation 2) : 12 lb (5.4 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 26RU
  • 18-slot switch : 2 dedicated supervisor modules and 16 I/O modules
  • 6 fabric module slots
  • 16 power supply slots
  • Dimensions (H x W x D) : 45.25 x 17.3 x 35 in. (114.9 x 43.9 x 88.9 cm)
  • Chassis depth, including cable management and chassis doors, is 41 in. (104.1 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 300 lb (136.0 kg)
    • Fabric Module : 20 lb (9.1 kg)
    • Fan Tray : 13.5 lb (6.1 kg)
    • Fan Tray (Generation 2) : 17.75 lb (8.1 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
Environmental specifications
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 24 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 92 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 26,280 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 122 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : – 40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 52,500 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 230 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 96,160 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
Regulatory compliance
  • EMC compliance
  • FCC Part 15 (CFR 47) (USA) Class A
  • ICES-003 (Canada) Class A
  • EN55022 (Europe) Class A
  • CISPR22 (International) Class A
  • AS/NZS CISPR22 (Australia and New Zealand) Class A
  • VCCI (Japan) Class A
  • KN22 (Korea) Class A
  • CNS13438 (Taiwan) Class A
  • CISPR24
  • EN55024
  • EN50082-1
  • EN61000-3-2
  • EN61000-3-3
  • EN61000-6-1
  • EN300 386
Environmental standards
  • NEBS criteria levels
  • SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
  • Verizon NEBS compliance
  • Telecommunications Carrier Group (TCG) checklist
  • Century Link NEBS requirements
  • Telecommunications Carrier Group (TCG) checklist
  • ATT NEBS requirements
  • ATT TP76200 level 3
  • ETSI
  • ETSI 300 019-2-1, Class 1.2 storage
  • ETSI 300 019-2-2, Class 2.3 transportation
  • ETSI 300 019-2-3, Class 3.2 stationary use
Safety
  • UL/CSA/IEC/EN 60950-1
  • AS/NZS 60950
