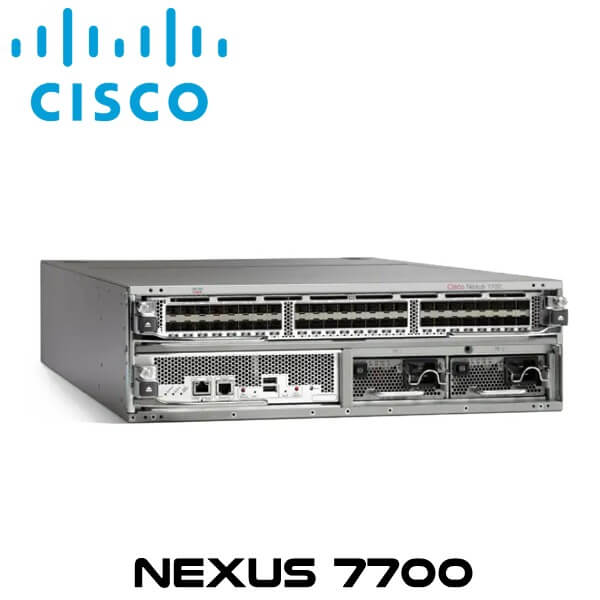

The Cisco Nexus7700-2Slot Kenya switch comes with two front-accessible module slots with front-to-back airflow and an integrated cable management system. The Cisco Nexus7700-2Slot Kenya is the foundation of the Cisco® Unified Fabric solution.

Description

Cisco Nexus7700-2Slot Chassis Network Switch Kenya

The Cisco Nexus7700-2Slot Kenya switch comes with two front-accessible module slots with front-to-back airflow and an integrated cable management system. The Cisco Nexus7700-2Slot Kenya is the foundation of the Cisco Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set. Cisco Nexus7700-2Slot Kenya chassis use a passive mid-plane architecture, providing physical connectors and copper traces for interconnecting the fabric modules and I/O modules for direct data transfer. All inter-module switching is performed via crossbar fabric ASICs on the individual I/O modules and fabric modules.

Features

Compact Form Factor

The Cisco Nexus7700-2Slot Kenya is space optimized to deliver lower TCO :

  • Its 3RU chassis has one module slot.
  • It supports 48 ports of 1/10 GE, 24 ports of 40 GE, or 12 ports of 100 GE; all ports are nonblocking.
  • Power consumption is low.
  • It delivers true front-to-back air flow for hot-cold aisle deployments.

Deployment Flexibility

The Cisco Nexus7700-2Slot Kenya switch is designed to extend the feature richness of the Nexus 7700 family to small and medium-sized deployments. The comprehensive DCI feature set includes Cisco Overlay Transport Virtualization (OTV), Cisco Locator/ID Separation Protocol (LISP), Cisco IOS Multiprotocol Label Switching (MPLS), and Virtual Private LAN Service (VPLS). The switch is hardware ready for Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) technologies.

In addition, the compact sever chassis offers :

  • High-performance Remote Integrated Service Engine (RISE) and Intelligent Traffic Director (ITD) services from Cisco
  • Comprehensive Layer 2 and Layer 3 feature sets for small data center aggregation and campus cores

Operation and Feature Consistency

Cisco Nexus7700-2Slot Kenya maintain consistency with the Cisco Nexus 7000 Series, offering :

  • The same proven common architecture, application-specific integrated circuits (ASICs), and Cisco NX-OS software
  • One of the industry’s most comprehensive data center feature sets
  • The same software train across the entire Cisco Nexus 7000 Series to help ensure consistency

Other Features and Benefits

  • The Cisco Nexus7700-2Slot Kenya Switch, with one I/O module slots, supports up to 48 x 1 and 10 Gigabit Ethernet ports, 24 x 40 Gigabit Ethernet ports, or 12 x 100 Gigabit Ethernet ports, to meet the demands of small campus and data center deployments in a compact 3 Rack Units (RU) footprint.
  • The Cisco Nexus7700-2Slot Kenya Switch has one dedicated half-slot supervisor.
  • The Cisco Nexus 7700 2-slot chassis does not include any fabric modules as it has a single module only. The system is capable of supporting all current and future Cisco Nexus 7700 modules at full line-rate switching capacity.
  • Front-to-back airflow helps ensure that the Cisco Nexus 7702 addresses the requirement for hot-aisle and cold-aisle deployments, to help provide efficient cooling.
  • The system uses one fan tray for cooling. The fan tray is composed of three independent variable-speed fans that automatically adjust to the ambient temperature, helping to reduce power consumption in well-managed facilities while supporting optimum operation of the switch.
  • The system supports an optional door and air filter to help ensure clean airflow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.
  • The Cisco Nexus 7700 2-Slot Switch can have up to two 3- or 3.5-kilowatt (KW) power supplies. The redundant power supply configuration provides more flexibility in power redundancy configuration.
  • The I/O module, supervisor module, and power supplies are accessible from the front, and the fan tray is accessible from the back of the chassis.
  • The I/O module, supervisor module, and power supplies are inter-changeable across all Cisco Nexus 7700 chassis.

Cable Management System

An integrated cable management system, custom designed for the Cisco Nexus7700-2Slot Kenya, supports the cabling requirements of a fully configured system at either or both sides of the switch, providing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance with no disruption

Energy-Efficient Design

The Cisco Nexus7700-2Slot Kenya power supplies 90 percent efficient or greater, so less power is dissipated as heat, and more power is available for the system to use than with typical power supplies. These high-efficiency power supplies allow smaller power configuration and provide flexible power provisioning. The fan trays in the switches have variable speed fans that adjust to compensate for changing thermal characteristics and use less power at typical operating conditions. Standard fan trays are included as part of the Cisco Nexus7700-2Slot Kenya chassis.

Specifications

Item Cisco Nexus 7700 2-Slot Chassis Cisco Nexus 7700 6-Slot Switch Cisco Nexus 7700 10-Slot Switch Cisco Nexus 7700 18-Slot Switch
Port count 48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps 192 x 10 Gbps, 96 x 40 Gbps, and 48 x 100 Gbps 384 x 10 Gbps, 192 x 40 Gbps, and 96 x 100 Gbps 768 x 10 Gbps, 384 x 40 Gbps, and 192 x 100 Gbps
Product compatibility
  • Supports all Cisco Nexus 7700 switch modules except the following :
    • N77-F248XP-23E
  • Does not use fabric modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
  • Supports Cisco Nexus 7700 Series Fabric 3 modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
  • Supports Cisco Nexus 7700 Series Fabric 3 modules
  • Supports all Cisco Nexus 7700 Series Supervisor and I/O modules
  • Supports Cisco Nexus 7700 Series Fabric-2 modules
Software compatibility Cisco NX-OS Software Release 7.2 or later Cisco NX-OS Software Release 6.2.6 or later Cisco NX-OS Software Release 6.2.2 or later Cisco NX-OS Software Release 6.2.2 or later
Options Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Door air filter

Lockable front module doors

Power supply center cable management

System forwarding capacity No fabric modules

All I/O modules are line rate

21 Tbps 42 Tbps 83 Tbps
Max local switching capacity* 2.4 Tbps 2.4 Tbps 2.4 Tbps 1.2 Tbps
Max inter-slot switching capacity* n/a 2.4 Tbps 2.4 Tbps 1.2 Tbps
Reliability and availability Online insertion and removal (OIR) of redundant power supplies OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM) Cisco Data Center Network Manager (DCNM)
Programming interfaces
  • XML
  • Scriptable command-line interface (CLI)
  • Cisco DCNM web services
  • Python
  • Tool Command Language (TCL)
  • Cisco IOS  Embedded Event Manager (EEM)
  • Cisco One Platform Kit (OnePK )
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
  • XML
  • Scriptable CLI
  • Cisco DCNM web services
  • Python
  • TCL
  • Cisco IOS EEM
  • Cisco OnePK
  • OpenFlow
Physical specifications
  • Required rack space : 3RU
  • 2-slot switch : 1 dedicated supervisor module and 1 I/O module
  • No fabric modules
  • 2 power supply slots
  • Dimensions (H x W x D) : 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm)
  • Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
  • Weight
    • Chassis only : 37.5 lb (17 kg)
    • Fan Tray : 13.5 lb (6.1 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 9RU
  • 6-slot switch : 2 dedicated supervisor modules and 4 I/O modules
  • 6 fabric module slots
  • 4 power supply slots
  • Dimensions (H x W x D) : 15.6 x 17.3 x 32 in. (39.62 x 43.9 x 81.3 cm)
  • Chassis depth, including cable management and chassis doors, is 38 in. (96.52 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
  • Weight
    • Chassis only : 145 lb (65.8 kg)
    • Fabric Module : 5.6 lb (2.5 kg)
    • Fan Tray : 5.3 lb (2.4 kg)
    • Fan Tray (Generation 2) : 7.75 lb (3.5 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 14RU
  • 10-slot switch : 2 dedicated supervisor modules and 8 I/O modules
  • 6 fabric module slots
  • 8 power supply slots
  • Dimensions (H x W x D) : 24.35 x 17.3 x 34 in. (61.85 x 43.9 x 86.4 cm)
  • Chassis depth, including cable management and chassis doors, is 40 in. (101.6 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 160 lb (72.6 kg)
    • Fabric Module : 11 lb (5.0 kg)
    • Fan Tray : 8.5 (3.9 kg)
    • Fan Tray (Generation 2) : 12 lb (5.4 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Required rack space : 26RU
  • 18-slot switch : 2 dedicated supervisor modules and 16 I/O modules
  • 6 fabric module slots
  • 16 power supply slots
  • Dimensions (H x W x D) : 45.25 x 17.3 x 35 in. (114.9 x 43.9 x 88.9 cm)
  • Chassis depth, including cable management and chassis doors, is 41 in. (104.1 cm)
  • Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)
  • Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 300 lb (136.0 kg)
    • Fabric Module : 20 lb (9.1 kg)
    • Fan Tray : 13.5 lb (6.1 kg)
    • Fan Tray (Generation 2) : 17.75 lb (8.1 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
Environmental specifications
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 24 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 92 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 26,280 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 122 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : – 40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 52,500 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Front to back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, noncondensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 230 lbs per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, noncondensing
  • Heat dissipation : Maximum 96,160 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
Regulatory compliance
  • EMC compliance
  • FCC Part 15 (CFR 47) (USA) Class A
  • ICES-003 (Canada) Class A
  • EN55022 (Europe) Class A
  • CISPR22 (International) Class A
  • AS/NZS CISPR22 (Australia and New Zealand) Class A
  • VCCI (Japan) Class A
  • KN22 (Korea) Class A
  • CNS13438 (Taiwan) Class A
  • CISPR24
  • EN55024
  • EN50082-1
  • EN61000-3-2
  • EN61000-3-3
  • EN61000-6-1
  • EN300 386
Environmental standards
  • NEBS criteria levels
  • SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
  • Verizon NEBS compliance
  • Telecommunications Carrier Group (TCG) checklist
  • Century Link NEBS requirements
  • Telecommunications Carrier Group (TCG) checklist
  • ATT NEBS requirements
  • ATT TP76200 level 3
  • ETSI
  • ETSI 300 019-2-1, Class 1.2 storage
  • ETSI 300 019-2-2, Class 2.3 transportation
  • ETSI 300 019-2-3, Class 3.2 stationary use
Safety
  • UL/CSA/IEC/EN 60950-1
  • AS/NZS 60950
