Cisco Nexus9332C Kenya

Description

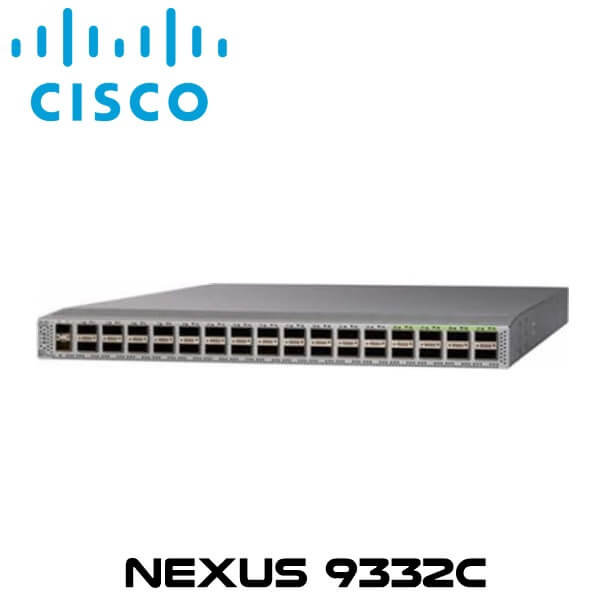

Cisco Nexus9332C Spine Switch Kenya

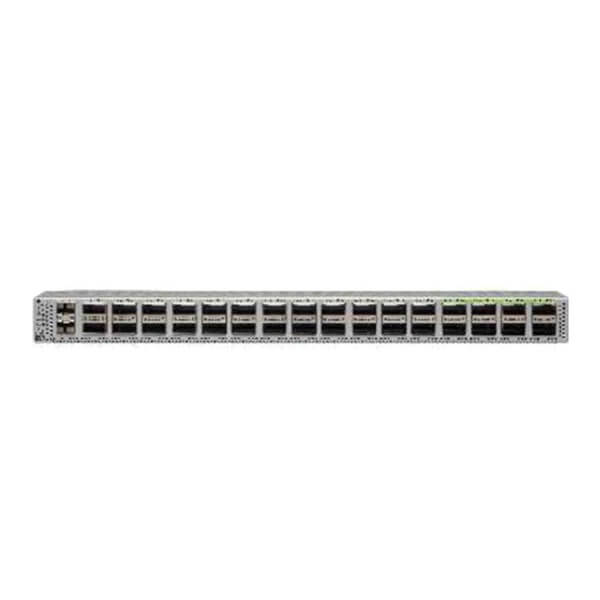

The Cisco Nexus9332C Kenya is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption. Based on Cisco Cloud Scale technology, Cisco Nexus9332C Kenya supports cost-effective, ultra-high-density cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platform is built on modern system-architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.

The Cisco Nexus9332C Kenya is designed to support innovative technologies such as Media Access Control Security (MACsec), Virtual Extensible LAN (VXLAN), tunnel endpoint VTEP-to-VTEP overlay encryption, CloudSec and Streaming Statistics Export (SSX). MACsec is a security technology that allows traffic encryption at the physical layer and provides secure server, border leaf, and leaf-to-spine connectivity. SSX is hardware-based, consisting of a module that reads statistics from the ASIC and sends them to a remote server for analysis. Through this application, users can better understand network performance without any impact on the switch control plane or CPU

Features

Architectural flexibility

Cisco Nexus9332C Kenya supports for architecture Cisco ACI and NX-OS
Equipped with 36 ports support 10/25/40/100 Gbps QSFP28 and wire-rate MACsec encryption
Supports 7.2 Tbps of bandwidth and over 2.8 bpps
Cisco Nexus9332C Kenya has automated, policy-based systems management with Cisco ACI
Build programmable SDN fabrics leveraging open APIs
Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability
Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns

Security and analytics

The Cisco Nexus9332C Kenya secure applications through allow list model, policy enforcement, and micro-segmentation

Highly available and efficient design

High-performance, Layer 2 and 3 non-blocking architecture
Easily deployed into either a hot-aisle or cold-aisle configuration

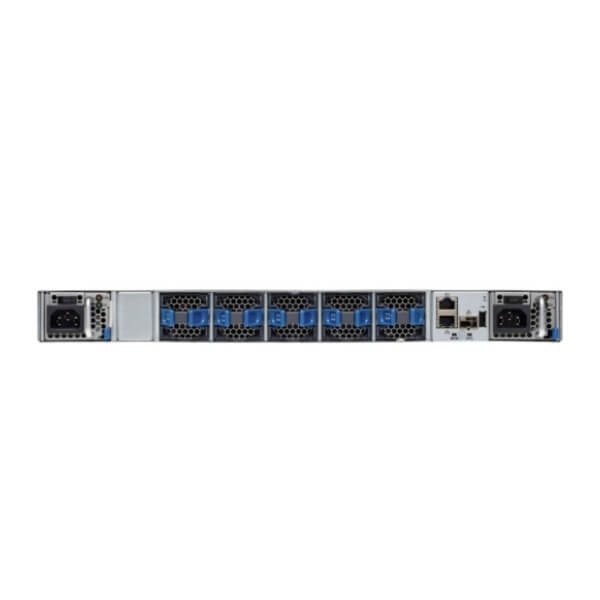

Redundant, hot-swappable power supplies and fan trays

Simplified operations

Automate IT work flows and shorten app deployment from weeks to minutes with Cisco ACI
Deploy, scale, and migrate applications seamlessly across multiple hybrid data centers
Open REST APIs with NX-OS help DevOps speed and simplify deployment

Real-time visibility and telemetry

Cisco Nexus9332C Kenya supports with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection
support for network traffic monitoring and analysis
Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
Rich traffic flow telemetry with line-rate data collection

Specifications

Model	Cisco Nexus 9364C	Cisco Nexus 9332C
Physical	64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports Buffer : 40MB System memory : 32GB SSD : 128GB USB : 1 port RS-232 serial console ports : 1 Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) Broadwell-DE CPU : 4 cores	32-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports Buffer : 40MB System memory : 16 GB SSD : 128GB USB : 1 port RS-232 serial console ports : 1 Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) Broadwell-DE CPU : 4 cores
Power and cooling	Power : 1200W AC, 930W DC or 1200W HVAC/HVDC Input voltage : 100 to 240V ^* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) ^*Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V Hot-swappable, dual fan trays with redundant fans Frequency : 50 to 60 Hz (AC) Efficiency : 90% or greater (20 to 100% load) Port-side intake or port-side exhaust options Typical power : 429W (AC) Maximum power : 1245W (AC)	Power : 750W AC, 1100W AC, 1100 DC or 1100W HVAC/HVDC Input voltage : 100 to 240V ^* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) ^*Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V Hot-swappable, 5 fans with redundancy Frequency : 50 to 60 Hz (AC) Efficiency : 90% or greater (20 to 100% load) RoHS compliance : Yes Port-side intake or port-side exhaust options Typical power : 296W (AC) Maximum power : 700W (AC)
Environmental	Physical (H x W x D) : 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) Weight : 36.9 lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans Operating temperature : 32 to 104°F (0 to 40°C) Nonoperating (storage) temperature : –40 to 158°F (–40 to 70°C) Humidity : 5 to 90% (non-condensing) Altitude : 0 to 13,123 ft (0 to 4000m) RoHS compliance : Yes	Physical (H x W x D) : 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) Weight : 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans Operating temperature : 32 to 104°F (0 to 40°C) Nonoperating (storage) temperature : –40 to 158°F (–40 to 70°C) Humidity : 5 to 90% (non-condensing) Altitude : 0 to 13,123 ft (0 to 4000m) RoHS compliance : Yes
Acoustics	Fan speed at 40% : 76.7 dBA Fan speed at 70% : 88.7 dBA Fan speed at 100% : 97.4 dBA	Fan speed at 50% : 76.4 dBA Fan speed at 70% : 83.3 dBA Fan speed at 100% : 92.1 dBA
MTBF	257,860 hours	363,500 hours
