Description

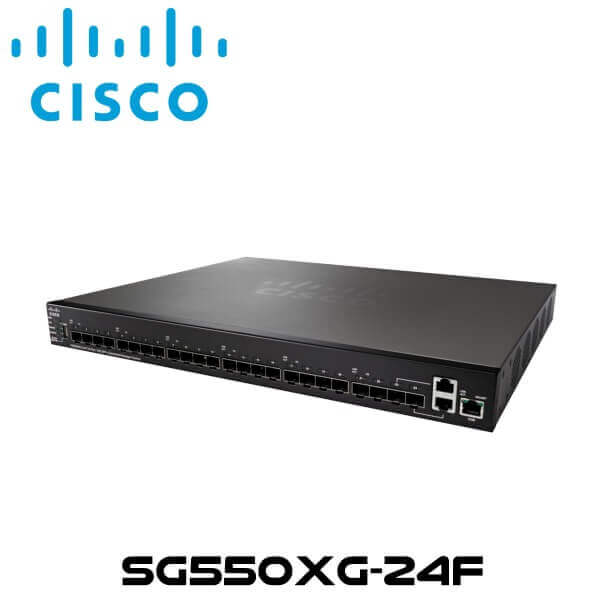

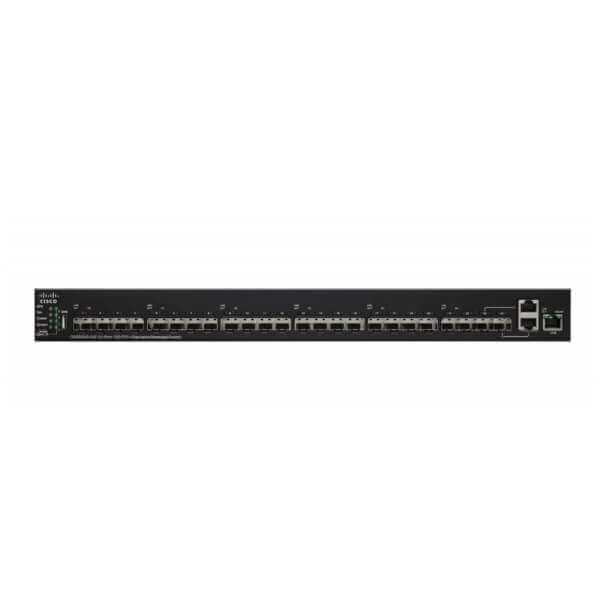

Cisco SG550XG-24F Network Switch Kenya
The Cisco SG550XG-24F Kenya features the next-generation stackable managed Ethernet switch, designed to provide advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Featuring next-generation stackable managed switch Cisco SG550XG-24F Kenya, can bring immediate productivity gains to your organization. The switch also provides your network ready for more bandwidth-hungry applications in the future. Cisco SG550XG-24F Kenya switch incorporates fan and power hardware redundancy, increasing overall network availability. At the same time, Cisco SG550XG-24F Kenya switch is easy to deploy and manage, without a large IT staff. Cisco SG550XG-24F Kenya is designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. Cisco SG550XG-24F Kenya Switch provides the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand.
Features
Affordable 10 Gigabit Ethernet
10 Gigabit Ethernet delivers 10 times the performance to your network to promote higher productivity and business efficiency. The Cisco SG550XG-24F Kenya breaks the barrier of 10 Gigabit Ethernet adoptions with exceptional affordability.
Unmatched reliability and resiliency
The Cisco SG550XG-24F Kenya offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols. Keep your network running so your business never slows down.
Advanced features
The Cisco SG550XG-24F Kenya includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.
Power over Ethernet
The Power over Ethernet Plus (PoE+) standard provides up to 30 watts of power per port. The Cisco SG550XG-24F Kenya also support 60W PoE on selected ports to power compact switches and high-power wireless access points.
Energy efficiency
Cisco SG550XG-24F Kenya packs a variety of energy-saving features, including energy-detect mode, cable-length detection, and Energy-Efficient Ethernet, provide an eco-friendly and cost-effective network solution without compromising performance.
Specifications
| Cable | |
| Connectivity Details Type | Serial cable |
| Included Qty | 1 |
| Capacity | |
| Type | VLANs supported |
| Value | 4094 |
| Type | IPv4 routes (static) |
| Value | 8000 |
| Type | IPv6 routes (static) |
| Value | 4000 |
| Type | ACL rules |
| Value | 2000 |
| Type | QoS hardware queues |
| Type | 8 |
| Dimensions & Weight | |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 9.17 lbs |
| Width | 17.3 in |
| Environmental Parameters | |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 122 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -4 °F |
| Flash Memory | |
| Installed Size | 256 MB |
| Header | |
| Brand | Cisco |
| Compatibility | PC |
| Product Line | Cisco Small Business |
| Interface Provided | |
| Connector Type | RJ-45 |
| Type |
|
| Miscellaneous | |
| Authentication Method | RADIUS , Secure Shell (SSH) , TACACS+ |
| Color Category | Black |
| Compliant Standards | CSA 22.2 , FCC Part 15 A , UL 60950 |
| Encryption Algorithm | MD5 , SSL |
| MTBF | 642,449.21 hours |
| Networking | |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z |
| Connectivity Technology | Wired |
| Features | 16MB packet buffer , 802.1x authentication , Access Control List (ACL) support , ARP support , BOOTP support , Bridge protocol data unit (BPDU) , Broadcast Storm Control , Denial of Service (DoS) , DHCP client , DHCP relay , DHCP server , DHCP snooping , DHCP support , DiffServ Code Point (DSCP) support , DiffServ support , DoS attack prevention , Dynamic ARP Inspection (DAI) , Energy Efficient Ethernet , Flow control , Generic Attribute Registration Protocol (GARP) , Generic VLAN Registration Protocol (GVRP) , IGMP snooping , Internet Control Message Protocol (ICMP) , IP source guard , IP-MAC binding , Link Aggregation Control Protocol (LACP) , LLDP support , Management Information Base (MIB) , Multicast Storm Control , Multicast VLAN Registration (MVR) , Multiple Spanning Tree Protocol (MSTP) support , Port Security , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , Spanning Tree Protocol (STP) support , STP Root Guard , Syslog support , Type of Service (ToS) , Uni-Directional Link Detection (UDLD) , Unicast Storm Control , Virtual Route Redundancy Protocol (VRRP) support , Weighted Round Robin (WRR) queuing |
| Form Factor | Desktop , Rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 64K entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| Ports Qty | 24 |
| Power Over Ethernet (PoE) | No |
| Remote Management Protocol | CLI , HTTP , HTTPS , RMON , SCP , SNMP 1 , SNMP 2c , SNMP 3 , SSH , TFTP |
| Routing Protocol | CIDR , IGMP , IGMPv2 , IGMPv3 , MLD , MLDv2 , RIP , Static IPv4 routing , Static IPv6 routing , VRRP |
| Stackable | Stackable |
| Status Indicators | Fan , Link/activity , Port transmission speed , RPS (Redundant Power Supply) , System |
| Subcategory | Network hubs and switches |
| Subtype | 10 Gigabit Ethernet |
| Type | Switch |
| Power Device | |
| Features | Redundant Power System (RPS) connector |
| Frequency Required | 50/60 Hz |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | 77.5 Watt |
| Type | Internal power supply |
| RAM Size | 512 MB |
