Description

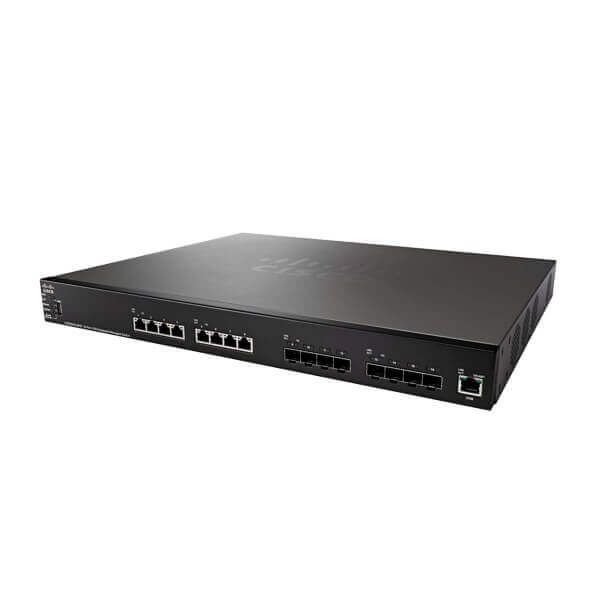

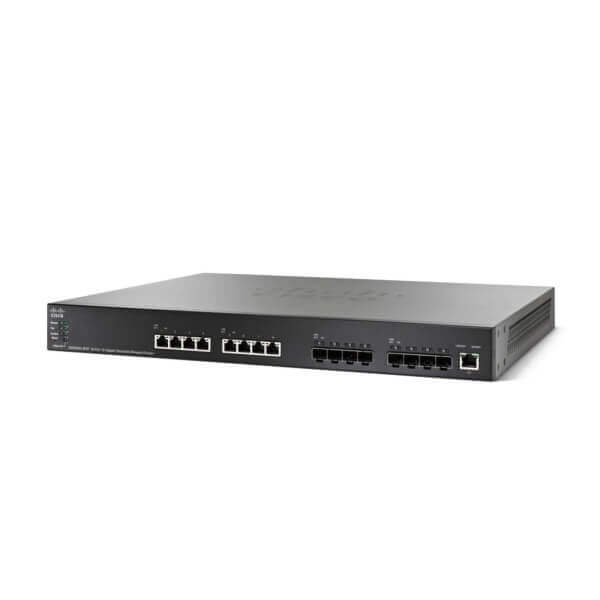

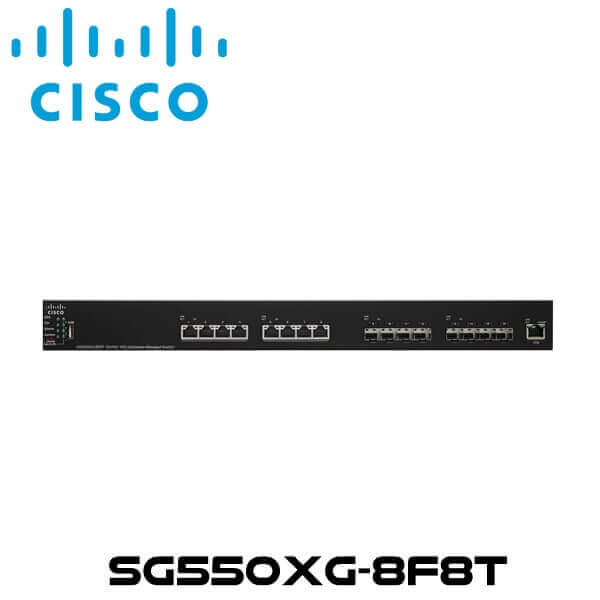

Cisco SG550XG-8F8T Network Switch Kenya
The Cisco SG550XG-8F8T Kenya stackable managed Ethernet switch, provides the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. The Cisco SG550XG-8F8T Kenya Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future. This switch incorporates fan and power hardware redundancy, increasing overall network availability at the same time, Cisco SG550XG-8F8T Kenya switch is easy to deploy and manage, without a large IT staff.
Cisco SG550XG-8F8T Kenya is designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco SG550XG-8F8T Kenya provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. Cisco SG550XG-8F8T Kenya Switch provides the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand.
Features
Affordable 10 Gigabit Ethernet
The Cisco SG550XG-8F8T Kenya breaks the barrier of 10 Gigabit Ethernet adoptions with exceptional affordability. 10 Gigabit Ethernet delivers 10 times the performance to your network to promote higher productivity and business efficiency.
Unmatched reliability and resiliency
 The Cisco SG550XG-8F8T Kenya offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols. Keep your network running so your business never slows down.
Advanced features
The Cisco SG550XG-8F8T Kenya includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.
Power over Ethernet
The Power over Ethernet Plus (PoE+) standard provides up to 30 watts of power per port. The Cisco SG550XG-8F8T Kenya also support 60W PoE on selected ports to power compact switches and high-power wireless access points.
Energy efficiency
Cisco SG550XG-8F8T Kenya packs a variety of energy-saving features, including energy-detect mode, cable-length detection, and Energy-Efficient Ethernet, provide an eco-friendly and cost-effective network solution without compromising performance.
Specifications
| Product Code | SG550XG-8F8T |
| Capacity in mpps (64-byte packets) | 238.08 |
| Switching capacity (Gbps) | 320 |
| Total system ports | 8x 10 GE copper + 8x 10 GE SFP+ plus 1x GE OOB management |
| Network ports | 8x 10 GE |
| Uplink ports | 8x 10 GE SFP+ |
| Packet buffer | 2 MB |
| Feature | Description |
| Capacity in mpps (64-byte packets) | 238.08 |
| Switching capacity (Gbps) | 320 |
| Total system ports | 8x 10 GE copper + 8x 10 GE SFP+ plus 1x GE OOB management |
| Network ports | 8x 10 GE |
| Uplink ports | 8x 10 GE SFP+ |
| Packet buffer | 2 MB |
| Unit dimensions (W x H x D) | 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in) |
| Layer 3 | |
| IPv4 routing |
|
| Wirespeed IPv6 static routing | Up to 1,792 routes and up to 256 IPv6 interfaces |
| Layer 3 interface | Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface |
| Security | |
| SSH | SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH versions 1 and 2 are supported |
| SSL | Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch |
| Quality of service | |
| Priority levels | 8 hardware queues |
| Scheduling | Strict priority and Weighted Round-Robin (WRR) |
| Class of service |
|
| Management | |
| Web user interface |
|
| Smart Network Application (SNA) | An innovative network-level monitoring and management tool embedded in Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network |
| SNMP | SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM) |
| RMON | Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
| IPv4 and IPv6 dual stack | Coexistence of both protocol stacks to ease migration |
| Firmware upgrade |
|
| Product specifications | |
| Console port | Cisco Standard RJ-45 console port |
| OOB management port | Dedicated Gigabit management port for out-of-band management on SG550XG and SX550X models |
| RPS | RPS connector |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better; fiber options (SMF and MMF); coaxial SFP+ |
| LEDs | System, master, fan, RPS, stack ID, link/speed per port |
| Flash | 256 MB |
| CPU |
|
| CPU memory | 512 MB |
| Power | 100 – 240V 47 – 63 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Storage temperature | -4° to 158°F (-20° to 70°C) |
| Operating humidity | 10% to 90%, relative, non-condensing |
| Storage humidity | 10% to 90%, relative, non-condensing |
