Description

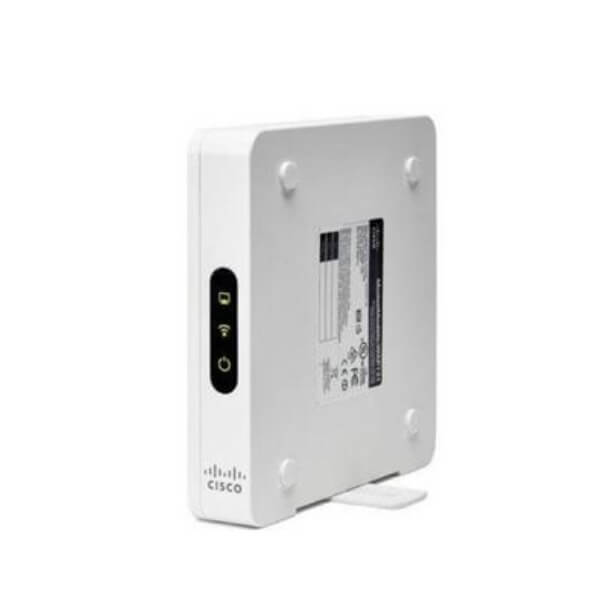

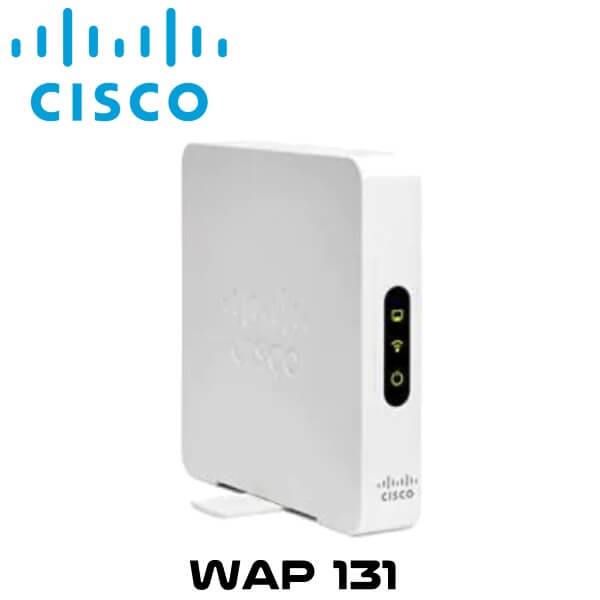

Cisco WAP131 Access Point Kenya
The Cisco WAP131 Kenya is Wireless-N Dual Radio Access Point provides a simple, cost-effective way to extend secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office. This flexible solution lets you connect dozens of employees, and can scale to accommodate additional users and changing business needs.
The Cisco WAP131 Kenya Wireless-N Dual Radio Access Point uses concurrent dual-band radios for improved coverage and user capacity. The Gigabit Ethernet port allows the AP to be powered by PoE switch to help reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features allow users to prioritize bandwidth-sensitive traffic for voice‑over-IP (VoIP) and video applications.
The Cisco WAP131 Wireless-N Dual Radio Access Point is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive desktop design with an integrated stand allows you to place the AP on your desk vertically or horizontally.
To enhance reliability and safeguard sensitive business information, the Cisco WAP131 Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.
Features
- Concurrent dual-band radio support for up to 300 Mbps per radio to maximize capacity and coverage.
- Single Gigabit Ethernet LAN interface enables a high-speed uplink to the wired network.
- Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
- Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.
- Desktop design with integrated stand, for easy access and placement.
- Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
- Power-saving sleep mode and port control features help maximize energy efficiency.
- Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
- Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
Specifications
| General | |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
| Cabling Type | Category 5e or better |
| Antennas | Internal antennas optimized for desktop installation with vertical orientation |
| LED Indicators | Power, WLAN, LAN |
| Operating System | Linux |
| Quality of Service (QoS) | Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS |
| System Memory |
|
| Minimum Requirements |
|
| INTERFACES | |
| Ports | 10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter |
| Power Supply | External 12 V, 1.5 A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE |
| Buttons | Reset button, Power (on/off), Push button |
| Cable Lock Slot | Slot for Kensington lock |
| LEDs | Power, Wireless, Ethernet |
| NETWORK | |
| VLAN Support | Yes |
| Number of VLANs | 1 management VLAN plus 8 VLANs for SSIDs |
| 802.1X Supplicant | Yes |
| SSID-to-VLAN Mapping | Yes |
| Auto Channel Selection | Yes |
| Spanning Tree | Yes |
| Load Balancing | Yes |
| IPv6 | IPv6 host support IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
| Layer 2 Features | 802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN |
| SECURITY | |
| WPA/WPA2 | Yes, including Enterprise authentication |
| Access Control | Yes, management access control list (ACL) plus MAC ACL |
| Secure Management | HTTPS |
| SSID | Yes |
| PERFORMANCE | |
| Wireless Throughput | Up to 300 Mb/s data rate (real-world throughput will vary) |
| Recommended User Support | Up to 32 connective users, 16 active users per radio |
| CONFIGURATION | |
| Web User Interface | Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
| MANAGEMENT | |
| Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
| Remote Management | Yes |
| Event Logging | Local, remote syslog, email alerts |
| Network Diagnostics | Logging and packet capture |
| Firmware Upgrade | Firmware upgradable through web browser, imported/exported configuration file |
| Dynamic Host Configuration Protocol (DHCP) | DHCP client |
| IPv6 Host | Yes |
| WIRELESS | |
| Frequency | Dual concurrent radios (2.4 and 5 GHz) |
| Radio and Modulation Type | Dual radio, orthogonal frequency division multiplexing (OFDM) |
| WLAN | 802.11n 2×2 multiple-input multiple-output (MIMO) with 2 spatial streams 20 and 40 MHz for 802.11n PHY data rate up to 600 Mb/s |
| Data Rates Supported |
|
| CHANNELS | |
| A Regulatory Domain |
|
| E Regulatory Domain |
|
| NON-OVERLAPPING CHANNELS | |
| Maximum Channels |
|
| WIRELESS ISOLATION | |
| Wireless isolation between clients | Internal |
| Antennas | Internal fixed PiFA antenna |
| Antenna Gain In dBi |
|
| Wireless Distribution System (WDS) | Yes802.11i |
| Security | Yes |
| Multiple SSIDs | 8 |
| WIRELESS | |
| VLAN Map | Yes |
| WLAN | Yes |
| Wi-Fi Multimedia (WMM) | Yes, with unscheduled automatic power save |
| OPERATING MODES | |
| Access point | Access Point mode, WDS Bridging, Workgroup Bridge mode |
| ENVIRONMENTAL | |
| Power Options |
|
| Compliance | Safety:
|
| Radio approvals | FCC Part 15.247, 15.407 RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) AS/NZS 4268.2003 (Australia and New Zealand) EMI and susceptibility (Class B): |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 85% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| PHYSICAL | |
| Mounting Options | Desktop |
| Dimensions | 6.7 x 6.7 x 1.4″ / 17.0 x 17.0 x 3.6 cm |
| Weight | 0.89 lb / 0.40 kg |
