Cisco WAP351 Kenya



Cisco WAP351 Kenya

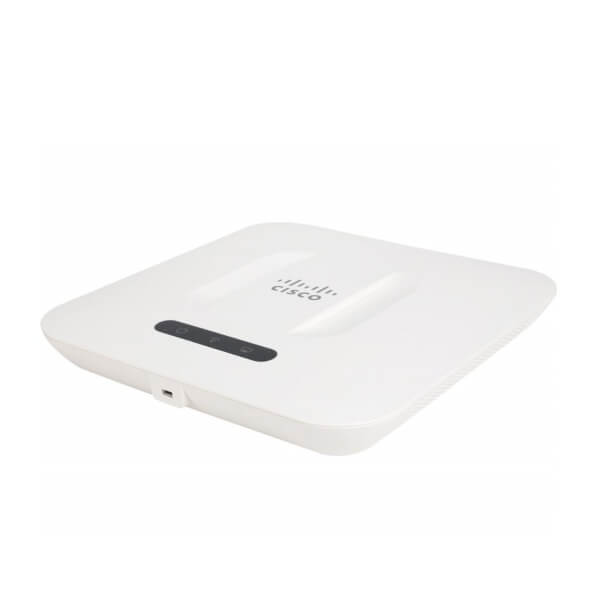

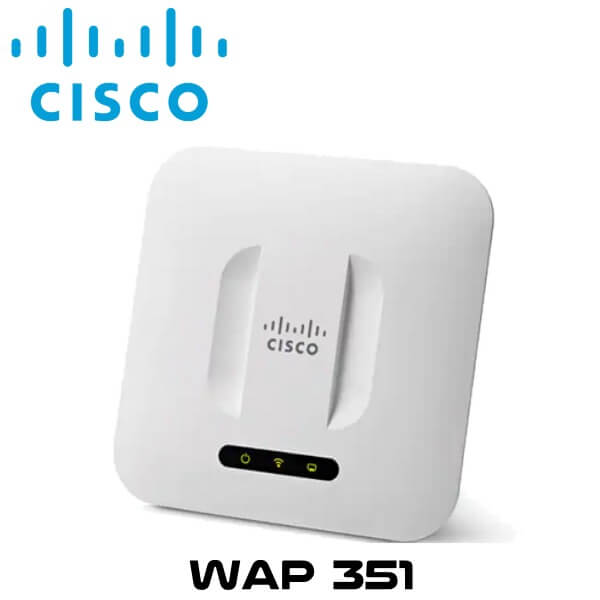

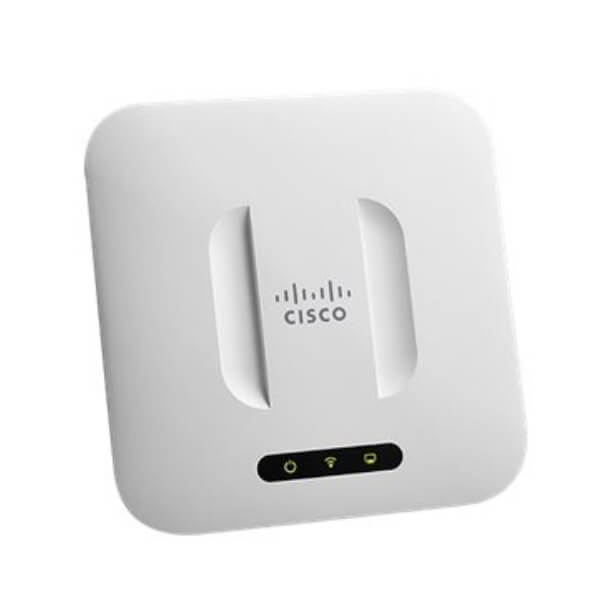

Cisco WAP351 Kenya is a Dual Radio Access Point providing flexible solution allowing users to connect dozens of employees, and can scale to accommodate additional users and changing business needs.

Description

Cisco WAP351 Dual Radio Access Point Kenya

Cisco WAP351 Kenya is a Dual Radio Access Point providing flexible solution allowing users to connect dozens of employees, and can scale to accommodate additional users and changing business needs. The Cisco WAP351 Kenya Dual Radio Access Point uses concurrent dual-band radios for improved coverage and user capacity. Featuring 5-port Gigabit Ethernet switch this Cisco WiFi Kenya allows more devices to be connected to the access point (AP) and allows the AP to be powered by the backbone switch, also helping reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice-over-IP (VoIP) and video applications.

To provide secure guest access to visitors and other users, the Cisco WAP351 Dual Radio Access Point supports a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos. Cisco WAP351 Wireless Access Point is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options enables the access points to smoothly blend into any small business environment. To enhance reliability and safeguard sensitive business information, the Cisco WAP351 Kenya supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.

Designed to scale smoothly as your organization grows, this Cisco WiFi Kenya feature controller-less Single Point Setup that simplifies the deployment of multiple access points without additional hardware. With the Cisco WAP351 Wireless-N Dual Radio Access Point, you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.

Features

  • Concurrent dual-band radio supports up to 300 Mbps per radio to maximize capacity and coverage.
  • Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points – without requiring additional hardware.
  • Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
  • Captive portal enables highly secure, customized guest access with multiple rights and roles.
  • Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.
  • 5- Port Gigabit Ethernet LAN Switch supports both PD and PSE, allowing IP devices and the AP to be powered by a backbone switch.
  • Sleek design with multiple internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop.
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
  • Power-saving sleep mode and port control features help maximize energy efficiency.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.

Specifications

Specifications Description
Standards IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type Category 5e or better
Antennas Internal antennas optimized for installation on a wall or ceiling
LED indicators Power, WLAN, LAN
Operating system Linux
Physical Interfaces

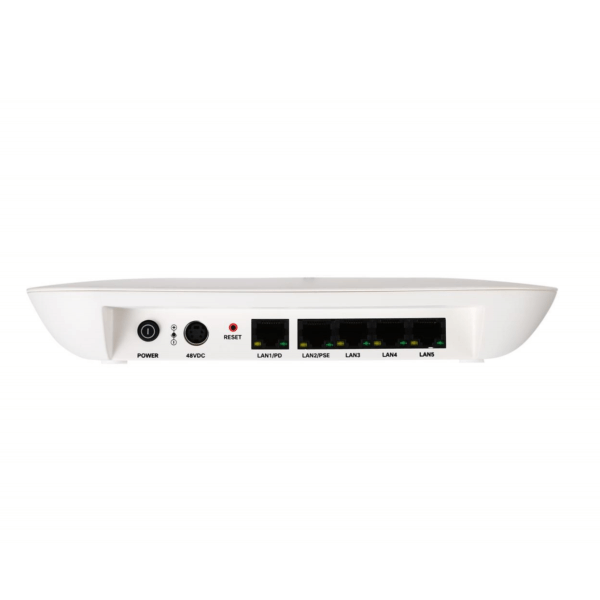

Ports 5 10/100/1000 Ethernet, with support for 802.3af /at PoE, Power Port for AC adapter (not included)
Power Supply 802.3af/at PoE and External 48V/1.25A DC power adapter (not included)
Buttons Reset button, Power On/Off
Lock slot Slot for Kensington lock
Physical Specifications
Physical dimensions (W x D x H) 9.055 x 9.055 x 1.575 in. (230 x 230 x 40 mm)
Weight 1.34 lb or 0.607 kg
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 16 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto channel selection Yes
Spanning Tree Yes
Load balancing Yes
IPv6 Yes

IPv6 host support

IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.

Layer 2 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
Security
WPA/WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue-access-point detection Yes
Mounting and Physical Security

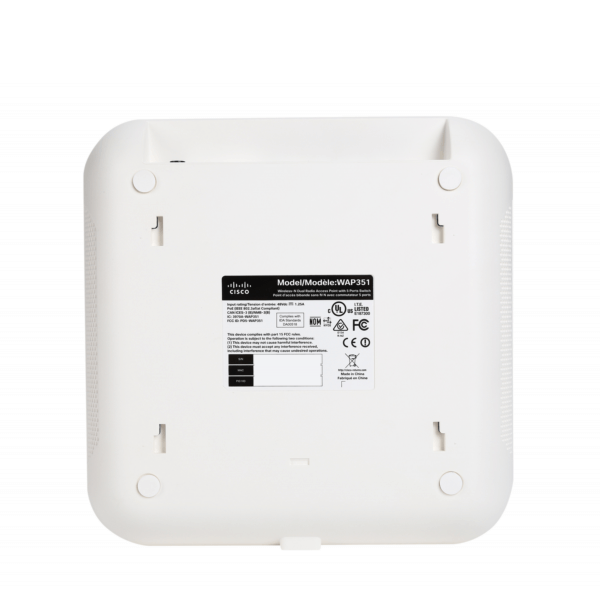

Multiple mounting options Mounting bracket included for easy ceiling or wall mounting
Physical security lock Kensington lock slot
Quality of Service
Quality of service (QoS) Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS
Performance
Wireless throughput Up to 300-Mbps data rate (real-world throughput will vary)
Recommended user support 32 active clients/users per radio
Multiple-Access Point Management
Single Point Setup Yes
Number of access points per cluster 8
Active clients per cluster 240
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes
Wireless
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type Dual radio, orthogonal frequency division multiplexing (OFDM)
WLAN
  • 802.11n
  • 2×3 multiple-input multiple-output (MIMO) with 2 spatial streams on 2.4 GHz
  • 2×2 multiple-input multiple-output (MIMO) with 2 spatial streams on 5 GHz
  • 20, and 40 MHz for 802.11n
  • PHY data rate up to 600 Mbps
Data rates supported
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates
Frequency band and 20-MHz operating channels A Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels
E Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.745 to 5.8 0 5 GHz; 4 channels
Nonoverlapping channels 2.4 GHz

  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz: 3

5 GHz

  • 802.11a
    • 20 MHz : 9
  • 802.11n
    • 20 MHz : 9
    • 40 MHz : 4
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas Internal Fixed PiFA Antenna
Antenna gain in dBi
  • Maximum antenna gain of 5.3 dBi on 2.4 GHz
  • Maximum antenna gain of 5.1 dBi on 5 GHz
Wireless distribution system (WDS) Yes
Roaming 802.11i only
Multiple SSIDs 16
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
Operating Modes
Access point Access Point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options
  • IEEE 802.3af/af Ethernet switch
  • Cisco Power Injector – SB-PWR-INJ2-xx
  • AC Adapter – SB-PWR-48V-xx (not included)
  • PoE power:
  • Peak PoE power : 18W
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature -20° to 70°C (-4° to 158°F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
System memory
  • 128-MB RAM
  • 128-MB Flash
Package Contents
  • Cisco WAP351 Wireless-N Dual Radio Access Point
  • Ceiling-/wall-mounting kit
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable
