Description

 D-Link DAP-2230 Kenya

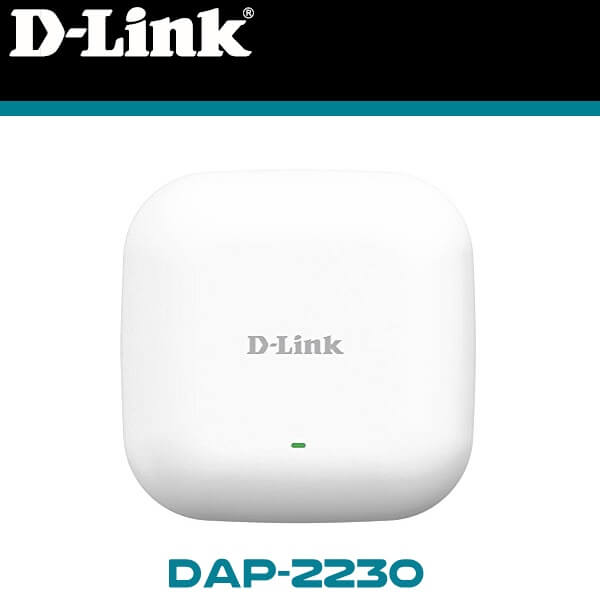

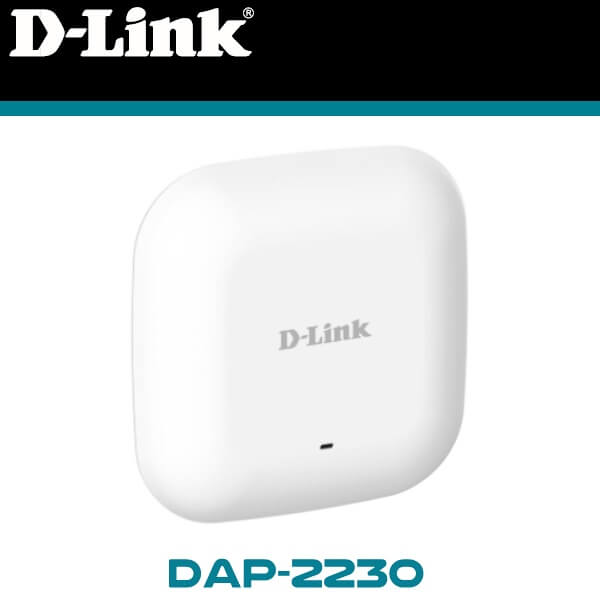

The D-Link DAP-2230 Access Point, is a wireless N PoE designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options.D-Link DAP-2230 Kenya delivers reliable, high-speed wireless performance with maximum wireless signal rates of up to 300 Mbps1.This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. Multiple operating modes, network management tools, and security features give network administrators a wide range of choices for deploying the device, allowing for the addition of wireless network-enabled devices. The D-Link DAP-2230 Access point boasts of a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power. Moreover, DAP-2230 supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.

Key Features

• Performance without Compromise
  • The D-Link DAP-2230 Access Point delivers reliable, high-speed wireless performance with maximum wireless signal rates of up to 300 Mbps1.This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the D-Link DAP-2230 Kenya to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2230’s web GUI using a drop-down menu option to select customized priority rules. Additionally, the DAP-2230 supports load balancing to ensure maximum performance by limiting the number of users per access point.
• Robust Security
  • D-Link DAP-2230 Access Point supports both Personal and Enterprise versions with support for RADIUS server and a built-in internal RADIUS server allowing users to create their accounts within the device itself. The access points ensure MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to further protect your wireless network. The DAP-2230 Access point is equipped with support for up to eight VLANs per band for implementing multiple SSIDs to further help segment users on the network. Also included is a wireless client isolation mechanism, which limits direct client-to-client communication. DAP-2230 supports Network Access Protection (NAP), a feature of Windows Server 2008, allowing network administrators to define multiple levels of network access based on individual client’s requirements.
• Versatile Access Point Functionality
  • The D-Link DAP-2230 Access Point allows network administrators to deploy a highly manageable and extremely robust wireless network with optimal wireless coverage. The DAP-2230 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 Access point has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
• Multiple Operation Modes
  • The D-Link DAP-2230 Access point can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting), and Wireless Client. With WDS support, network administrators can set up multiple DAP-2230s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The DAP-2230 also features advanced features such as load balancing and redundancy, for fail-safe wireless connectivity. The DAP-2230 gives you return on investment through its configuration capabilities
• Network Management
  •  The D-Link Central WiFiManager provides network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. Also the DAP-2230 Access point has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power. With its high output power design, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2230 provides small to medium business and enterprise environments with a business-class solution for deploying a wireless network
• Flexible Deployment

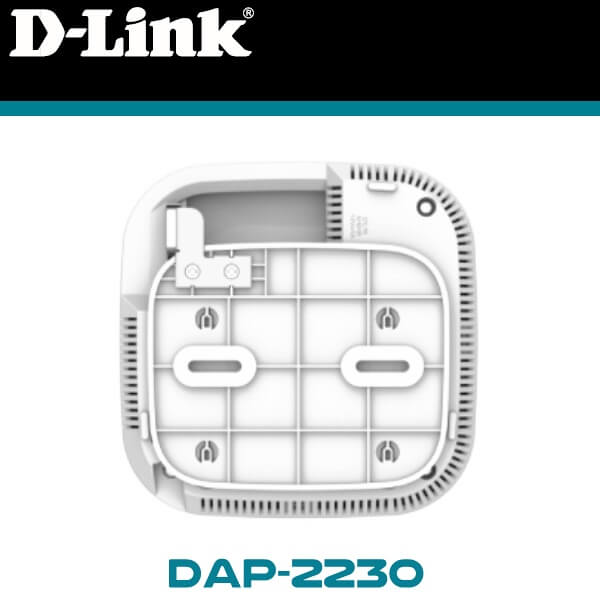

  • TheDAP-2230 Access point features a super compact design, and can be ceiling mounted, wall mounted or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.

Technical Specifications

General

Device Interfaces
• 802.11 b/g/n wireless
• 10/100 Mbps PoE LAN port (supports 802.3af PoE)

LED
• Power/Status

Standards
• IEEE 802.11b/g/n
• IEEE 802.3u/ab/af

Wireless Frequency Range
• 2.4 GHz band: 2.4 GHz to 2.4835 GHz

Antennas
• Two internal 3 dBi for 2.4 GHz

Maximum Output Power
• 20 dbm for 2.4GHz as per EU / CE Starndards

Functionality

Security
• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)

Network Management
• Telnet
• Secure Telnet (SSH)
• HTTP
• Secure HTTP (HTTPS)
• Traffic control
• SNMP
• AP Array
• D-Link Central WiFiManager

Physical and Environmental

Dimensions
• 129 x 129 x 29 mm

Weight
• 101.4 grams

Operating Voltage
• 12 V DC 1 A  or 802.3af PoE

Maximum Power Consumption
•  5.76 watts

Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 149 °F (-20 to 65 °C)

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications
• FCC
• IC
• CE
• Wi-Fi
• UL
