Dinstar DAG1000-8S Kenya



Dinstar DAG1000-8S Kenya

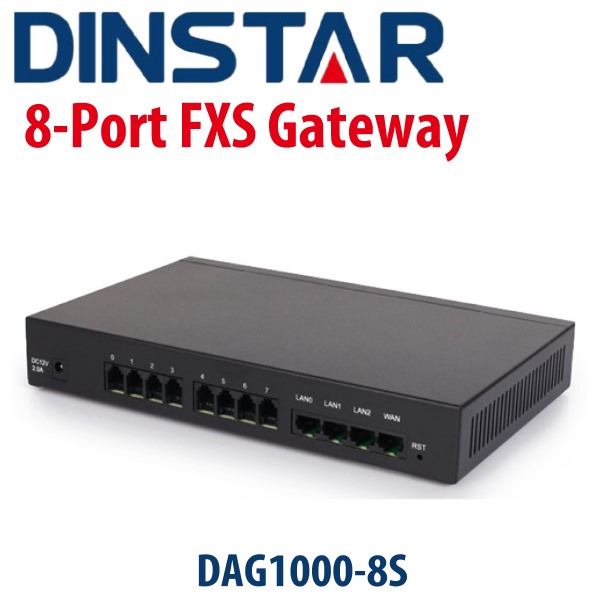

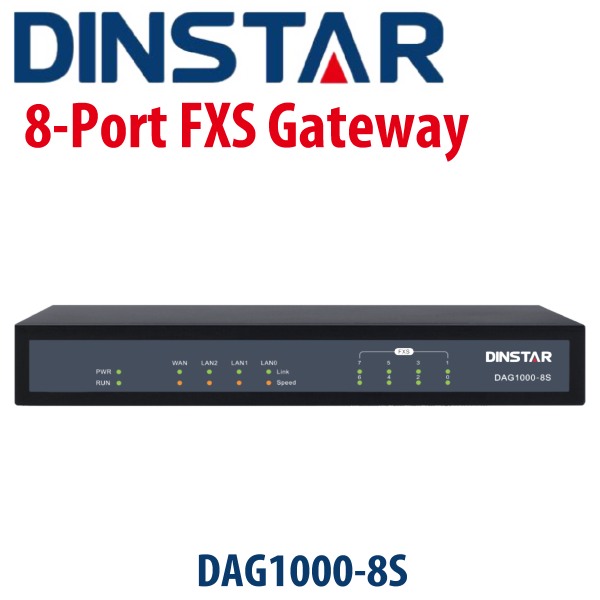

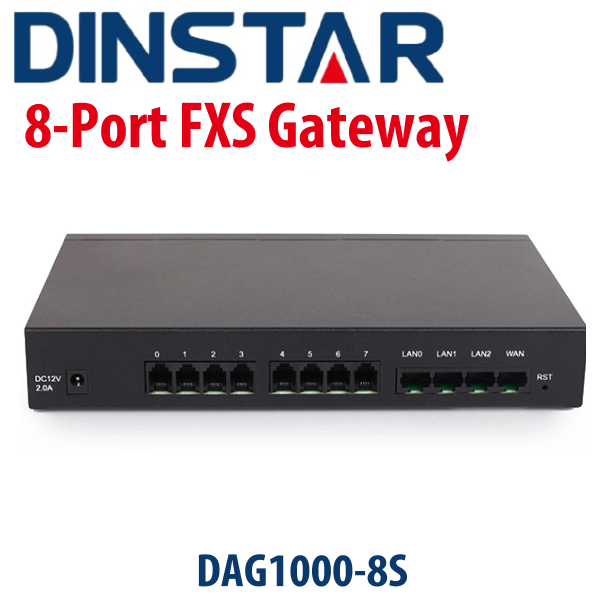

Dinstar DAG1000-8S telephone adapter Kenya features 8 FXS ports, fax over IP and flexible dial plans. It provides seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems.

Description

Dinstar DAG1000-8S telephone adapter Kenya

The Dinstar DAG1000-8S telephone adapter Kenya features 8 FXS ports, fax over IP and flexible dial plans offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services. These powerful features and good voice quality make the device ideal for personal use and suitable for various application environments such as SOHO and small enterprises. Moreover, with automatic provisioning and centralized management system, the device is easy for maintenance and deployment.

Key Features

Cost-Effective VoIP Gateway

  • 8 FXS ports, 1 WAN, 3 LAN
  • Support SIP, IMS
  • 38 Fax
  • Flexible routing & Dial plan
  • Interoperable with leading softswitches, IP PBXs and SIP servers

High Stability and Reliability

  • Embedded Operation System
  • Market-proven hardware design
  • Carrier-grade reliability
  • Main/Secondary SIP server failover
  • TLS/SRTP Security

Easy Management

  • Intuitive Web interface including Quick installation guide
  • Support SNMP &TR-069
  • Automated provisioning
  • Dinstar Cloud Management System
  • Configuration Backup and Restore
  • Debug tools in web interface

Technical Specifications

Physical Interfaces

  • Capacity 8 FXS,
  • RJ11 Ethernet Interfaces:
  • 1* WAN, 10/100Mbps, RJ-45
  • 3* LAN, 10/100Mbps, RJ-45 Console:
  • N/A

Voice Capabilities & Fax

  • 711A/U law, G.723.1,

G.729 A/B, G.726, AMR, iLBC

  • Silence Suppression
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation (G.168), with up to 128ms
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • 38/Pass-through
  • High speed fax up to 14.4kbps
  • Modem/POS DTMF mode: Signal/RFC2833/INBAND
  • VLAN 802.1P/802.1Q (voice/data/management VLANs)

FXS

  • FXS Connector: RJ11
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK CLI Presentation
  • Max Cable Length: 3km
  • Reversed Polarity
  • Programmable Call Progress Tone

VoIP

  • SIP v2.0 (UDP/TCP), RFC3261
  • SDP, RTP(RFC2833),
  • RFC3262, 3263,3264,3265,3515,2976,3311
  • ETC (3GPP TS24.629), 3891,3892
  • SIP TLS/ SRTP RTP/RTCP,
  • RFC2198, 1889
  • RFC4028 Session Timer
  • RFC3266 IPv6 in SDP RFC2806 TEL URI RFC3581 NAT, report
  • Primary/backup SIP server
  • Outbound Proxy
  • DNS SRV/ A Query/NATPR Query
  • SIP Trunk
  • Early Media/Early Answer NAT: STUN, Static/Dynamic NAT

Software Features

  • Hunting Group
  • Web ACL
  • Telnet ACL
  • Action URL
  • PPPoE/IPv4/IPv6
  • Digitmap Routing Rules based Prefixes
  • Caller/Called Number Manipulation

Environmental

  • 100-240VAC, 50-60 Hz@DC12V 2A
  • Power Consumption:18W(Typical)
  • Operating Temperature:0 ℃ ~ 45 ℃
  • Storage Temperature: -20 ℃ ~80 ℃
  • Humidity:10%-90% Non-Condensing
  • Dimensions(W/D/H): 240*154*37mm
  • Unit Weight: 1kg
  • Compliance: CE, FCC

 Maintenance

  • SNMP V1/V2/V3
  • TR069
  • Auto Provisioning (HTTP/FTP/TFTP)
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via Web
  • CDR
  • Syslog
  • Ping, Tracert Test
  • Network Capture
  • Outward Test(GR909)
  • NTP/Daylight Saving Time
  • IVR Local Maintenance
  • Cloud-based Management
