Description

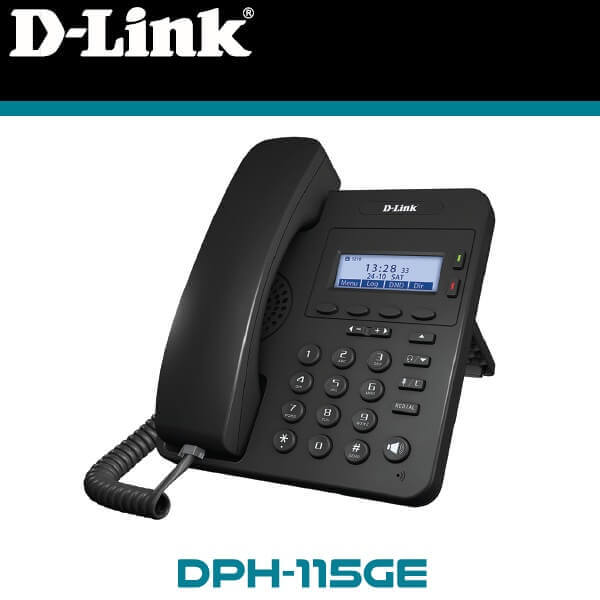

Dlink DPH115GE IP Phones Kenya

The Dlink DPH115GE Kenya features a sophisticated elegant design IP Phone, with high performance offering versatile features and specifications providing VoIP communication solutions for different environment requirements. The Dlink DPH115GE IP Phones are designed for general office users (from VSE, SOHO to SMB) in VoIP communication.  Dlink DPH115GE IP Phones Kenya can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch (es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Enjoy easy connection to your PC as Dlink DPH-115 IP Phones Kenya can be connected instead of LAN directly. Moreover, Dlink DPH115GE IP phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. Dlink DPH115GE IP phone boasts of LCD display on the panel that provides direct visual interface for users. Besides, user can use keypad/LCD or Web browser for quick IP phone configuration without need of an IT expertise.

Key Features

• Superior Sound
  • The Dlink DPH115GE IP Phones Kenya is a speakerphone IP phone with Echo Cancellation, CNG, VAD and Dynamic Jitter Buffer features for excellent sound quality
• Extensive Phone Features
  • Experience complete phone functions features with Dlink DPH115GE IP Phones Kenya. Including; Call Transfer, Forward and Hold, 3-Way Conference, Speed Dial/Phone Book, Caller ID
• Easy Configuration
  • The Dlink DPH115GE IP Phones Kenya features web-based configuration via phone and computer, bringing additional convenience and increasing productivity
• LCD display
  • Dlink DPH-115 IPGE phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. LCD display on the panel provides direct visual interface with user. Besides, user can use keypad/LCD or Web browser for quick IP phone configuration.

Technical Specifications

Keypad Features

• 4 Soft keys for doing more functions
• 9 DSS keys
• 4 Navigator Keys and 1 ok key for navigating in configuration
• Hold
• Call forward
• Three-party
• A conference
• MWI
• Headset
• Redial (Redial and the entry to access call history; finish dialing and call the number)
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol – / Vol +

Advanced Features

• 9 programmable keys
• XML Phone Book search and input & output
• Enterprise phone book (800 entries)
• Personal Phonebook (300 entries)
• LDAP phone book

IP PBX System Integration

• Busy lamp field (BLF), BLF list
• Bridged line appearance (BLA)
• DND & Forward synchronization
• Intercom, Paging, Music on hold
• Call pickup, Dial Plan, Call recording Anonymous call,
• Anonymous call rejection
• Network conference, Distinctive ring tone

 Codes and Voice Features

• Wideband Codec : G.722
• Narrowband codec : G.711µ/A, G.726, G.729AB,iLBC
• VAD, CNG, AEC, AGC, Full-duplex

Security

• VLAN QoS (802.1pq), SRTP
• Transport Layer Security (TLS)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Encryption for configuration file
• Phone lock for personal privacy protection
• Admin/User 2
• Level configuration mode, LLDP, CDP
• L2TP VPN tunneling protocol added

Management

• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Configuration: browser/ phone/auto-provision
• Trace package and system log export

Optional Feature

• TR069，IPv6，HTTPS web management，1x OPEN VPN

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SIP connection: Proxy mode & Peering Points mode;
• SRTP voice encryption(RFC3711)
• Redundant server support
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info, Auto
• HTTP Web Management
• IP Assignment: Static/DHCP/PPPoE
• Bridge/Router mode for PC port
• TFTP/DHCP/PPPoE client
• Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server

Physical Properties

• Power adapter
• AC 100~240V input and DC 5V/1A output
• POE, IEEE 802.3af, class 0
• Power consumption : 1.5W
• Net weight : 0.62kg
• Dimension : 180x157x33mm
• Operating humidity : 10~95%
• Storage temperature : up to 60°C
