Description

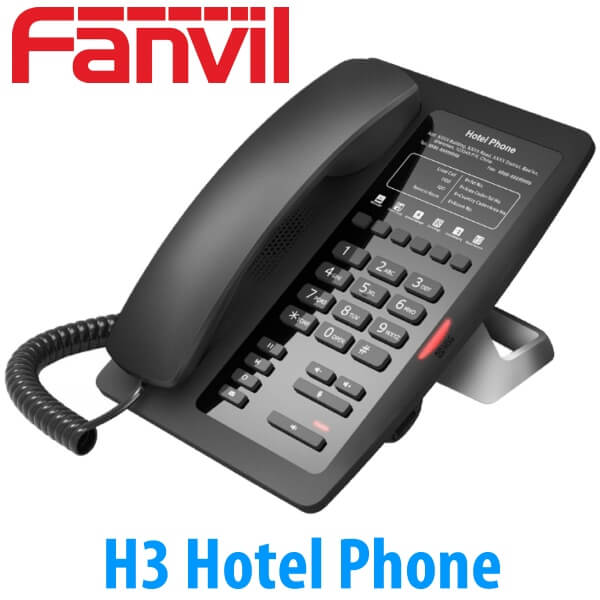

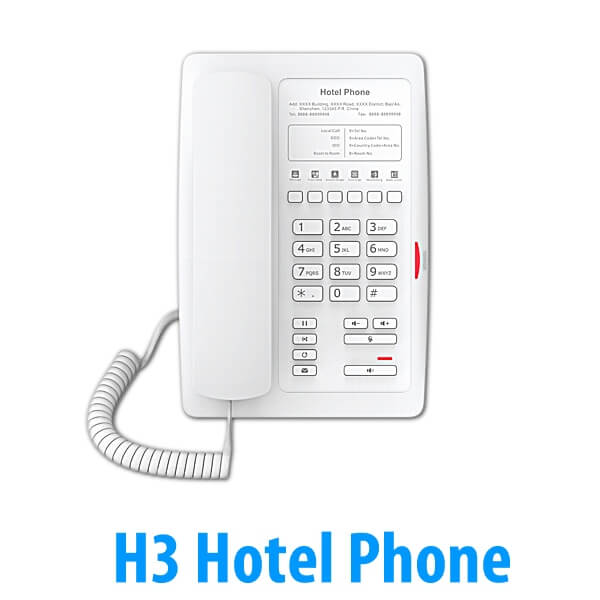

Fanvil H3 Hotel VoIP Phone Nairobi, Kenya

The Fanvil H-Series H3 in Kenya is newest series of phones designed for hotels. Its stylish, contemporary appearance, excellent voice quality, and powerful functionality, along with matching integrated communications platforms can replace traditional phones and can become a new generation of intelligent terminal equipment. The H-Series hotel IP phone will look great in most hotel rooms and will support most application requirements. In addition, it has excellent call quality, resulting in crystal clear conversations.

Fanvil H3 Hotel Phone Supplier Kenya

The Fanvil H3 in Kenya is an IP hotel phone with HD voice and 6 programmable soft keys. The H3 has full-duplex, hands-free speakerphone with echo cancellation, and many more standard phone features such as call transfer, call holding and call waiting. This product also comes with a power supply included. The Fanvil H3 is compatible with major communication platforms, is easy to use and has an elegant appearance. When using the Fanvil H3, you can be rest assured that your guests will have a great communication experience during their stay. The H3 accomplished powerful telephony features by combining the communications platform and features such as call transfer, hotline, voice mail, call hold, and more.

The H3 IP phones support 6 programmable keys. They can be defined according to the hotel’s needs. For example, they could be programmed with an equipment service hotline (housekeeping, ticketing, switchboard, food, and beverage, etc.) or hotel special features (alarm clock, voice mail, etc.).In addition, it has a USB port to charge your mobile phone. H3, called ‘the device’ hereafter, supports two power supply modes, power supply from the external power adapter, and supports 802.3af Class 2 Power over Ethernet (PoE) complied switch. PoE power supply saves the space and cost of providing the device an additional power outlet. With a PoE switch, the device can be powered through a single Ethernet cable which is also used for data transmission.

Fanvil H3 Hotelphone Nairobi

By attaching the UPS system to the PoE switch, the device can keep working at power outage just like the traditional PSTN telephone which is powered by the telephone line. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

Fanvil H3 Key Features :

1 SIP Line
Adaptive 10/100mbps Ethernet port, PoE Enabled
USB port for mobile phone charging
Handset / Hands-free mode
6 Intelligent DSS Keys – Speed Dial keys
4 Function keys for Hold, Call Transfer, Redial & MWI
12 Standard Phone Digits keys
3 Volume Control keys, Lower/Increase/Mute (Microphone)
Hands-free key
Call logs with missed calls/ incoming calls/outgoing calls.
Max support 600 records(web)
Dial without registration
LED light
Action URL / Active URI
Web Dial
1 Year Warranty

Fanvil H3 IP Phone Features :

Elegant Design :

Having been designed for hotels, the Fanvil H3 IP Phone boasts of a stylish appearance, primed to achieve the focal point of any room. It is packed with standard features such as excellent voice quality and a matching integrated communication platform which makes it a new generation of hotel intelligent communication device. Even better, the premium Fanvil H3 IP Phone comes in two available colors ; white and black, giving you the freedom to choose one that you prefer best.

6 Programmable Soft Keys for Service Hotline :

The Fanvil H3 IP Phone is equipped with 6 programmable soft keys to give you an easy interface when carrying out essential and urgent functions in the hotel industry such as service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).

Supports SIP Hotspot :

Fanvil H3 IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call. This feature comes in handy during busy times, ensuring that no client is left unattended.

USB Charging Port :

The Fanvil H3 IP Phone delivers an easy plug and play operation, thanks to a built-in USB port which allows for an easy connectivity to power sources when a recharge is needed.

HD Audio :

The Fanvil H3 IP Phone has a full-duplex, hands-free speakerphone with echo cancellation to filter out background noises when in busy and noisy environment. This results in crystal clear conversations, ensuring that you can hear and be heard clearly.

Hands- Free Key :

Enjoy unlimited mobility using the Fanvil H3 IP Phone which is equipped with a hands- free key. This feature enables you to multitask within the office. For instance, one can make notes while on a phone call. This not only saves time, but also boosts the productivity of workers in the office.

Supports Power over Ethernet (PoE) :

The Fanvil H3 IP Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil H3 IP Phone can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your Fanvil H3 IP Phone to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Fanvil H3 IP Phone is based on SIP v2 (RFC 3261) and (RFC 3262) works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.

Automated – Provisioning :

The technologically advanced Fanvil H3 IP Phone has the ability to deploy information technology or telecommunications service by using embedded pre-deﬁned procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

High Interoperability :

The magnificent Fanvil H3 IP Phone has been built to enable excellent compatibility with most of the world’s leading platforms such as 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Pocket – Friendly :

The technologically advanced Fanvil H3 IP Phone is configured for reduced energy consumption and lower costs courtesy of the Power-over-Ethernet Class 1 design complete with ‘sleep mode.’ Now you can make or receive your much needed phone calls without incurring extra power costs. The setup further gives you the freedom to select only what you need for a perfect fit based on the already existing office fittings. It is possible to only purchase the media wall and infuse into the office furniture together with other components already available in your office.

Wall – Mountable, Simple & Space – Saving :

The Fanvil H3 IP Phone is a wall-mounted IP phone which combines the advantages of a neat, compact appearance with the most commonly used functions of an IP phone. It’s a good choice for hospitals, hotels and general business functions.

Call Features

Call Transfer : This advanced feature of the Fanvil H3 IP Phone allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Wireless Router.
Call Waiting : You can hear another incoming call when you are already on an active phone call (beep). With the Fanvil H3 IP Hotel Phone, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.
Call Holding : You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Fanvil H3 IP Phone.

Fanvil H3 IP Phone Specifications :

Generic

1 SIP Line
POE Enabled
Handset / Hands-free mode
Intelligent DSS Keys (speed dial key)
Desktop
Optional External Power Supply

Call Features

Call out / Answer
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Call Transfer (Attended/Unattended)
Speed dial
Intercom
Redial
Voice Message (on server)
Hot Line
Hot desking

Phone Features

Call logs with missed calls/ incoming calls/ outgoing calls
Max support 600 records(web)
Dial without registration
LED light
Programmable DSS keys
Custom LCD display text and logo(Only support for H5)
Action URL / Active URI
Web dial

Audio

Audio CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF(RFC2833) / SIP INFO

Networking

10/100Mbps Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet-dump
Configuration Export / Import
Firmware Upgrade
Syslog

Physical Specifications

Keypad: 26 keys, including:
– 6 DSS Key
– 4 Function keys (Hold, Call Transfer, Redial, MWI)
– 12 Standard Phone Digits keys
– 3 Volume Control keys, Lower/Increase/Mute (Microphone)
– 1 Hands-free
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
RJ9 Port x1: Handset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB Port x1: Standard A, Only used for mobile phone charging
DC Power Input: 5V / 1A
Power Consumption: Idle 1.8W~2.5W, Peak 3W~4.5W
Working Temperature: 0~40°C
Working Humidity: 10~95%
Installation: Desktop Stand
Color: Black/White
Device Dimensions: 151.7×193.2×131.7mm
Gift Box Dimensions: 225x210x125mm
Outer CTN Dimensions: 515x435x245mm (8 PCS)
