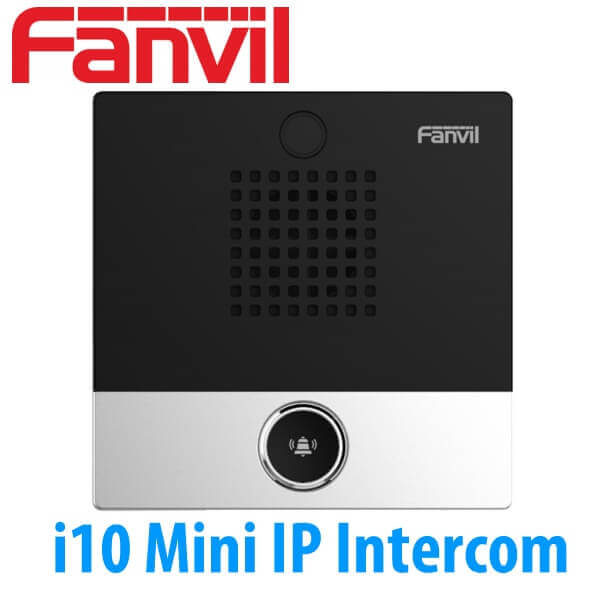

Fanvil i10 SIP Mini Intercom Kenya

The Fanvil i10 in Nairobi is designed for indoor settings. It comes with an IP54 – rated waterproof and dustproof coating which protects it from any mechanical damages even when used in tough conditions such as moist and dusty environments. It is a wall – mountable device which supports easy wall mounting and 86mm wall socket installation. It combines security, audio/video intercom, and broadcasting functionalities and offers a qualified communication solution for users.

Add to quote

Description

Fanvil i10 SIP Mini Intercom Kenya

The Fanvil i10 in Nairobi, Kenya is a highly compact, network-connected intercom for reliable communications at entrances. Designed for indoor installation, i10 measures less than 3.5″ square. The Fanvil i10 SIP Mini Intercom is applicable in many scenarios, including offices, hotels, apartments, schools, wellness centers, and many more. The intercom has a single, programmable button for quick dialing an extension. An integrated 1W speaker and microphone provides HD wideband audio for crystal clear sounds. Acoustic echo cancellation further minimizes any background noises. Fanvil i10 is an IP intercom that supports the open SIP protocol, enabling you to easily integrate it with compatible VoIP systems or services. Configure and manage i10 centrally from a workstation without much struggle.

Fanvil I10 Nairobi

The Fanvil IP desk phone can be connected with the system to allow for easy unlocking of the door from the phone. The Fanvil i10 Mini IP Intercom is built in compliance with the IP54 durability standard against water and dust ingress. Power i10 supports PoE. It delivers crystal clear sounds courtesy of HD audio with built-in 1W speaker, Opus, and Acoustic Echo Canceller (AEC). What’s more, the Fanvil i10/i10V can be connected with the original office access control through the output interface, so as to enable you to open the door from a distance by VoIP phones, cellphones or even the i10D unlock button after the visitor calls with just one single press on i10/i10V.

Featuring with the IP54 standard and the wide temperature range from -20℃ to 50℃, the Fanvil i10 series can be used in different kinds of indoor environments. It is faster and easier to configure and manage the i10 series by batch deployment on Fanvil Device Management System. All a user requires to do is to simply make one press to make a video call. A Built-in 1megapixel HD camera with 720P resolution in i10V ensures the high-definition pictures during video calls.

Fanvil i10 Key Features:

IP54 waterproof and dustproof
-20 °C to 50 °C wide range temperature adaptability
Compatible with engineering 86 box size, easy installation and configuration
Built-in 1W speaker and Acoustic Echo Canceller (AEC)
Built-in 1short circuit input/output interface
Functionality including security, intercom, and broadcasting
Built-in HD camera and with backlight compensation function (for i10V).
Online management and upgrade
High compatibility – Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya

HD Audio :

The Fanvil i10 SIP Mini Audio Intercom comes with an integrated 1W speaker, Opus, and Acoustic Echo Canceller (AEC) which delivers crystal clear voices devoid of extraneous noises.

Multi – Platform Compatibility :

The Fanvil i10 SIP Mini Audio Intercom is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Waterproof and Dustproof Coating :

Featuring with IP54 standard and the wide temperature range from -20℃ to 50℃, the Fanvil i10 series can be applied in different kinds of indoor environment. It is therefore a highly durable device that can withstand harsh weather conditions such as rain, hence saving you from frequent repair costs due to mechanical damages.

Easy Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System enables a user to simply configure and manage the Fanvil i10 SIP Mini Intercom without wasting much time.

2 SIP Lines :

The Fanvil i10 SIP Mini Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet (PoE) :

The Fanvil i10 SIP Mini Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i10 SIP Mini Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i10 SIP Mini Intercom is based on SIP v2 (RFC 3261) and (RFC 3262) works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.

Wall – Mountable, Simple & Space – Saving :

The Fanvil i10 SIP Mini Intercom is a wall-mountable device which allows for an 86mm wall socket installation and combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions.

Fanvil i10 SIP Mini Intercom Kenya Technical Specifications:

General

2 SIP Lines
Auto answer
Intercom function

Intercom Function

Dynamic multicast function
Support ONVIF
Support customised DSS keys
Network Time Synchronisation
Action URL / Active URI

Video (i10V)

Sensor: 1/4? color CMOS
Pixel: 1 million
Video coding: H.264
Resolution: 720P
Viewing angle: 90?
Minimum illumination: 0.1Lux

Audio

Wideband ADC/DAC 16KHz sampling
Narrowband Codec: G.711a/u, G.729AB, AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band ? DTMF-Relay(RFC2833) / SIP INFO
