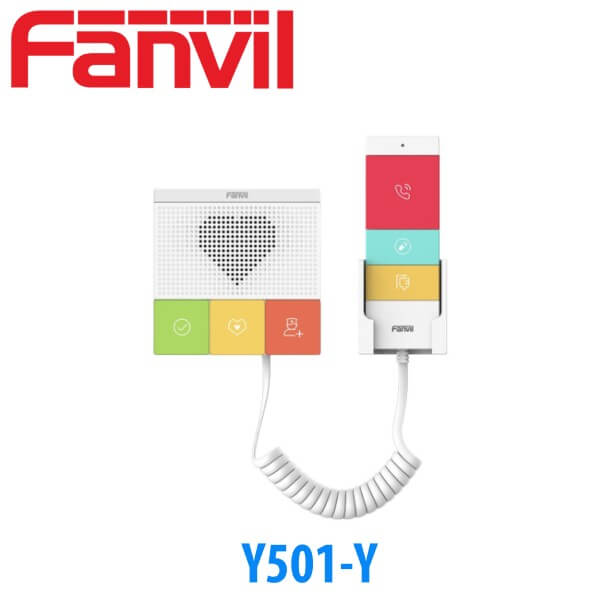

Fanvil Y501-Y Kenya



Fanvil Y501-Y Kenya

The Fanvil Y501-Y Kenya SIP healthcare intercoms offer cutting-edge solutions for various healthcare settings, including home-based care, nursing homes, and indoor environments where reliable communication and security are vital.

Description

Fanvil Y501-Y SIP Intercom Kenya

The Fanvil Y501-Y Kenya SIP healthcare intercoms offer cutting-edge solutions for various healthcare settings, including home-based care, nursing homes, and indoor environments where reliable communication and security are vital. These intercom systems enhance emergency communication, security, and broadcasting, improving care and safety standards.

Featuring high-definition audio, support for up to 2 SIP accounts, and detachable DSS keys for customizable functionality, the Fanvil Y501-Y Kenya ensures precision and efficiency. With an IP54 waterproof and dustproof rating, it guarantees durability in demanding conditions.

The Y501-Y series includes built-in 2.4G & 5G Wi-Fi for flexible connectivity, enabling seamless integration into existing networks. Versatile installation options, including standard 86 box embedding and wall mounting, accommodate diverse architectural environments.Overall, the Fanvil Y501-Y Kenya SIP healthcare intercoms represent innovation and functionality in healthcare communication technology, revolutionizing patient care and safety standards.

Highlights

  • Support audio codec G.722 and Opus.
  • Support specific 433MHz wireless button
  • Features 2 SIP accounts and 6 antibacterial material detachable function buttons
  • Support HD audio with codec G.722 and Opus
  • Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
  • Built-in 1 short circuit input/output interface
  • IP54 waterproof and dustproof
  • Support PoE power supply
  • Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)

Features

Generic

  • 2 SIP Lines
  • Auto answer
  • HD Voice
  • PoE Enabled
  • Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
  • Intercom function
  • External Power Supply (Optional)

Intercom Function

  • Support customized DSS keys
  • Support wireless button (Optional)
  • Network Time Synchronization
  • Built-in Wi-Fi
    • 2.4G, 802.11 b/g/n
    • 5G, 802.11 a/n
  • Action URL / Active URL

Audio

  • Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
  • Wideband Codec : G.722, Opus
  • Duplex intercom with Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

  • Physical : 10/100 Mbps Ethernet
  • WIFI : 2.4G & 5G (Y501W-Y/Y501W-Y-E)
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static / DHCP / PPPoE
  • Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
  • Up to 10 wireless buttons supported
  • Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
  • Power : DC12V/1A or POE
  • Power Consumption (Adapter):
    • 0.94W~1.98W(Y501-Y/Y501-Y-E)
    • 1.42W~2.35W(Y501W-Y/Y501W-Y-E)
  • Power Consumption (PoE):
    • 1.48W~2.37W(Y501-Y/Y501-Y-E)
    • 1.99W~3.05W(Y501W-Y/Y501W-Y-E)
  • Housing material : ABS
  • 433 wireless button specification:
    • communication mode:FSK
    • working frequency:433MHZ
    • communication protocol:Ebelong1.1
  • Installation : Indoor installation
    • Standard 86 Box Embedded
    • Wall Mountable
  • Color : White
  • working temperature : -10 ~50 °C
  • Storage temperature : -20 ~ 50 °C
  • Relative humidity : 10% – 90%
  • N.W/CNT:3.97kg
  • G.W/CNT:4.4 kg
  • Equipment Dimension :
    • 87.56 x 87.56 x 30mm (Wall Mountable)
    • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
  • Packing Dimension : 234x168x44 mm
  • Outer CTN Dimension : 356x245x254mm (10pcs)
