Description

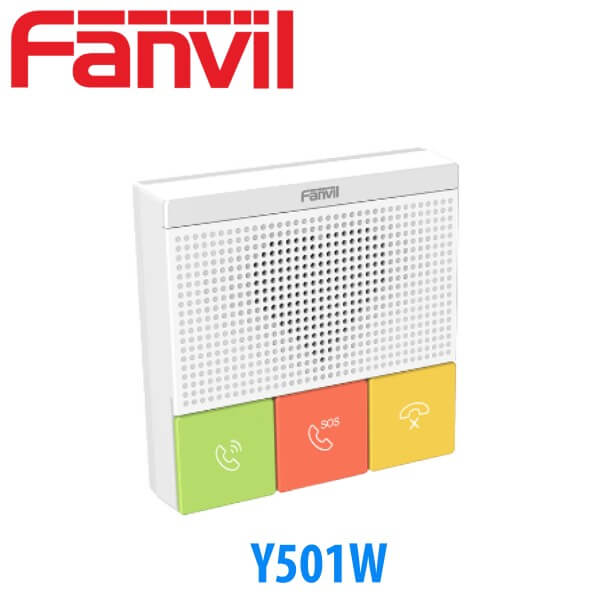

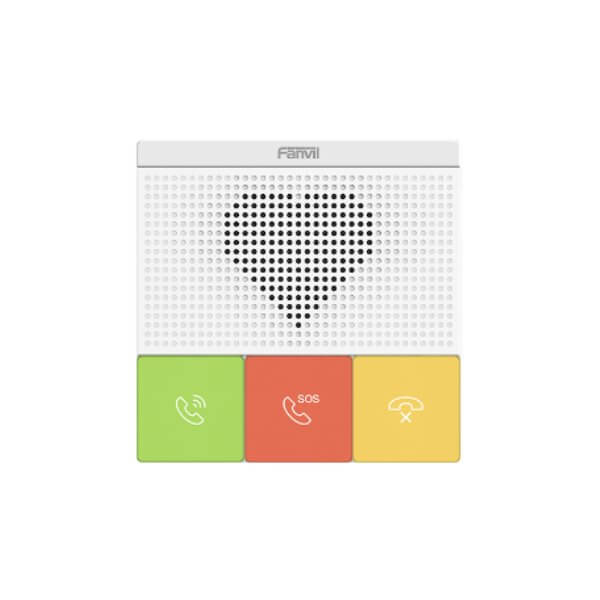

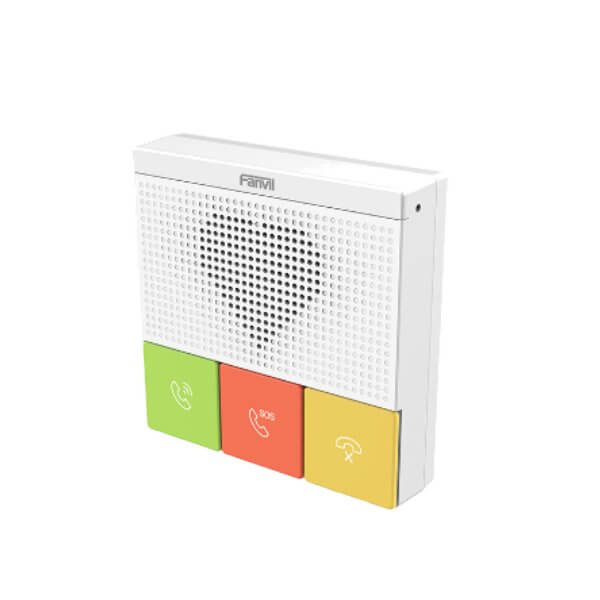

Fanvil Y501W SIP Intercom Kenya

The Fanvil Y501W Kenya SIP healthcare intercoms are designed for versatile communication needs in healthcare environments like home-based care and nursing houses. They ensure safety with emergency communication, security protection, and seamless broadcasting.With high-definition audio and support for up to 2 SIP accounts, these intercoms offer clear conversations and flexibility. Detachable DSS keys allow customizable control for various functions, enhancing operational efficiency.

Built to withstand healthcare environments, the Fanvil Y501W Kenya has an IP54 rating for waterproof and dustproof capabilities. Wi-Fi connectivity (Y501W/Y501W-E) enables seamless integration, while installation options include standard 86 box embedding and wall mountability for compatibility with different layouts.The Fanvil Y501W Kenya intercoms blend advanced technology and thoughtful design, serving crucial roles in patient care, emergency response, and collaboration among healthcare professionals.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501/Y501-E)
  • 1.42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501/Y501-E)
  • 1.99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT : 3.7kg
• G.W/CNT : 3.98kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
