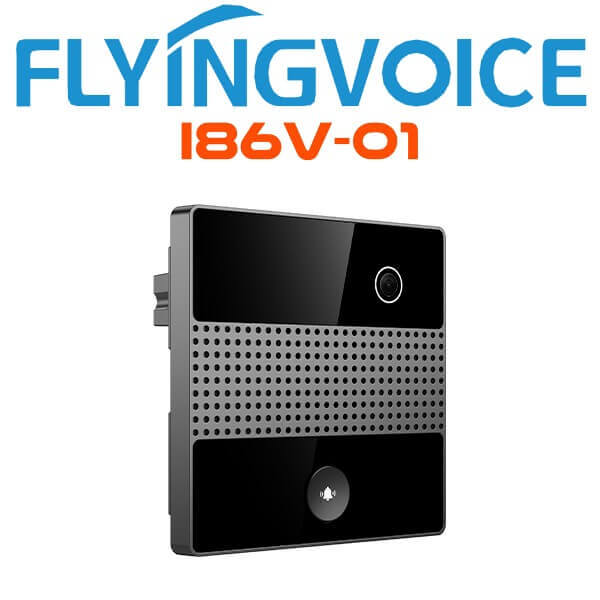

Flyingvoice i86v-01 Kenya



Flyingvoice i86v-01 Kenya

The Flyingvoice i86v-01 Kenya Video series offers a comprehensive selection comprising two distinct models: the i86V-01 and the i86V-02.

Category:

Description

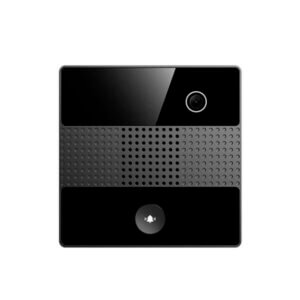

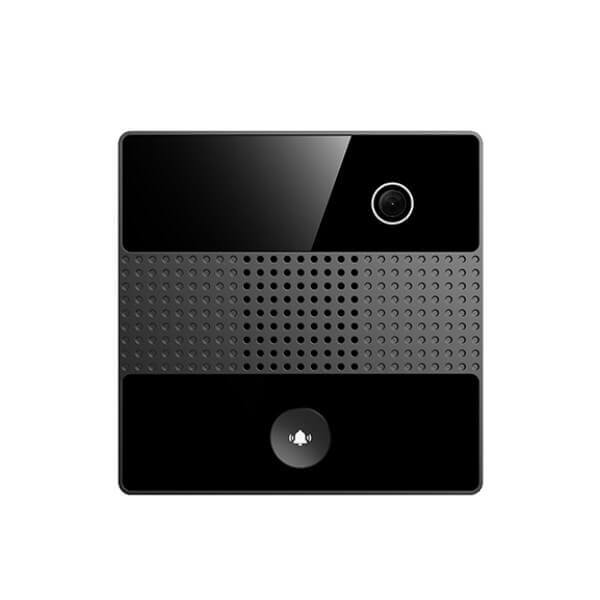

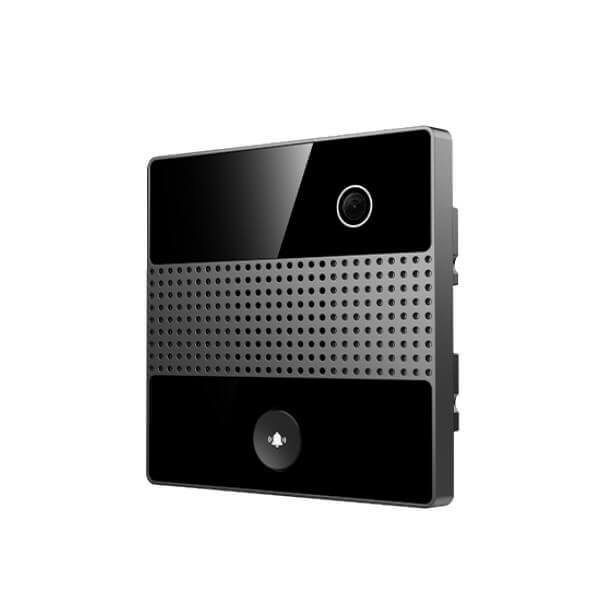

Flyingvoice i86v-01 SIP Intercom Kenya

The Flyingvoice i86v-01 Kenya Video series offers a comprehensive selection comprising two distinct models: the i86V-01 and the i86V-02. Tailored to fit the standard type-86 size, these models seamlessly integrate into standard type-86 bottom boxes, ensuring a flexible installation process. Distinguished by their robust features, the i86V series boasts an extensive temperature operating range from -40 to 75°C, along with an IP65 protection level, rendering them suitable for both indoor and outdoor environments, guaranteeing durability and reliability across diverse conditions.

Featuring a built-in 1080p HD camera and a speed dial button, the Flyingvoice i86v-01 Kenya facilitates effortless one-touch calling and video linkage functionalities. This user-friendly design enhances communication processes, specifically addressing the needs of industrial users across various scenarios. Whether deployed in factory settings, outdoor installations, or indoor facilities, the Flyingvoice i86v-01 Kenya epitomizes Flyingvoice’s commitment to delivering state-of-the-art communication solutions tailored to modern industrial demands. Its versatility, durability, and intuitive features position it as the preferred choice for businesses seeking reliable video communication systems adaptable to dynamic operational requirements.

Main Features :

International Standard Appearance Design The body of i86V adopts standard type-86 size design and supports standard type-86 bottom box, which is universal and can cover multiple installation scenarios.

Video Surveillance for Security Built-in 2.0 megapixel, HD 1080P camera with H.264 encoding, can be linked with FIP15G Plus.

Strong Compatibility Based on SIP protocol, it can easily access the mainstream IPPBX in the market and can be deployed and used in both LAN and WAN.

HD Voice and Dual MIC i86V is equipped with “dual MIC array”, providing users with clear and high-quality voice; It supports Opus and G.722 codec to provide users with abundant communication intercom functions.

High Protection Level Built with an IP65 waterproof-certified and dust-resistant plastic casing for secure indoor and outdoor operation in temperatures between -40 °C to 75 °C.

Easy Configuration and Effortless Management Integrated 802.11n 2.4GHz Wi-Fi and support for online management platforms such FACS, FRPS and FDC to configure your device more conveniently even for mass deployment in seconds.

Specifications

Product Description

Function Key 1 * Speed Dial

Size  86mm* 86mm*38.8mm(L*W*H)

PoE  Support

Power Supply  PoE or DC 12V/1A

Dual Microphone Array  Support

Speaker  1W 8Ω

Port and Slot

  • 1 RJ45 port : 100M Ethernet Port
  • 1 set of short-circuit input port : Rated voltage 12V
  • 1 set of short-circuit output port : NC/COM connected by default, Rated voltage 12V, Maximum voltage DC 30V/1A, AC 125V/0.3A
  • 1 power port : DC input 12V /1A
  • 1 expansion card slot for TF card

Wi-Fi  Built-in 2.4G Wi-Fi (For Configuration)

Protection Level  IP65

Operating Temperature  -40~75°C

Intercom Function

Basic Function

2 SIP lines, one-touch help, one-touch alarm, two-way intercom, real-time broadcast, short-circuit input/output control

IP Direct Dial  Support

Funtion Key  Support custom settings : speed dial, multicast, Action Url

Video Monitoring  Support RTSP video streaming

IP Broadcasting  Long-press 3s for voice broadcastAudio Features

Narrowband Encoding  G.711(A/u), iLBC, G.729A/B

Broadband Encoding  G.722, Opus

HD Voice

  • Duplex Intercom Acoustic Echo Cancel
  • Voice Activity Detection
  • Comfort Noise Generator
  • Packet Loss Concealment

DTMF  In-band, RFC 2833, SIP infoVideo Features

Pixel  2.0 mega pixel

Maximum Resolution  1920H*1080V

Video Encoding  H.264

View Angle  Diagonal : 113°, Horizontal : 97°, Vertical : 58°

Network Features

Network Speed  10/100Mbps Ethernet

IP Mode  IPv4/IPv6/IPv4&IPv6

IP Acquisition Method  Static IP setting, Dynamic DHCP acquisition(Default)

Network Security

  • Support DSCP, 802.1p QoS
  • Link layer discovery protocol
  • VPN:OpenVPN
  • Support SRTP, TLS call encryption
  • Support IEEE802.1x media access control

Time Synchronization  Support SNTP

Configuration & Maintenance

Automated Deployment

  • TR069 network management(TR104/TR106)
  • FTP/TFTP/HTTP/HTTPS auto configuration
  • Support FACS Cloud Network Management Access
  • Support Flyingvoice FRPS redirection
  • DHCP Option66

Management and Maintenance

  • Support Web configuration
  • Support factory reset, reboot
  • Support packet capture and system log export

IP-PBX Features

  • Server-based recording capabilities
  • Outbound calls

Others

Package Contents

  • i86V-01/ i86V-02 * 1
  • Quick Installation Guide * 1
  • Connector * 1
  • Screw Driver * 1, Screws*2
  • Qty/CTN : 20 PCS
  • N.W/CTN : 4.18 kg
  • G.W/CTN : 4.85 kg
  • Gift box size : 137mm*126mm*64mm
  • Carton size : 340mm*268mm*298mm
