Description

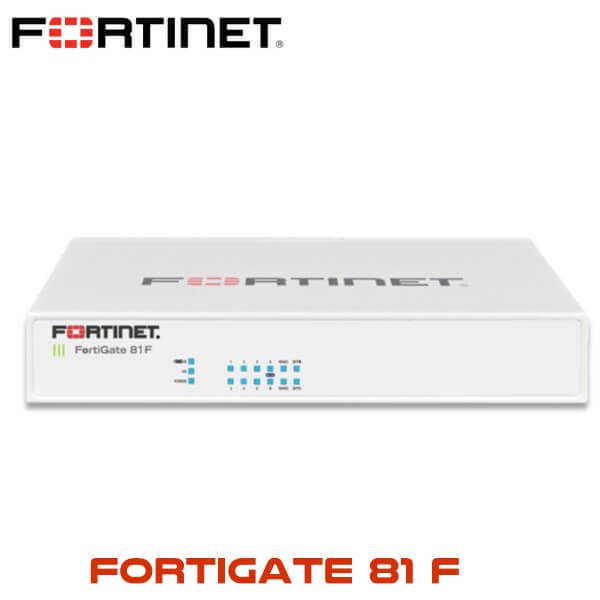

Fortigate81F Firewall Kenya
The Fortigate81F Kenya Next-Generation Firewall is the perfect choice for creating secure networks in distributed enterprise locations and revamping WAN architecture at any level. With a wide range of AI/ML-based security services provided by FortiGuard and our integrated Security Fabric platform, the Fortigate81F Kenya delivers synchronized, automated, and comprehensive protection against threats in any situation. FortiGate stands out in the industry as the first NGFW solution to combine SD-WAN and zero-trust network access (ZTNA) enforcement, all powered by a single operating system. The Fortigate81F Kenya efficiently handles, verifies, and streamlines user access to applications, guaranteeing a consistent, seamless, and optimized user experience.
Fortigate81F Kenya Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
- Security-Driven Networking with FortiOS delivers converged networking and security.
- Unparalleled Performance with Fortinet’s patented SoC processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.
Hardware Features
Superior Wireless Coverage
A built-in dual-band, dual-stream access point is integrated on the Fortigate81F Kenya which provides the industry’s latest high-speed WiFi-6 (802.11ax) wireless access.
Trusted Platform Module (TPM)
The Fortigate81F Kenya features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Bypass WAN/LAN Mode
The Fortigate81F Kenya offers a pair of bypass ports that help organizations avoid network communication interruption due to device faults and improve network reliability.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45 PoE/+ Ports | — |
| GE RJ45 PoE/+ FortiLink Ports (Default) | — |
| Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) | — |
| Wireless Interface | — |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1x 128 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 1.4 Gbps |
| NGFW Throughput 2, 4 | 1 Gbps |
| Threat Protection Throughput 2, 5 | 900 Mbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte, UDP) | 3.23 μs |
| Firewall Throughput (Packet per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45 000 |
| Firewall Policies | 5000 |
| IPsec VPN Throughput (512 byte)1 | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg HTTPS)3 | 715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 700 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS)3 | 100 000 |
| Application Control Throughput (HTTP 64K)2 | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total /Tunnel) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
