Description

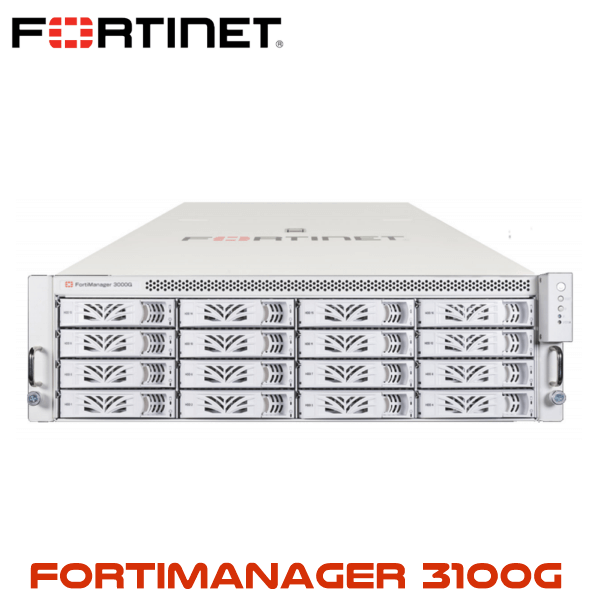

FortiManager3100G Network Management Platform Kenya
The Fortinet FortiManager3100G Kenya serves as a robust centralized management platform meticulously designed to streamline and enhance the administration of extensive Fortinet security deployments. Tailored for high-performance environments, the FortiManager3100G enables network administrators to efficiently manage complex infrastructures.
Through its unified interface, often referred to as a “single pane of glass,” the platform offers comprehensive visibility and centralized control over the entire network. It facilitates the streamlined provisioning of security devices and policies while incorporating advanced automation tools that optimize management processes and minimize manual intervention. Consequently, FortiManager3100G empowers organizations to establish a more secure, agile, and scalable network infrastructure.
A significant advantage of the FortiManager3100G is its scalability, which simplifies the management of numerous Fortinet devices and virtual domains (VDOMs). Furthermore, it provides advanced reporting capabilities that generate detailed insights into network security, performance, and compliance. The platform also supports integration with other security solutions, such as FortiAnalyzer and FortiGate, enabling a cohesive and unified approach to security management across all Fortinet products.
Specifications:
| Capacity and Performance | |
| Devices/VDOMs (Default)Â | 4000 |
| Devices/VDOMs (Maximum)Â | 8000 |
| Sustained Log Rates | 150 |
| GB/ day | 10 |
| Hardware Specifications | |
| Storage Capacity | 64 TB (16 x 4TB) |
| Usable Storage (after RAID) | 56 TB |
| RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
| Default RAID Level | 50 |
| Hardware Form Factor | 3 RU Rackmount |
| Total Interfaces | 2 x GbE RJ45 ports, 2x 25GbE SFP28 ports |
| Console Port | DB‑9 |
| Removable Hard Drives | ✓ |
| Redundant Hot Swap Power Supplies | ✓ |
| Trusted Platform Module (TPM) | ✓ |
| Dimensions | |
| Height x Width x Length (inches) | 5.2 x 17.2 x 25.5 |
| Height x Width x Length (cm) | 13.0 x 44.0 x 65.0 |
| Weight | 69.6 lbs (31.57 kg) |
| Environment | |
| AC Power Supply | 100‑127V~/10A, 200‑240V~/5A Hz |
| Power Consumption (Average / Maximum) | 395 W / 510 W |
| Heat Dissipation | 1740.19 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | ‑40°F to 158°F (‑20°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 13 123 ft (4000 m) |
| Compliance | |
| Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
