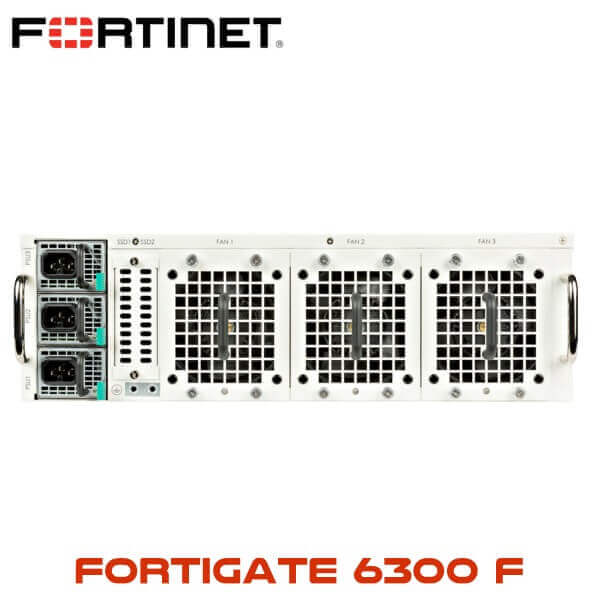

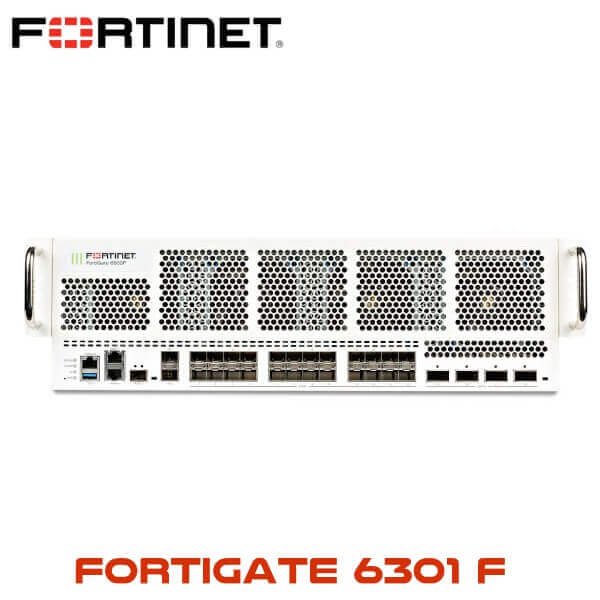

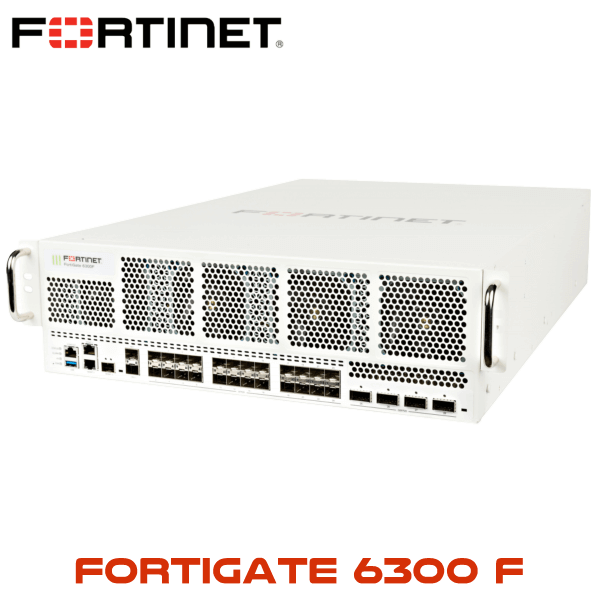

Fortinet FG-6300F/FG-6301F Kenya



Fortinet FG-6300F/FG-6301F Kenya

The Fortinet firewall FG-6000F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network’s performance. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Category:

Description

Fortinet FortiGate-6300F/FortiGate-6301F Nairobi

The new Fortinet Firewall FortiGate 6000 series NGFW appliances feature the latest Fortinet innovation, to deliver leading edge security, performance, and connectivity for the most demanding network needs. The 6000 series combines unprecedented threat protection and SSL inspection performance in an easy to manage, compact appliance.

Fortinet FG-6300F/ Fortinet FG-6301F in Nairobi, Kenya are built to ease the processing of large amounts of encrypted traffic and content-rich data, as well as enhance optimized user experiences. The digital attack surface has spawned new, complex forms of attacks that require advanced protection to be applied at anytime, anywhere the threat is discovered. Today’s next-generation firewalls (NGFWs) must reliably handle large volumes of network and cloud traffic, provide consolidated advanced security in a smaller, more efficient physical footprint, and accommodate new security requirements such as extensive inspection of encrypted traffic for sophisticated malware without impacting performance.

Fortinet FG-6300F/ FG-6301F  Features :

  • Next Generation Firewall (NGFW)

    • Fortinet FG-6300/ FG-6301F reduces complexity and maximizes your ROI by integrating threat protection security capabilities into a single high performance network security appliance, powered by Fortinet’s Security Processing Unit (SPU). It offers full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location. The robust firewall protects your network system against network exploitable vulnerabilities with Industry validated IPS , resulting in security effectiveness, low latency and optimized network performance. It automatically block threats on decrypted traffic using the Industry’s highest SSL inspection performance, including the latest TLS 1.3 standard with mandated ciphers, and also proactively block newly discovered sophisticated attacks in real-time with AI-powered FortiGuard Labs and advanced threat protection services included in the Fortinet Security Fabric.
  • Security :

    • Fortinet FG-6300F/ FG-6301F identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement, then protects the network system against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic. It also detects known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services. The Fortinet FG-6300F/ FG-6301F proactively blocks unknown sophisticated attacks in real-time with the Fortinet Security Fabric integrated AI-powered FortiSandbox.
  • Performance

    • Fortinet FG-6300F/ FG-6301F is built for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency. It provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection.
  • Certification

    • Fortinet FG-6300F/ FG-6301F has been independently tested and validated for best security effectiveness and performance. It has received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives.
  • Networking

    • Fortinet FG-6300/ FG-6301F incorporates Application aware routing with in-built SD-WAN capabilities to achieve consistent application performance and the best user experience. It has built-in advanced routing capabilities which deliver high performance with encrypted IPSEC tunnels at scale.
  • Management

    • Fortinet FG-6300/ FG-6301F includes a management console that is effective and simple to use, which provides a comprehensive network of automation & visibility. It provides Zero Touch Provisioning leveraging Single Pane of Glass Management powered by the Fabric Management Center, and uses a set of predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture.
  • Security Fabric

    • Fortinet FG-6300/ FG-6301F enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation. It automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products.
  • IPS

    • Fortinet FG-6300F/ FG- 6301F uses its purpose-built security processors delivering industry validated IPS performance with high throughput and low latency. It deploys virtual patches at the network level to protect against network exploitable vulnerabilities and optimize network protection time. Deep packet inspection at wire speeds offers unparalleled threat visibility into network traffic including traffic encrypted with the latest TLS 1.3.

Fortinet FG-6300F  Features Specifications:

FG-6300F/6301F FG-6500F/6501F
Interfaces and Modules
40/100 GE QSFP28 Slots 4
1/10/25 GE SFP28 Slots 24
10 GE SFP+ Slots 3
GE RJ45 Management Ports 2
USB Ports 1
Console Port 1
Internal Storage 2 TB NVMe (for 6301F and 6501F only)
Included Transceivers 2x SFP+ (SR 10 GE)
System Performance and Capacity
Firewall Throughput
(1518 / 512 / 64 byte, UDP)
239 / 238 / 135 Gbps 239 / 238 / 135 Gbps
Firewall Latency (64 byte, UDP) 5 μs 5 μs
Firewall Throughput (Packet per Second) 202.5 Mpps 202.5 Mpps
Concurrent Sessions (TCP) 120 Million 200 Million
New Sessions/Sec (TCP) 2 Million 3 Million
Firewall Policies 200,000 200,000
IPsec VPN Throughput (512 byte) 130 Gbps 160 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 16,000 16,000
Client-to-Gateway IPsec VPN Tunnels 90,000 90,000
SSL-VPN Throughput TBA TBA
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
30,000 30,000
SSL Inspection Throughput (IPS, HTTP) 90 Gbps 130 Gbps
Application Control Throughput (HTTP 64K) 150 Gbps 220 Gbps
CAPWAP Throughput (1444 byte, UDP) N/A N/A
Virtual Domains (Default / Maximum) 10 / 500
Maximum Number of Switches Supported N/A
Maximum Number of FortiAPs
(Total / Tunnel Mode)
N/A
Maximum Number of FortiTokens 20,000
Maximum Number of Registered FortiClients 100,000
High Availability Configurations Supported
System Performance – Optimal Traffic Mix
IPS Throughput 212 Gbps 230 Gbps
System Performance – Enterprise Traffic Mix
IPS Throughput 110 Gbps 170 Gbps
NGFW Throughput 90 Gbps 150 Gbps
Threat Protection Throughput 60 Gbps 100 Gbps
Dimensions and Power
Height x Width x Length (inches) 5.20 x 17.20 x 26.18 5.3 x 17.2 x 27.3
Height x Width x Length (mm) 132 x 437 x 665 133 x 437 x 694
Weight 67.68 lbs (30.7 kg) /
69.00 lbs (31.3 kg)
78.26 lbs (35.5 kg) /
79.59 lbs (36.1 kg)
Form Factor 3 RU
AC Power Supply 100-240V AC, 50-60 Hz
Power Consumption (Average / Maximum) (977 / 1,217 W) /
(977 / 1,237 W)
(1,308 / 1,548 W) /
(1,328 / 1,568 W)
Current (Maximum) 30A@100VAC, 20A@240VAC
Heat Dissipation 4,153 / 4,221 BTU/h 5,282 / 5,350 BTU/h
Redundant Power Supplies 2+1 Redundant, Hot Swappable
Operating Environment and Certifications
Operating Temperature 32-104°F (0-40°C)
Storage Temperature -31-158°F (-35-70°C)
Humidity 10-90% non-condensing
Noise Level 57.43 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Interfaces

  • Console Port
  • USB Port
  • 2x GE RJ45, 1x 1/10 GE SFP Management Ports
  • 2x 10 GE SFP HA Slots
  • 24x 1/10/25 GE SFP28 Slots
  • 4x 40/100 GE QSFP28 Slots
