Description

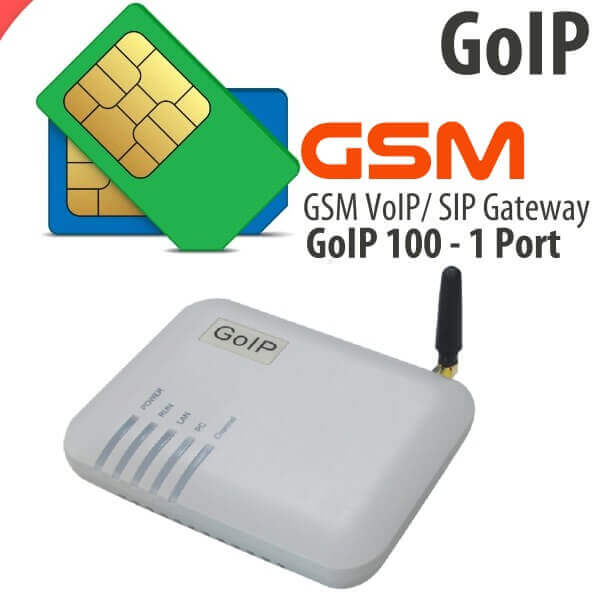

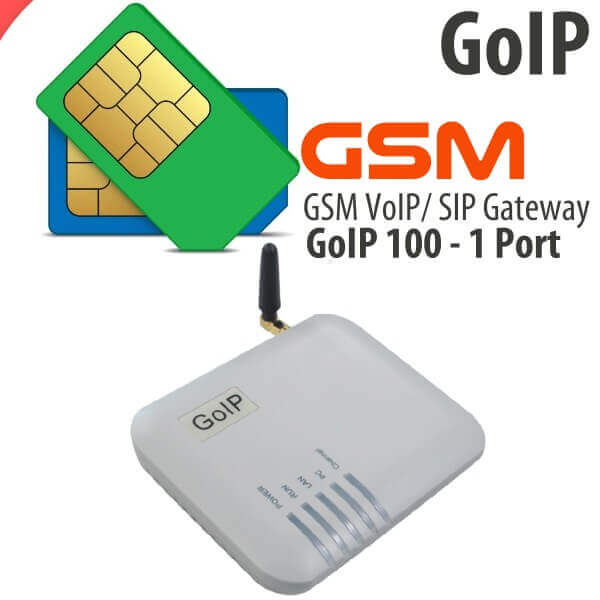

GoIP100 single Port GSM Gateway Kenya

 The Grey, magnificent GoIP100 Single Port GSM Gateway simply connects your GSM network to your VoIP network, thus enabling you to achieve both uplink and downlink calls between GSM and VoIP networks. Furthermore, GoIP 1 Port GSM Gateway enables transmission of the caller number between networks. It works perfectly with key phone systems and IP-PBX to provide users with GSM communications. GoIP100 Single Port GSM Gateway has been configured to enable maximum compatibility with many leading  professional platforms, thus making it perfect for deployment in multi – vendor open architecture VoIP networks. Compared  to the conventional PSTN, GoIP100 Single Port GSM Gateway enables you to cut down on operational and maintenance costs.

The GoIP100 Single Port VoIP gateway is a GSM over IP which has one GSM and VoIP channel. It is a replacement form of the analog line with gateway. It has a GSM port that enables call termination from VoIP to GSM and origination from GSM to VoIP. A user can make only 1 call using the GoIP100 Single Port GSM Gateway. It uses QoS mechanism to maintain high quality audio over a fast and busy internet line as well as slow speed network. It is a highly reliable device, offering excellent performance, superb voice quality, quick speed, user – friendly features, and is available at a pocket – friendly and affordable price.

GoIP100 Single Port GSM Gateway is equipped with rich SIP capabilities and H.323 protocols, making it a highly flexible device. It uses a bi – directional password authentication or call authorization and trust list authentication  to eliminate the risks of charge losses.  The GoIP100 Single Port GSM Gateway offers its users an excellent quality voice and powerful advanced features at a pocket – friendly price, making it the best solution for system integrators, traffic operators, and softswitch manufacturers.

GoIP100 Single Port GSM Gateway Features:

G168 Echo Cancellation :

 The magnificent GoIP100 Single Port GSM Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the GoIP user is making any communications.

Crystal Clear Sounds :

The  GoIP100 Single Port GSM Gateway offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations.

 Smart LED Alerts :

 The GoIP100  Single Port GSM Gateway is equipped with smart LEDs which alerts the user about the gadget’s power status, and other important functions such as WAN, PC, and GSM.

 SIP V.2 Convenience :

 The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. The GoIP100 Single Port GSM Gateway can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server.

You can therefore easily connect your GoIP100 Single Port GSM Gateway to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The GoIP100 Single Port GSM Gateway is based on SIP v2 (RFC 3261, 3162, 3163,3164) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

QoS Mechanism :

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very essential in eliminating delays in the GoIP100 Single Port GSM Gateway whenever there are high volumes of traffic.

 Technical Report (TR – 069) :

 This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the GoIP100 Single Port GSM Gateway uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics.

The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and devices such as the GoIP100 Single Port GSM Gateway.

Automated  – Provisioning – TFTP/HTTP/HTTPS :

The technologically advanced GoIP100 Single Port GSM Gateway has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

The Management Platform :

The GoIP100 Single Port GSM Gateway delivers convenience, reliability and seamless integration through its Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come up during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain, but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in upgrade, maintenance and operational costs. The GoIP100 Single Port GSM Gateway is, thus, a perfect solution regardless of the variations in your company’s needs.

Flexibility :

The GoIP100 Single Port GSM Gateway pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

Why the GoIP100 Single Port GSM Gateway?

• Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
• Single or Multiple Server Registrations
• Two 10/100 Ethernet for WAN / LAN connections
• GSM module for making GSM calls
• Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
• VLAN and QoS support
• NAT Transversal and Router functions
• Voice prompts, HTTP Web, Auto Provision support for configuration and updates
• Highly stable embedded Linux operating system in high performance ARM 9 Processor
• Dynamic selection of codec
• Advanced jitter buffer
• Automatic traversal of NAT and firewall
• VLAN / Qos

GoIP100 single Port GSM Gateway Specifications.

• Protocols
  • TCP/IP V4 (IP V6 automatic adaptive)
  • Dual VoIP protocols: ITU-T H.323 V4, IETF SIP V2.0
  • Multiple Codecs: ITU-T G.711 Alaw/ULaw, G.729A, G.729AB, G.723.1 and GSM
  • H.245 V7
  • H.2250 V4
  • H.235 (MD5, HMAC-SHA1)
  • NAT
  • STUN
  • RFC1889 real-time digital transmission protocol
  • Network Management Protocol (NMP)
  • PPP Authentication Protocol (PAP)
  • Internet Control Message Protocol (ICMP)
  • TFTP
  • PPPoE Dial Up
  • Hypertext Transfer Protocol (HTTP)
  • Dynamic Host Configuration Protocol (DHCP)
  • Domain Name System (DNS)
  • User Account Authentication (via MD5)
  • Proprietary Relay Protocol (Avoiding VoIP Blockings)
• Hardware Features
  • ARM processor
  • Two 10/100MB Ethernet ports (IEEE 802.3 standard) with status LEDs
  • DSP for voice signal processing
  • Quadband GSM module (850M 900M, 1800M and 1900M)
  • External Antenna (Internal Antenna option for selected models)
• Software Features
  • LINUX OS
  • PPPoE Dial Up
  • Built-in SIP Proxy (Simplified)
  • Built-in Web Server for device configuration
  • DHCP client & Server
  • QoS (VLAN)
  • VPN (PPTP)
  • Router function
  • Online firmware upgrade
  • Call Management and Routing
  • Remote Control Mechanism for remote technical support
  • Proprietary Auto Provisioning Mechanism
  • Short Messages (SMS) support (standalone and server-based)
  • Remote SIM function
